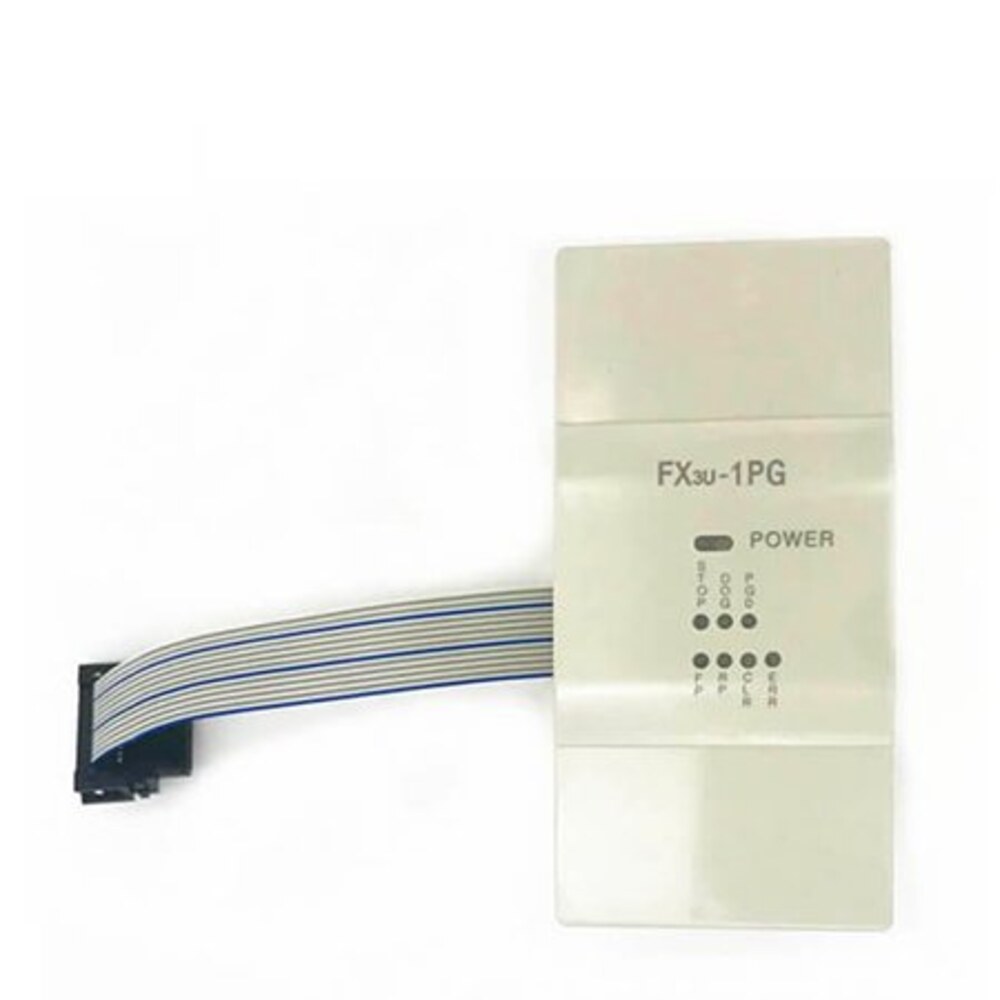

Mitsubishi Electric FX3U-1PG PLC Extension Module
- Brand
- Mitsubishi Electric
- Model
- FX3U-1PG
- GEARWELL SKU
- GWP-000001099
- Category
- Industrial Automation Parts
Key specifications
- Weight
- Approx. 0.2 kg
- Output type
- Transistor
- Number of control axes
- 1 axis
- Product type
- Pulse output positioning module
- Pulse output frequency
- 1 Hz to 200 kHz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX3U-1PG is a MELSEC-F special function block for independent 1-axis positioning with a 200 kHz transistor pulse output. It occupies 8 I/O points on the PLC, draws 150 mA from the PLC's 5 V DC supply plus 40 mA from an external 24 V DC supply, and wires through M3 screw terminals. Confirm the PLC series and the drive it will control when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX3U-1PG PLC Extension Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX3U-1PG |
| Category | Industrial Automation Parts |
| Weight | Approx. 0.2 kg |
| Output type | Transistor |
| Number of control axes | 1 axis |
| Product type | Pulse output positioning module |
| Pulse output frequency | 1 Hz to 200 kHz |
| Occupied I/O points | 8 |
| Positioning method | Incremental and absolute |
| Drive signal voltage | 5 to 24 V DC |
