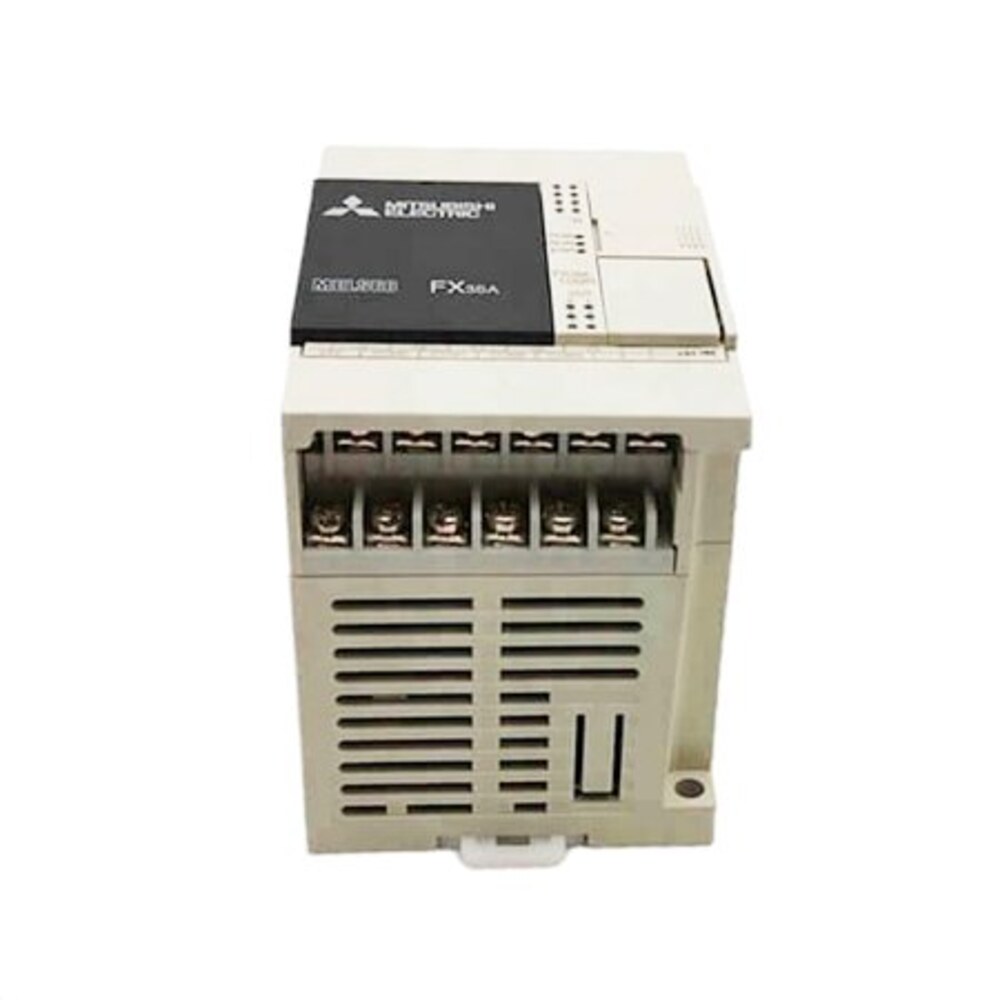

Mitsubishi Electric FX3SA-10MT-CM PLC Controller Module
- Brand
- Mitsubishi Electric
- Model
- FX3SA-10MT-CM
- GEARWELL SKU
- GWP-000000721
- Category
- Industrial Automation Parts
Key specifications
- Series
- FX3SA
- Dimensions (W x H x D)
- 60 x 90 x 75 mm
- Output type
- Transistor (sink)
- Product type
- MELSEC-F programmable controller main unit
- Integrated I/O
- 10 points
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX3SA-10MT-CM is a MELSEC-F FX3SA series compact PLC main unit with 10 built-in I/O points: 6 inputs and 4 transistor (sink) outputs, with an AC power supply and 24 V DC sink/source inputs. Mitsubishi's hardware manual states that the FX3SA is based on the FX3S and lists FX3S-10MT/ES as the matching FX3S model, with specifications not stated separately being the same as the FX3S. Check the full order code on the nameplate when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX3SA-10MT-CM PLC Controller Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX3SA-10MT-CM |
| Category | Industrial Automation Parts |
| Series | FX3SA |
| Dimensions (W x H x D) | 60 x 90 x 75 mm |
| Output type | Transistor (sink) |
| Product type | MELSEC-F programmable controller main unit |
| Integrated I/O | 10 points |
| Integrated inputs | 6 points |
| Integrated outputs | 4 points |
