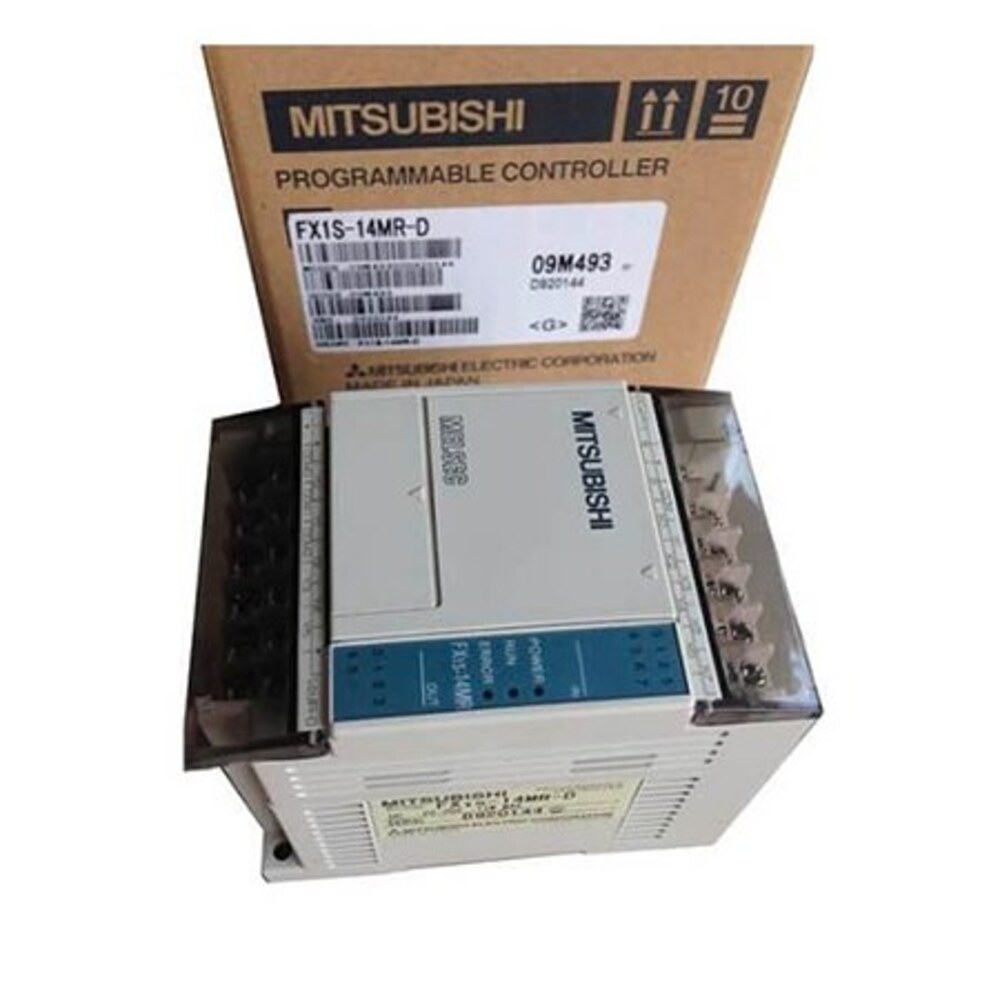

Mitsubishi Electric FX1S-14MR-D 14-I/O Relay PLC, 24 V DC
- Brand
- Mitsubishi Electric
- Model
- FX1S-14MR-D
- GEARWELL SKU
- GWP-000003757
- Category
- Industrial Automation Parts
Key specifications
- Built-in I/O points
- 14
- Built-in program memory
- 2,000-step EEPROM; no memory backup required
- Output type
- Relay
- Input points
- 8
- Rated power supply
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX1S-14MR-D is a MELSEC-F FX1S series compact PLC main unit with 14 built-in I/O points: 8 inputs and 6 relay outputs. The FX1S stores up to 2,000 program steps in its built-in EEPROM, so no memory backup battery is needed for the program. Mitsubishi's English hardware manual lists the 24 V DC-powered relay version as FX1S-14MR-DS; confirm the full order code and supply voltage on the nameplate when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX1S-14MR-D 14-I/O Relay PLC, 24 V DC |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX1S-14MR-D |
| Category | Industrial Automation Parts |
| Built-in I/O points | 14 |
| Built-in program memory | 2,000-step EEPROM; no memory backup required |
| Output type | Relay |
| Input points | 8 |
| Rated power supply | 24 V DC |
| Product type | MELSEC-F programmable controller |
| Output points | 6 |
| Maximum program capacity | 2,000 steps, including comments and file registers |
