Mitsubishi Electric FR-A8NC Interface Module
- Brand
- Mitsubishi Electric
- Model
- FR-A8NC
- GEARWELL SKU
- GWP-000001378
- Category
- Industrial Automation Parts
Key specifications
- Network topology
- Bus
- Product type
- CC-Link communication option
- Maximum connectable inverters
- 42
- Compatible drive family
- FREQROL FR-A800
- Remote I/O points
- 64 RX / 64 RY
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

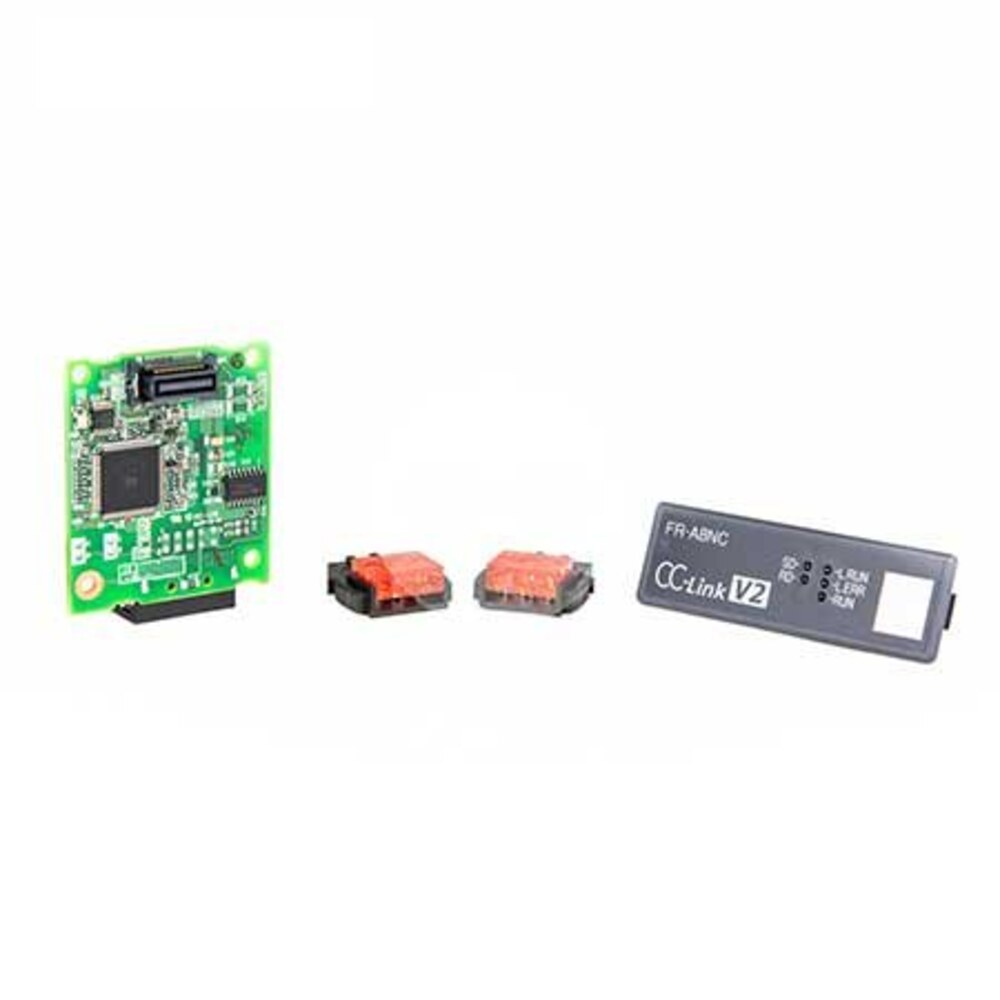

The Mitsubishi Electric FR-A8NC is a plug-in option that adds a CC-Link interface to FR-A800 series inverters, letting a programmable controller run and monitor the drive as a remote device station. It is compatible with CC-Link Ver.1.10 and Ver.2; under Ver.2 it can use double, quadruple or octuple settings to enlarge the remote register area. Up to 42 inverters can be connected to one master station, and the transmission speed is selectable at 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps or 10 Mbps. The board fits with a one-touch connector, takes its power from the inverter and carries a built-in terminating resistor selection switch.
Technical reference
| Product name | Mitsubishi Electric FR-A8NC Interface Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FR-A8NC |
| Category | Industrial Automation Parts |
| Network topology | Bus |
| Product type | CC-Link communication option |
| Maximum connectable inverters | 42 |
| Compatible drive family | FREQROL FR-A800 |
| Remote I/O points | 64 RX / 64 RY |
| Communication speed | 10 Mbit/s |
| Cyclic communication | Supported |
