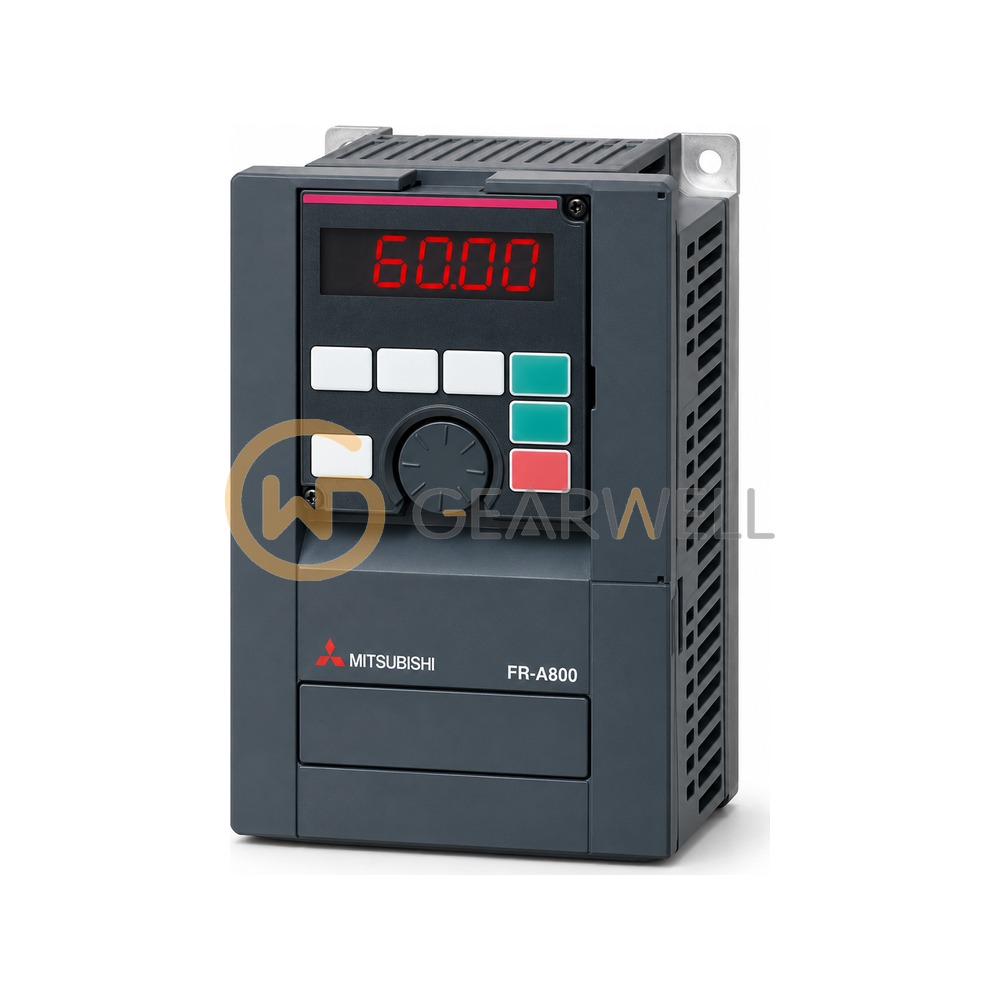

Mitsubishi Electric FR-A840-0.75K-1 Inverter (variable frequency drive)
- Brand
- Mitsubishi Electric
- Model
- FR-A840-0.75K-1
- GEARWELL SKU
- GWP-000013514
- Category
- Variable Frequency Drives
Key specifications
- Approx. mass
- 3.0 kg
- Rated current (ND)
- 2.5 A
- Rated capacity (ND)
- 1.9 kVA
- Rated current (SLD)
- 3.8 A
- Protective structure
- Enclosed type (IP20)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric FR-A840-0.75K-1 is a standard FR-A800 series inverter for the 400 V class, written with its ND motor capacity 0.75K (rating code 00038) and the FM type suffix -1. In the initial ND rating it is sized for a 0.75 kW motor at 2.5 A rated current, with an overload capacity of 150% for 60 s and 200% for 3 s at 50°C. Alternative ratings are SLD 1.5 kW / 3.8 A, LD 1.5 kW / 3.5 A and HD 0.4 kW / 1.5 A. It runs from a three-phase 380 to 500 V supply at 50 Hz/60 Hz, comes as an enclosed IP20 unit and weighs about 3.0 kg.
Technical reference
| Product name | Mitsubishi Electric FR-A840-0.75K-1 Inverter (variable frequency drive) |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FR-A840-0.75K-1 |
| Category | Variable Frequency Drives |
| Approx. mass | 3.0 kg |
| Rated current (ND) | 2.5 A |
| Rated capacity (ND) | 1.9 kVA |
| Rated current (SLD) | 3.8 A |
| Protective structure | Enclosed type (IP20) |
| Overload current rating (ND) | 150% 60 s, 200% 3 s |
| Applicable motor capacity (ND) | 0.75 kW |
| Rated input AC voltage/frequency | Three-phase 380 to 500 V 50/60 Hz |
