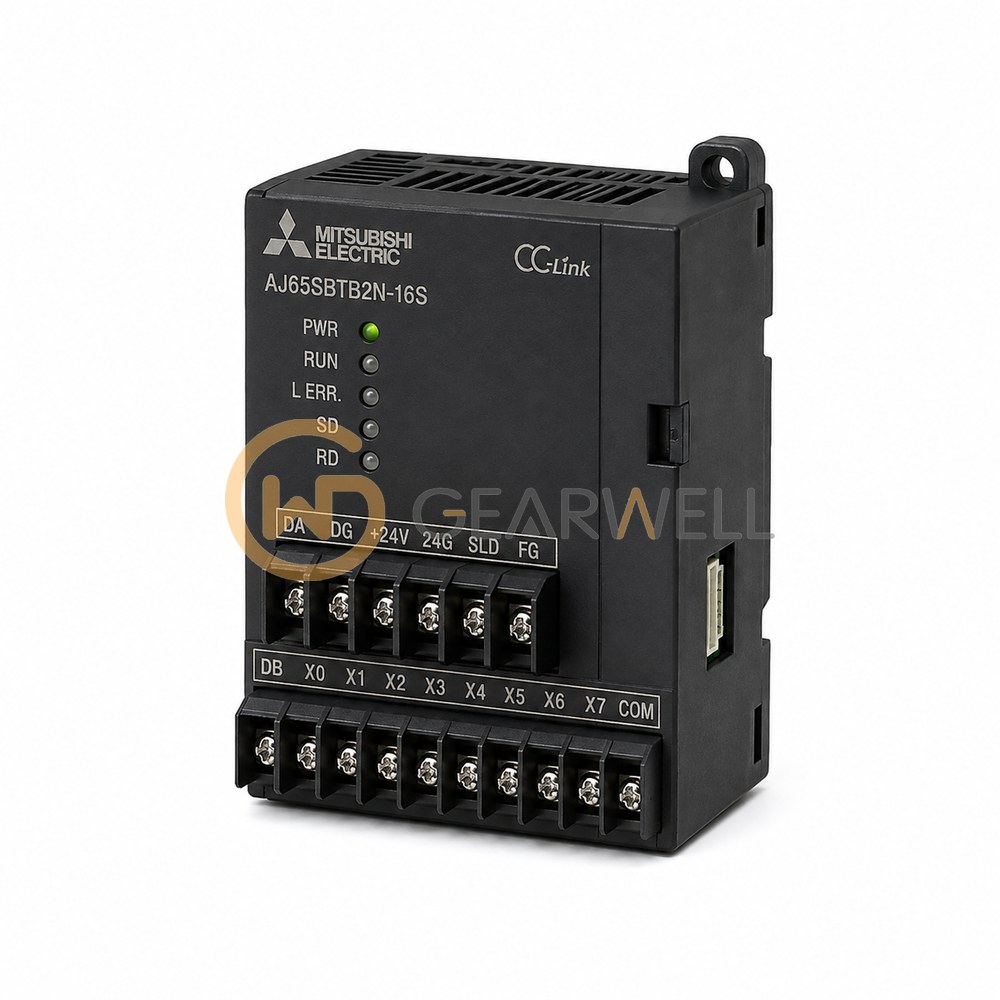

Mitsubishi Electric AJ65SBTB2N-16S Module
- Brand
- Mitsubishi Electric
- Model
- AJ65SBTB2N-16S
- GEARWELL SKU
- GWP-000004349
- Category
- Industrial Automation Parts
Key specifications
- Maximum load current
- 0.6 A per point; 4.8 A per common
- Rated load voltage
- 100 to 240 V AC, 50/60 Hz
- Output points
- 16
- Product type
- CC-Link remote triac output module
- Station type
- Remote I/O station
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Mitsubishi Electric AJ65SBTB2N-16S is a CC-Link compact type remote I/O module with 16 triac outputs for AC loads. Outputs are rated 100 to 240VAC at 0.6A per point and 4.8A per common, with a CR absorber as surge suppressor. The module occupies one station with a 32-point assignment, of which 16 points are used. It takes a 24VDC module supply at 85mA or lower, wires to a 34-point terminal block for I/O, mounts on a DIN rail and weighs 0.35kg.
Technical reference
| Product name | Mitsubishi Electric AJ65SBTB2N-16S Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | AJ65SBTB2N-16S |
| Category | Industrial Automation Parts |
| Maximum load current | 0.6 A per point; 4.8 A per common |
| Rated load voltage | 100 to 240 V AC, 50/60 Hz |
| Output points | 16 |
| Product type | CC-Link remote triac output module |
| Station type | Remote I/O station |
| Module supply | 20.4 to 26.4 V DC |
| Output response time | 1 ms ON; 1 ms + 0.5 cycle OFF |
| Occupied stations | 1 |
