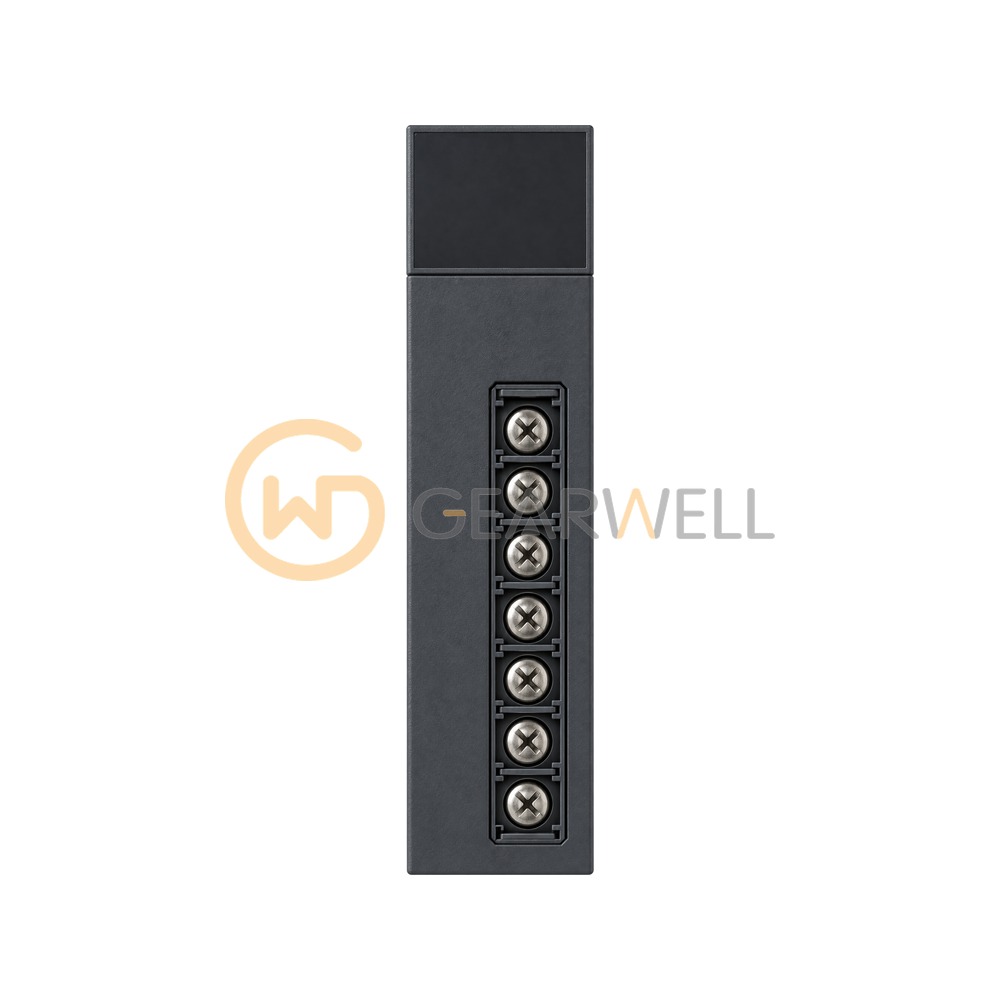

Mitsubishi Electric A1SJ51T64 MELSEC-A (AnS) / MELSEC-I/OLINK MELSEC-I/OLINK remote I/O system master module
- Brand
- Mitsubishi Electric
- Model
- A1SJ51T64
- GEARWELL SKU
- GWP-000015022
- Category
- Industrial Communication
Key specifications
- Mass
- 0.30 kg
- Communication speed
- 38400 bps
- Remote I/O stations
- 16 per master
- Transmission distance
- 200 m total
- Max. control I/O points
- 128 (when X and Y use same numbers)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Mitsubishi Electric A1SJ51T64 MELSEC-A (AnS) / MELSEC-I/OLINK MELSEC-I/OLINK remote I/O system master module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | A1SJ51T64 |
| Category | Industrial Communication |
| Mass | 0.30 kg |
| Communication speed | 38400 bps |
| Remote I/O stations | 16 per master |
| Transmission distance | 200 m total |
| Max. control I/O points | 128 (when X and Y use same numbers) |
| External supply current | 90 mA (TYP. 24 V DC) |
| External supply voltage | 21.6-27.6 V DC |
| 5 V DC internal current consumption | 115 mA |
