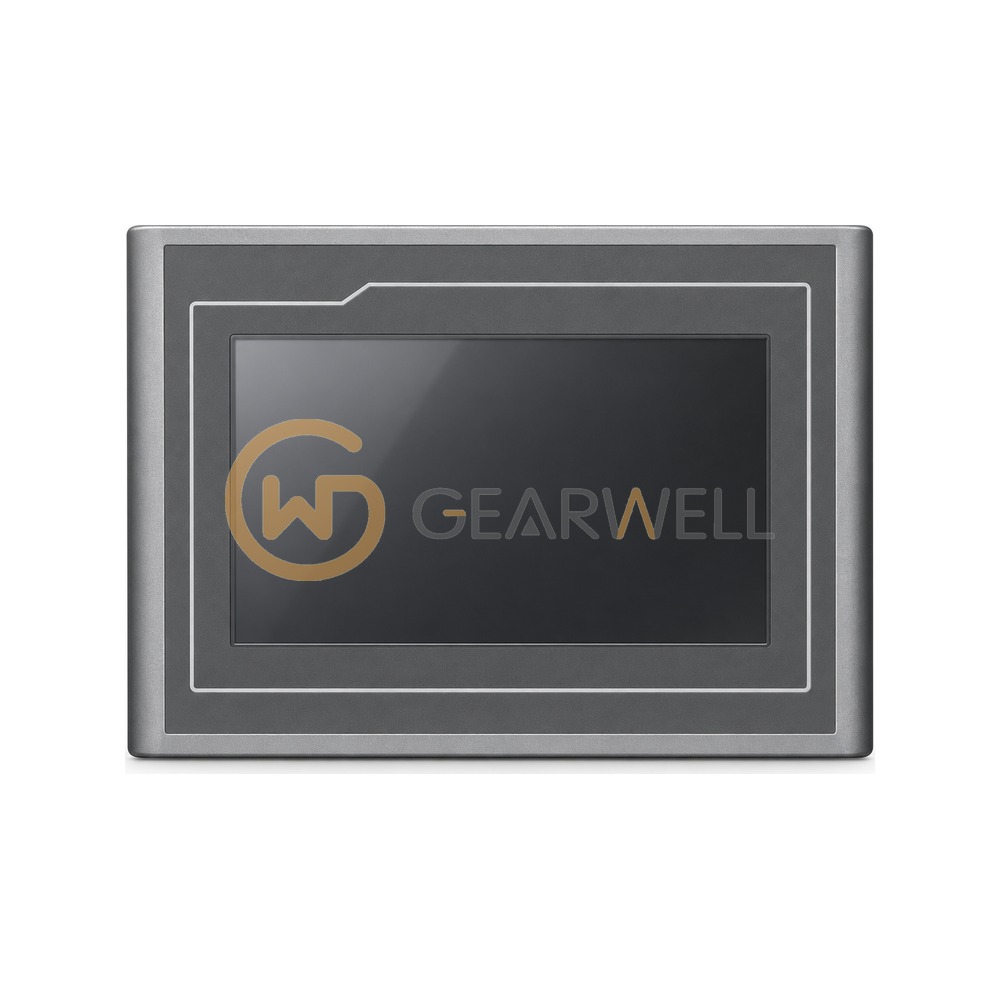

MCGS TPC7062KX TPC K series HMI Touch Panel
- Brand
- MCGS
- Model
- TPC7062KX
- GEARWELL SKU
- GWP-000015481
- Category
- HMIs & Industrial PCs
Key specifications
- CPU
- ARM9, 400 MHz
- USB
- 1 host, 1 device
- Power
- 24 V DC +/-20 %, 5 W
- Display
- 7 in TFT LCD, LED backlight, 65,535 colours
- Protection
- IP65 (front panel)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | MCGS TPC7062KX TPC K series HMI Touch Panel |
|---|---|
| Brand | MCGS |
| Model | TPC7062KX |
| Category | HMIs & Industrial PCs |
| CPU | ARM9, 400 MHz |
| USB | 1 host, 1 device |
| Power | 24 V DC +/-20 %, 5 W |
| Display | 7 in TFT LCD, LED backlight, 65,535 colours |
| Protection | IP65 (front panel) |
| Resolution | 800 x 480 px |
| Serial ports | COM1 RS232, COM2 RS485 |
| Touch screen | Resistive |
| Panel / cut-out | 226.5 x 163 mm / 215 x 152 mm |
| Memory / storage | 64 MB / 128 MB |
