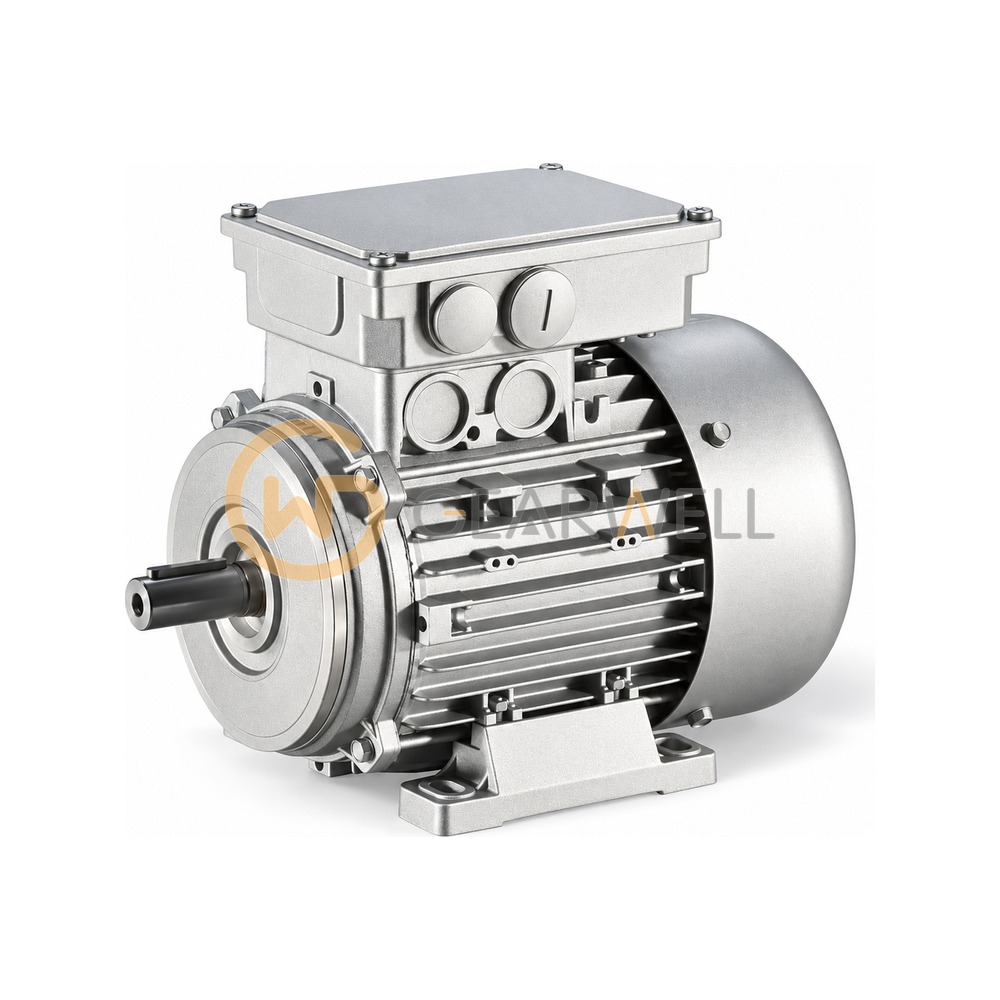

LENZE MHEMAXX080-32C1U MH IE2 0.75 kW Three-Phase AC Motor
- Brand
- LENZE
- Model
- MHEMAXX080-32C1U
- GEARWELL SKU
- GWP-000015748
- Category
- Motors & Gearboxes
Key specifications
- Size
- 080
- Cooling
- E = integral fan
- Rated torque
- 5.08 Nm
- Code suffix "U"
- as collected; not listed in the official model-number table (approval codes C / V / 3)
- Efficiency class
- H = IE2
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE MHEMAXX080-32C1U MH IE2 0.75 kW Three-Phase AC Motor |
|---|---|
| Brand | LENZE |
| Model | MHEMAXX080-32C1U |
| Category | Motors & Gearboxes |
| Size | 080 |
| Cooling | E = integral fan |
| Rated torque | 5.08 Nm |
| Code suffix "U" | as collected; not listed in the official model-number table (approval codes C / V / 3) |
| Efficiency class | H = IE2 |
| Rated power (50 Hz) | 0.75 kW |
| Rated speed (50 Hz) | 1410 rpm |
| Built-on accessories | XX = without |
| Rated current (400 V Y) | 1.80 A |
| Overall length / pole pairs | 3 / 2 (4-pole) |
