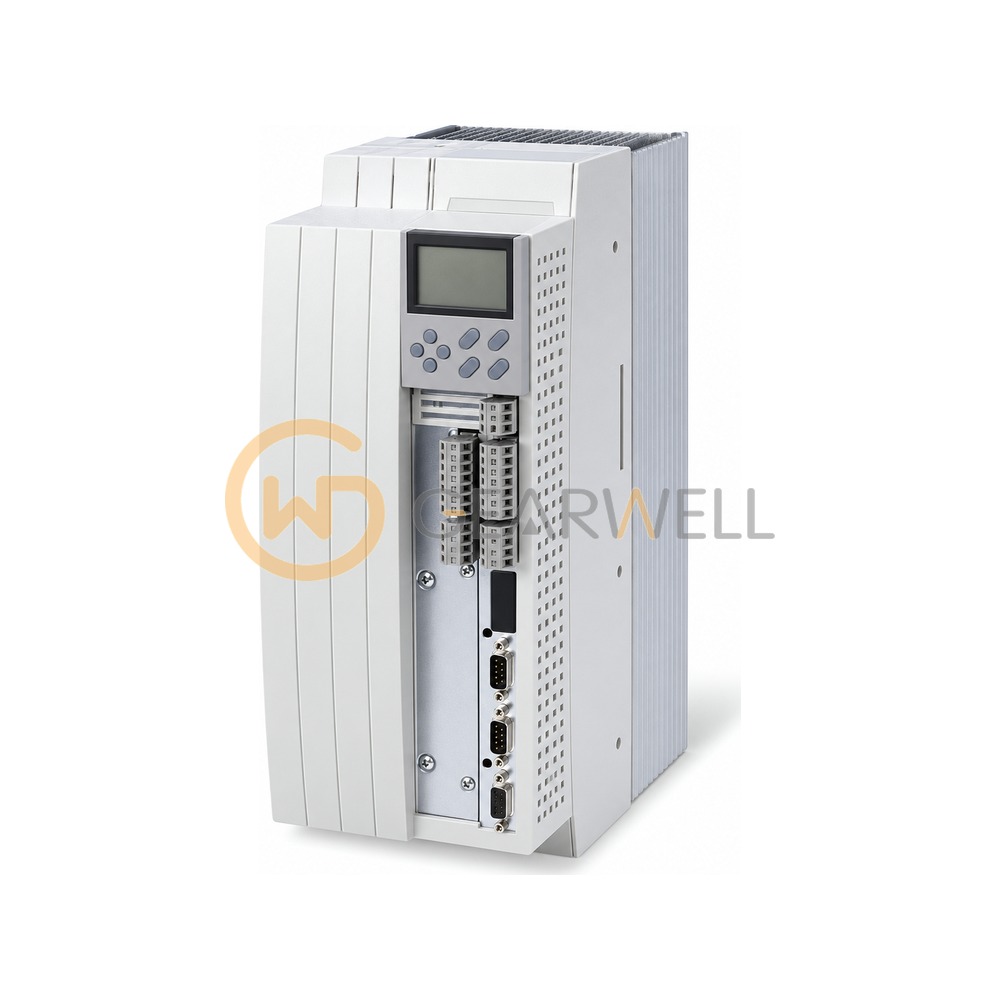

LENZE EVF9332-EV 9300 vector 75 kW Frequency Inverter
- Brand
- LENZE
- Model
- EVF9332-EV
- GEARWELL SKU
- GWP-000015736
- Category
- Variable Frequency Drives
Key specifications
- Mass
- 59.0 kg
- Design
- EVF93xx-EV = standard (panel-mounted) device
- Mains voltage
- 3/PE AC 320 ... 440 V, 45 ... 65 Hz (DC 450 ... 620 V alternatively)
- Output power (2/4 kHz)
- 103.9 kVA
- Max. output current (2/4 kHz)
- 225 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LENZE EVF9332-EV 9300 vector 75 kW Frequency Inverter |
|---|---|
| Brand | LENZE |
| Model | EVF9332-EV |
| Category | Variable Frequency Drives |
| Mass | 59.0 kg |
| Design | EVF93xx-EV = standard (panel-mounted) device |
| Mains voltage | 3/PE AC 320 ... 440 V, 45 ... 65 Hz (DC 450 ... 620 V alternatively) |
| Output power (2/4 kHz) | 103.9 kVA |
| Max. output current (2/4 kHz) | 225 A |
| Rated output current (2/4 kHz) | 150 A |
| Mains current (with mains choke) | 135 A |
| Typical motor power (4-pole ASM, 400 V) | 75.0 kW |
