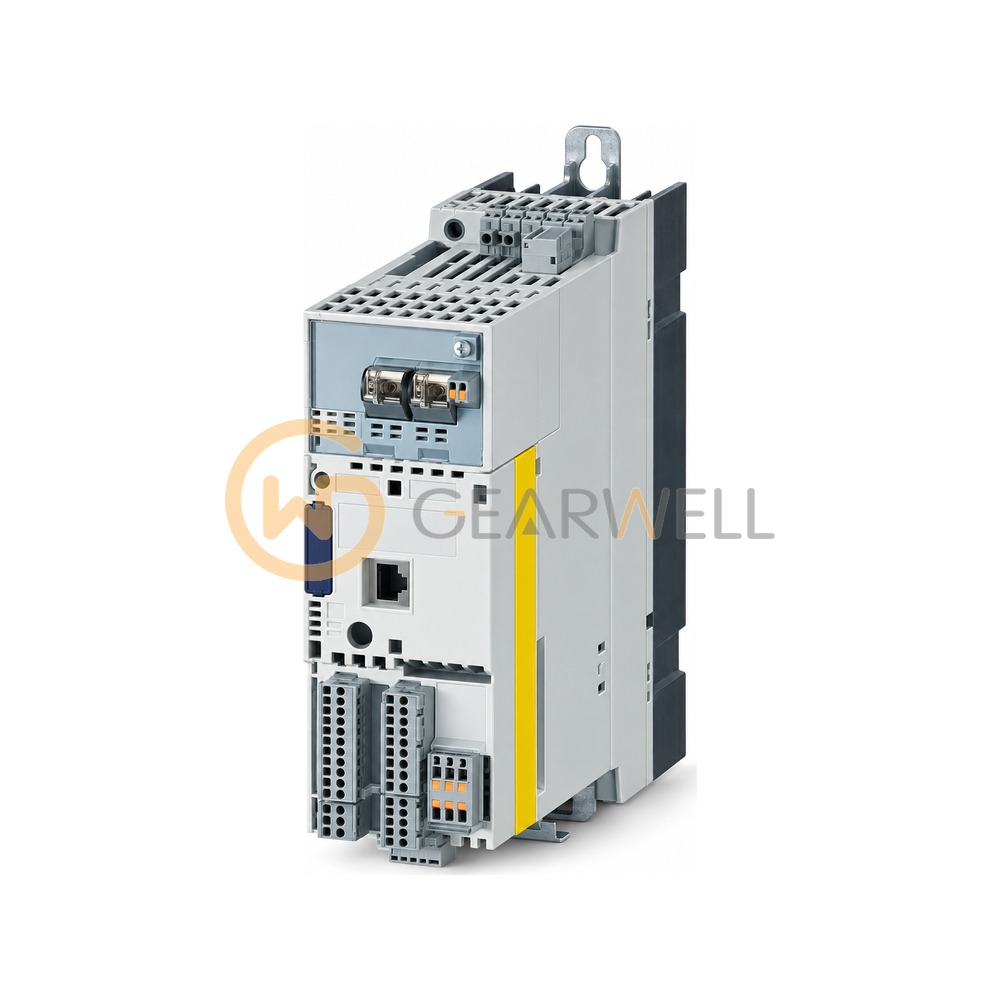

LENZE E84AVHCE5524 8400 HighLine Frequency Inverter 5.5 kW 400 V

Key specifications

Series: Inverter Drives 8400 HighLine
Mains voltage: 3/PE AC 320 V -0 % ... 550 V +0 %, 45 ... 65 Hz
Product key decoded: E84AV + HC = HighLine + E = installation + 552 = 5.5 kW + 4 = 400/500 V, 3/PE AC
Rated output current: 13.0 A
Max. output current (60 s / 3 s): 19.5 / 26.0 A

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	LENZE E84AVHCE5524 8400 HighLine Frequency Inverter 5.5 kW 400 V
Brand	LENZE
Model	E84AVHCE5524
Category	Variable Frequency Drives
Series	Inverter Drives 8400 HighLine
Mains voltage	3/PE AC 320 V -0 % ... 550 V +0 %, 45 ... 65 Hz
Product key decoded	E84AV + HC = HighLine + E = installation + 552 = 5.5 kW + 4 = 400/500 V, 3/PE AC
Rated output current	13.0 A
Max. output current (60 s / 3 s)	19.5 / 26.0 A
Rated power (4-pole asynchronous motor)	5.5 kW
Open code positions (ambient / safety / version)	S = standard or V = coated circuit boards; X = without or B = with safety engineering (STO); 0 / S = 599 Hz or 7 = 1000 Hz (specify on order)
Rated mains current with / without mains choke	12.0 / 18.0 A
