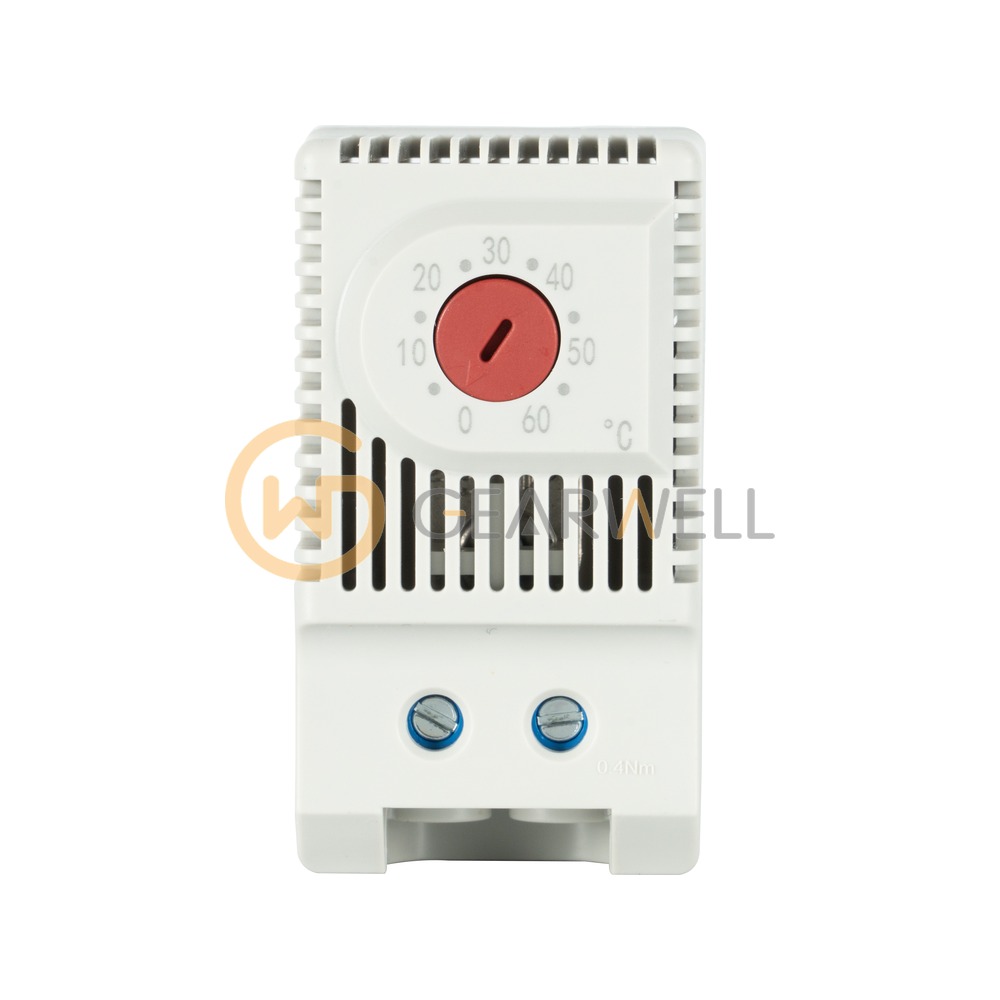

LEIPOLE JWT6011R JWT6011 Enclosure Thermostat, Normally Closed
- Brand
- LEIPOLE
- Model
- JWT6011R
- GEARWELL SKU
- GWP-000016807
- Category
- Pressure, Flow & Temperature
Key specifications
- Size
- 69 x 50 x 46 mm
- Mounting
- 35 mm DIN rail
- Order number
- 2021.003
- Contact / status
- Normally closed (red)
- Sensing element
- Bimetallic
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | LEIPOLE JWT6011R JWT6011 Enclosure Thermostat, Normally Closed |
|---|---|
| Brand | LEIPOLE |
| Model | JWT6011R |
| Category | Pressure, Flow & Temperature |
| Size | 69 x 50 x 46 mm |
| Mounting | 35 mm DIN rail |
| Order number | 2021.003 |
| Contact / status | Normally closed (red) |
| Sensing element | Bimetallic |
| Suffix verification | Official LEIPOLE JWT6011F/R page lists model JWT6011R with order number 2021.003; R = normally closed (red), F = normally open (blue) |
| Temperature setting range | 0-60 °C |
| Maximum switching capacity | 250VAC 10(2)A / 120VAC 15(2)A / DC 30W |
| Operating / storage temperature | -5 to +80 °C |
| Switching temperature tolerance | 7K (±4K) |
