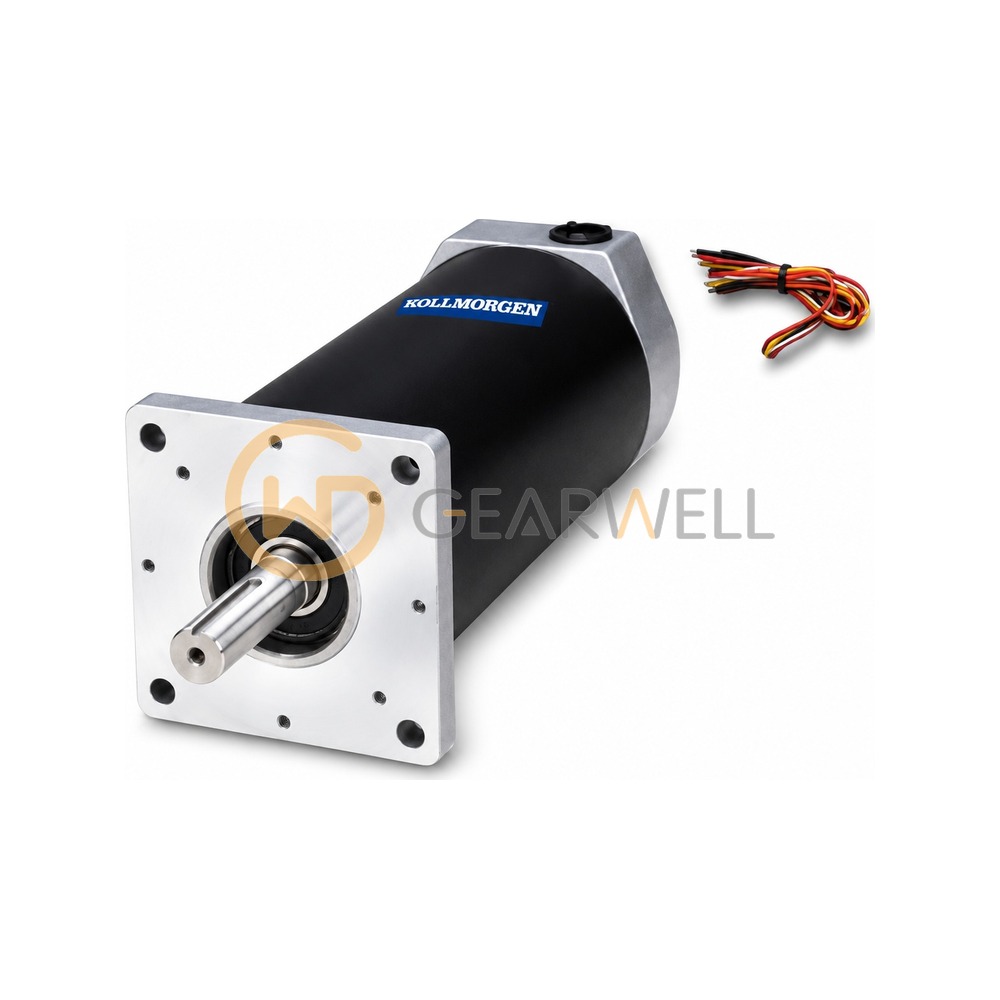

Kollmorgen E33NRHA-LNN-NS-00 E Series NEMA 34 Hybrid Stepper Motor
- Brand
- Kollmorgen
- Model
- E33NRHA-LNN-NS-00
- GEARWELL SKU
- GWP-000034709
- Category
- Motors & Gearboxes
Key specifications
- Weight
- 3.45 kg
- Brand note
- collected as GE; the code is a Kollmorgen E/H Series model number (Kollmorgen selection guide KM_SG_00091-EH Rev D)
- Frame / stacks
- NEMA 34 (3.38 in. dia.), 3 rotor stacks, E = SIGMAX construction
- Phase inductance
- 2.3 mH
- Phase resistance
- 0.23 Ohm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Kollmorgen E33NRHA-LNN-NS-00 E Series NEMA 34 Hybrid Stepper Motor |
|---|---|
| Brand | Kollmorgen |
| Model | E33NRHA-LNN-NS-00 |
| Category | Motors & Gearboxes |
| Weight | 3.45 kg |
| Brand note | collected as GE; the code is a Kollmorgen E/H Series model number (Kollmorgen selection guide KM_SG_00091-EH Rev D) |
| Frame / stacks | NEMA 34 (3.38 in. dia.), 3 rotor stacks, E = SIGMAX construction |
| Phase inductance | 2.3 mH |
| Phase resistance | 0.23 Ohm |
| Connections / winding | 4 lead parallel (H), winding type A |
| Rotor / shaft / feedback | Laminated rotor (L), single shaft (N), smooth (N); NS = no feedback; 00 = standard, no shaft seal |
| Rated current per phase | 8.6 A DC |
| Holding torque (2 phases on) | 6.64 N·m |
| Construction / connection style | R = regular / leadwire |
