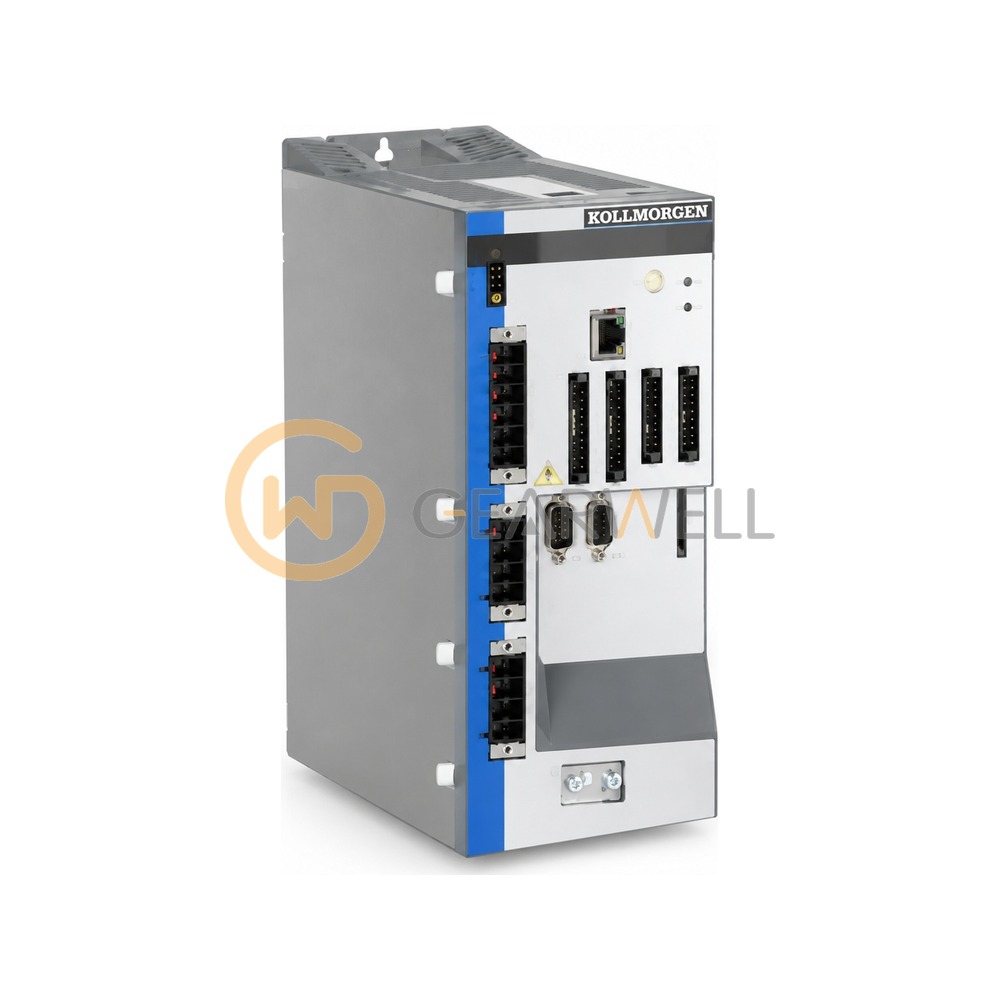

Kollmorgen AKD-P00306-NBAN-0000 AKD Position Indexer Servo Drive
- Brand
- Kollmorgen
- Model
- AKD-P00306-NBAN-0000
- GEARWELL SKU
- GWP-000034706
- Category
- Servo Systems
Key specifications
- Evidence
- Kollmorgen 903-200003-00 AKD Installation Manual, Edition AG (May 2022): sec. 6.3 Part Number Scheme p.33; sec. 7.6/7.7 Electrical Data p.39-40
- Customization
- 0000 = Standard
- Extension option
- NB = none
- Connectivity option
- AN = Analog
- Current rating code
- 003 = 3 Arms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Kollmorgen AKD-P00306-NBAN-0000 AKD Position Indexer Servo Drive |
|---|---|
| Brand | Kollmorgen |
| Model | AKD-P00306-NBAN-0000 |
| Category | Servo Systems |
| Evidence | Kollmorgen 903-200003-00 AKD Installation Manual, Edition AG (May 2022): sec. 6.3 Part Number Scheme p.33; sec. 7.6/7.7 Electrical Data p.39-40 |
| Customization | 0000 = Standard |
| Extension option | NB = none |
| Connectivity option | AN = Analog |
| Current rating code | 003 = 3 Arms |
| Voltage rating code | 06 = 120/240 Vac 1~/3~ |
| Drive family / version | AKD / P = Position Indexer |
| Rated input power (S1) | 1.2 kVA |
| Rated supply voltage | 3 x 100 to 240 / 1 x 100 to 240 (±10%) V |
| Peak output current (5 s) | 9 Arms |
| Continuous output current (240 V) | 3 Arms |
| Continuous output power (3 x 240 V) | 625 VA |
