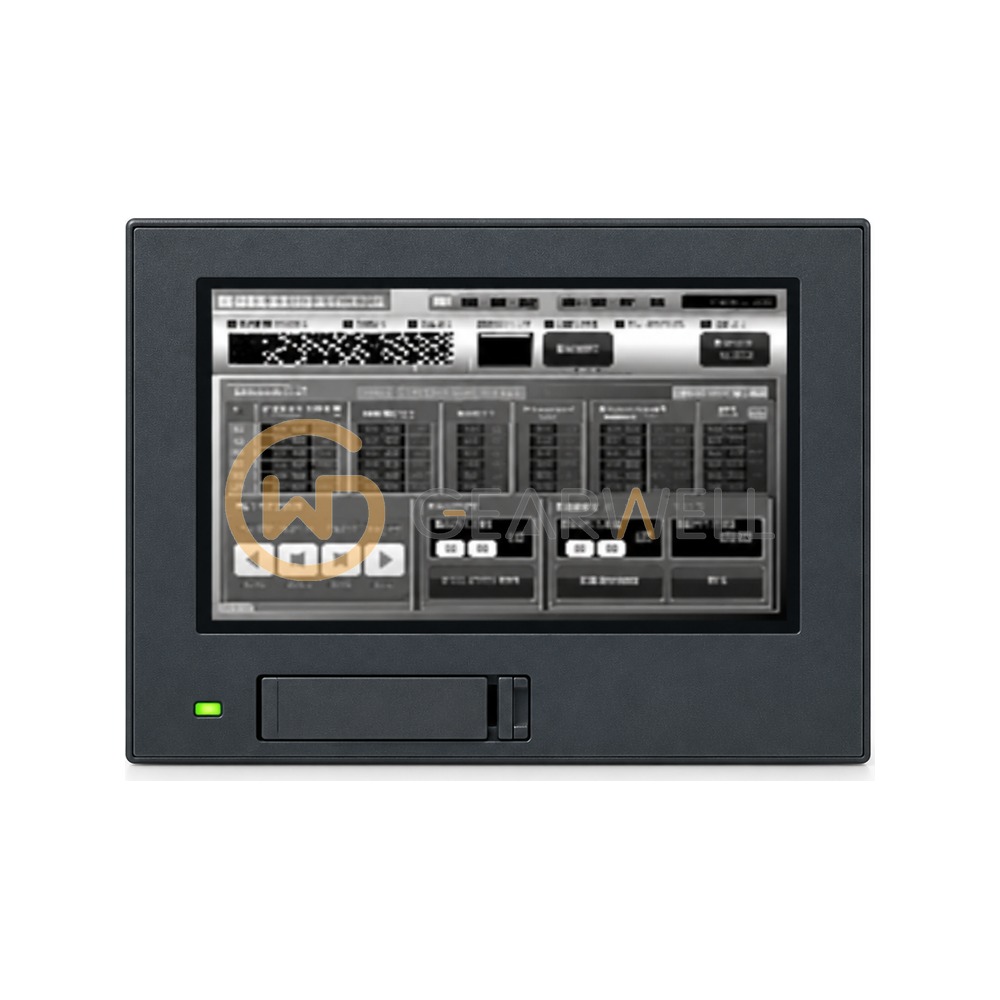

KEYENCE VT5-W07M VT5 Touch Panel HMI
- Brand
- KEYENCE
- Model
- VT5-W07M
- GEARWELL SKU
- GWP-000010694
- Category
- HMIs & Industrial PCs
Key specifications
- Power voltage
- 24 VDC ±20%
- Noise resistance
- 1500 Vp-p or more, Pulse duration: 1 μs, 50 ns (based on noise simulator)
- Pollution degree
- 2
- Withstand voltage
- 1500 VAC for one minute (between power terminal and housing)
- Overvoltage category
- I
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE VT5-W07M VT5 Touch Panel HMI |
|---|---|
| Brand | KEYENCE |
| Model | VT5-W07M |
| Category | HMIs & Industrial PCs |
| Power voltage | 24 VDC ±20% |
| Noise resistance | 1500 Vp-p or more, Pulse duration: 1 μs, 50 ns (based on noise simulator) |
| Pollution degree | 2 |
| Withstand voltage | 1500 VAC for one minute (between power terminal and housing) |
| Overvoltage category | I |
| Insulation resistance | 50 MΩ or more (between power terminal and housing, with 500 VDC megohmmeter) |
| Operating environment | No dust, corrosive gases, or other harmful substances present |
| General specifications / Current consumption | 900 mA or less |
