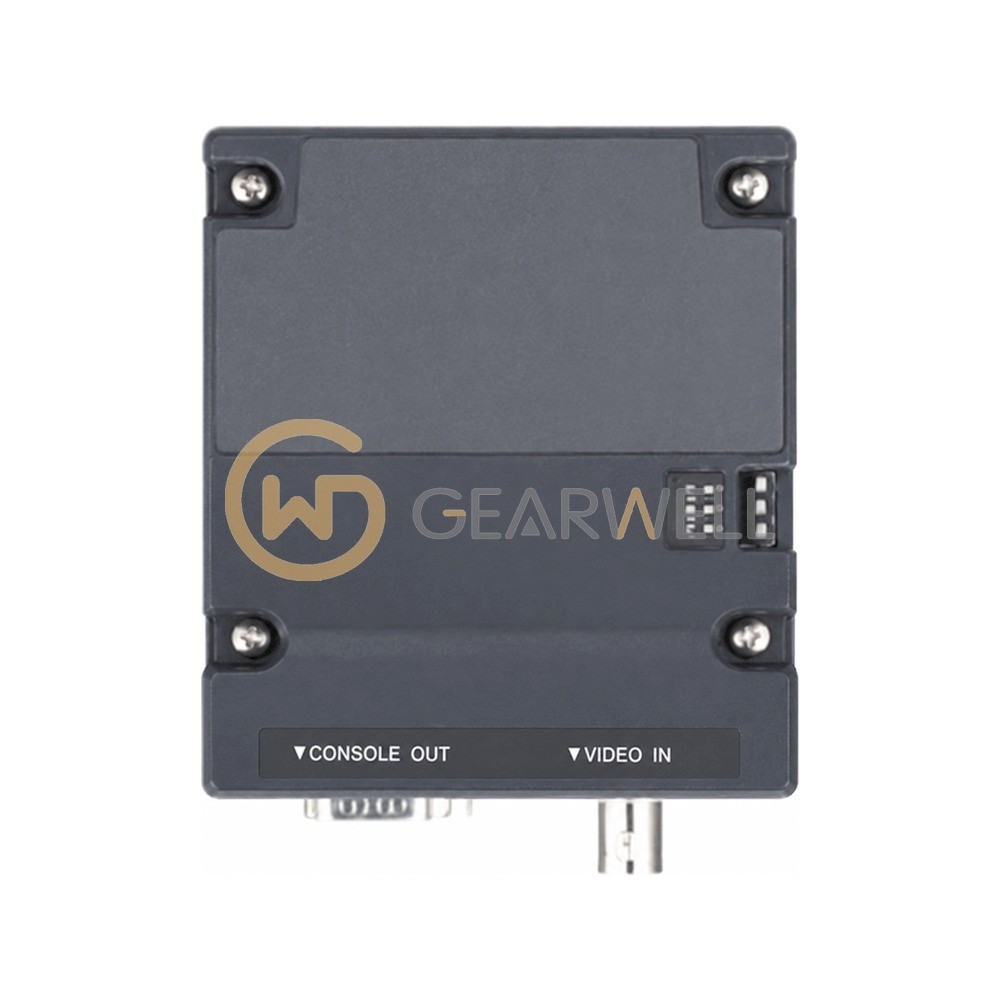

KEYENCE VT3-VD1 VT3 Video Input Unit
- Brand
- KEYENCE
- Model
- VT3-VD1
- GEARWELL SKU
- GWP-000010693
- Category
- HMIs & Industrial PCs
Key specifications
- Power voltage
- 5 VDC ±5%
- Noise resistance
- 1,500 Vp-p, pulse width: 1 µs (common mode, by way of a noise simulator)
- Withstand voltage
- 1500 VAC 1 minute (between power terminal and housing)
- Insulation resistance
- 5 MΩ or more, tested with a 500 VDC megger (between the power supply terminal and the case)
- Operating environment
- Minimal amount of dust and corrosive gas present
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE VT3-VD1 VT3 Video Input Unit |
|---|---|
| Brand | KEYENCE |
| Model | VT3-VD1 |
| Category | HMIs & Industrial PCs |
| Power voltage | 5 VDC ±5% |
| Noise resistance | 1,500 Vp-p, pulse width: 1 µs (common mode, by way of a noise simulator) |
| Withstand voltage | 1500 VAC 1 minute (between power terminal and housing) |
| Insulation resistance | 5 MΩ or more, tested with a 500 VDC megger (between the power supply terminal and the case) |
| Operating environment | Minimal amount of dust and corrosive gas present |
| Ambient operating humidity | 35 to 85%RH (No condensation) |
| Ambient operating temperature | 0 to +50°C |
| General specifications / Current consumption | 470mA or less |
