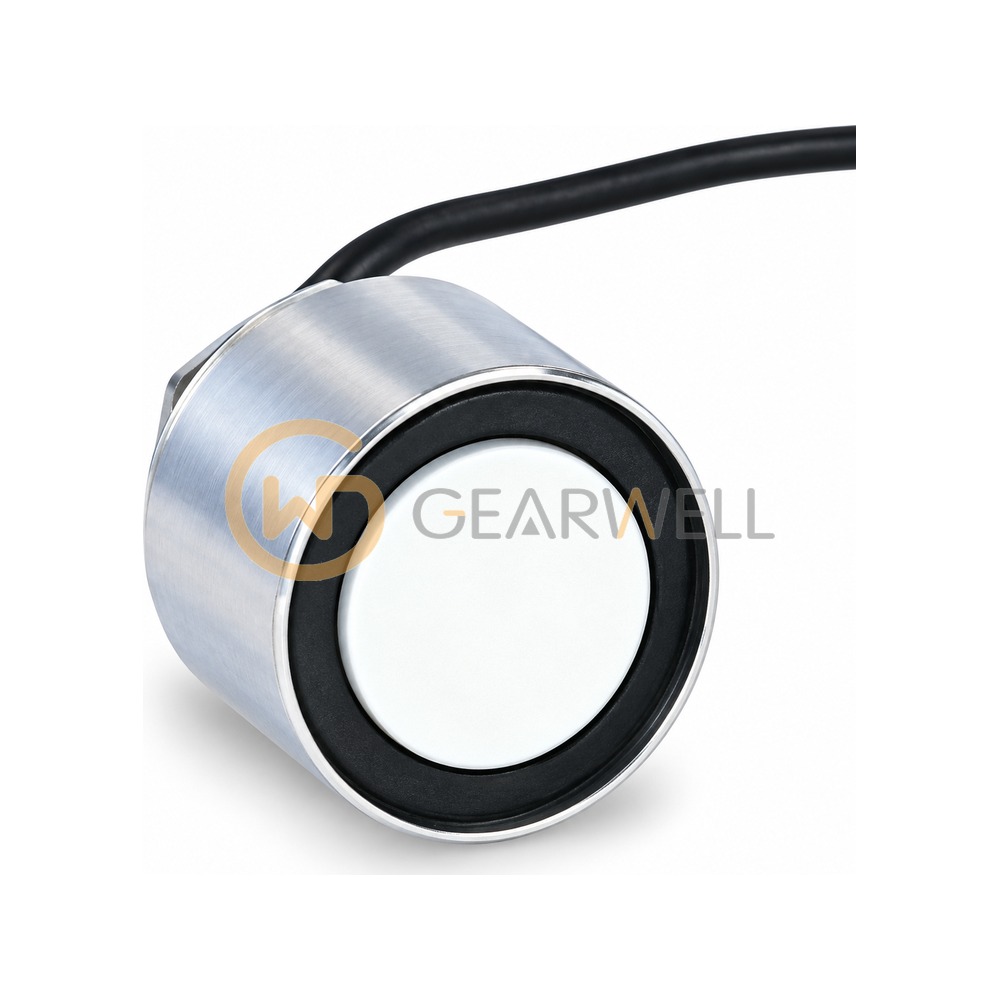

KEYENCE UD-100 UD-500 Ultrasonic Displacement Sensor Head
- Brand
- KEYENCE
- Model
- UD-100
- GEARWELL SKU
- GWP-000015365
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Type
- Standard sensor head
- Weight
- approx. 130 g (3 m cord)
- Resolution
- 0.5 mm (LOW)
- Power supply
- 12-24 VDC ±10 %
- Control output
- NPN open-collector 100 mA max.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE UD-100 UD-500 Ultrasonic Displacement Sensor Head |
|---|---|
| Brand | KEYENCE |
| Model | UD-100 |
| Category | Proximity & Photoelectric Sensors |
| Type | Standard sensor head |
| Weight | approx. 130 g (3 m cord) |
| Resolution | 0.5 mm (LOW) |
| Power supply | 12-24 VDC ±10 % |
| Control output | NPN open-collector 100 mA max. |
| Analogue output | -5 to +5 V (10 mV/mm) |
| Linearity range | 400 to 900 mm |
| Measurement range | 300 to 1,300 mm |
