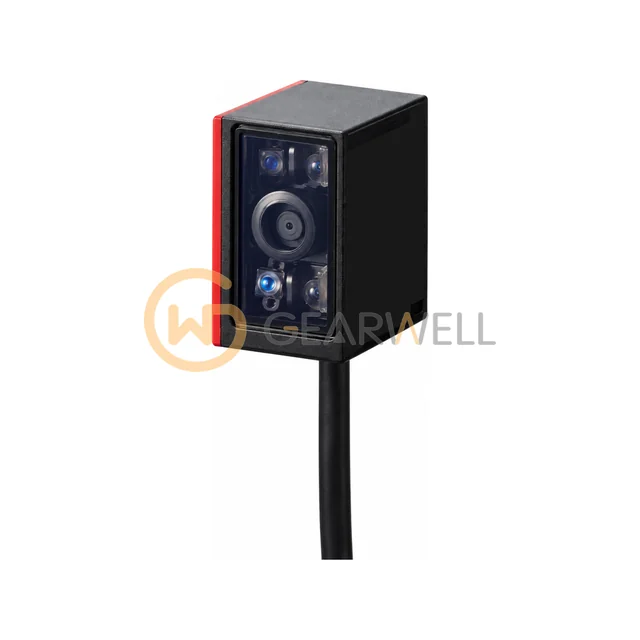

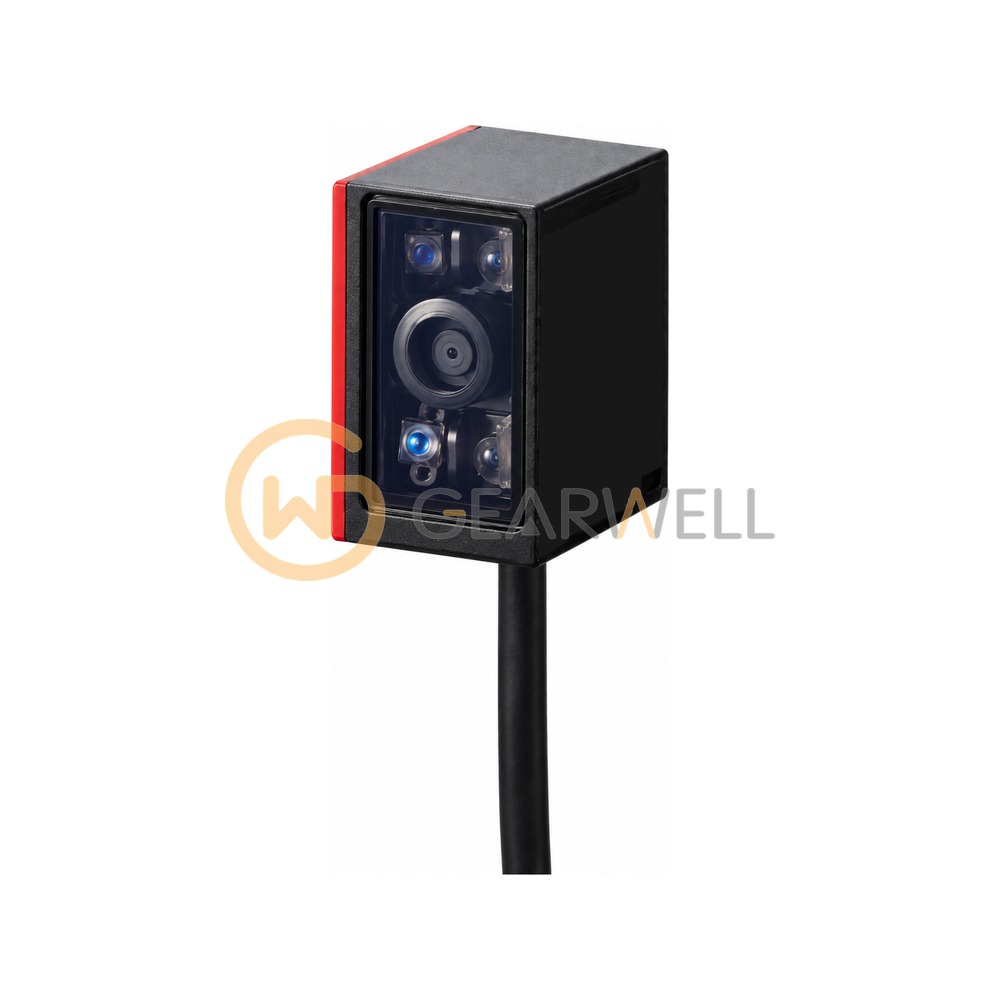

KEYENCE SR-710 SR-700 Fixed Code Reader
- Brand
- KEYENCE
- Model
- SR-710
- GEARWELL SKU
- GWP-000012850
- Category
- Machine Safety & Vision
Key specifications
- Type
- Middle-range type
- Weight
- approx. 160 g (including cable)
- Interfaces
- RS-232C (up to 115200 bps), USB 2.0
- Control I/O
- 2 inputs, 4 NPN outputs
- Field of view
- 70 x 45 mm (at focal distance)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE SR-710 SR-700 Fixed Code Reader |
|---|---|
| Brand | KEYENCE |
| Model | SR-710 |
| Category | Machine Safety & Vision |
| Type | Middle-range type |
| Weight | approx. 160 g (including cable) |
| Interfaces | RS-232C (up to 115200 bps), USB 2.0 |
| Control I/O | 2 inputs, 4 NPN outputs |
| Field of view | 70 x 45 mm (at focal distance) |
| Power voltage | 5 VDC |
| Focal distance | 100 mm |
| Supported codes | 1D barcodes; QR, MicroQR, DataMatrix, PDF417, GS1 Composite |
| Enclosure rating | IP65 |
| Minimum resolution | 0.127 mm barcode / 0.19 mm 2D code |
