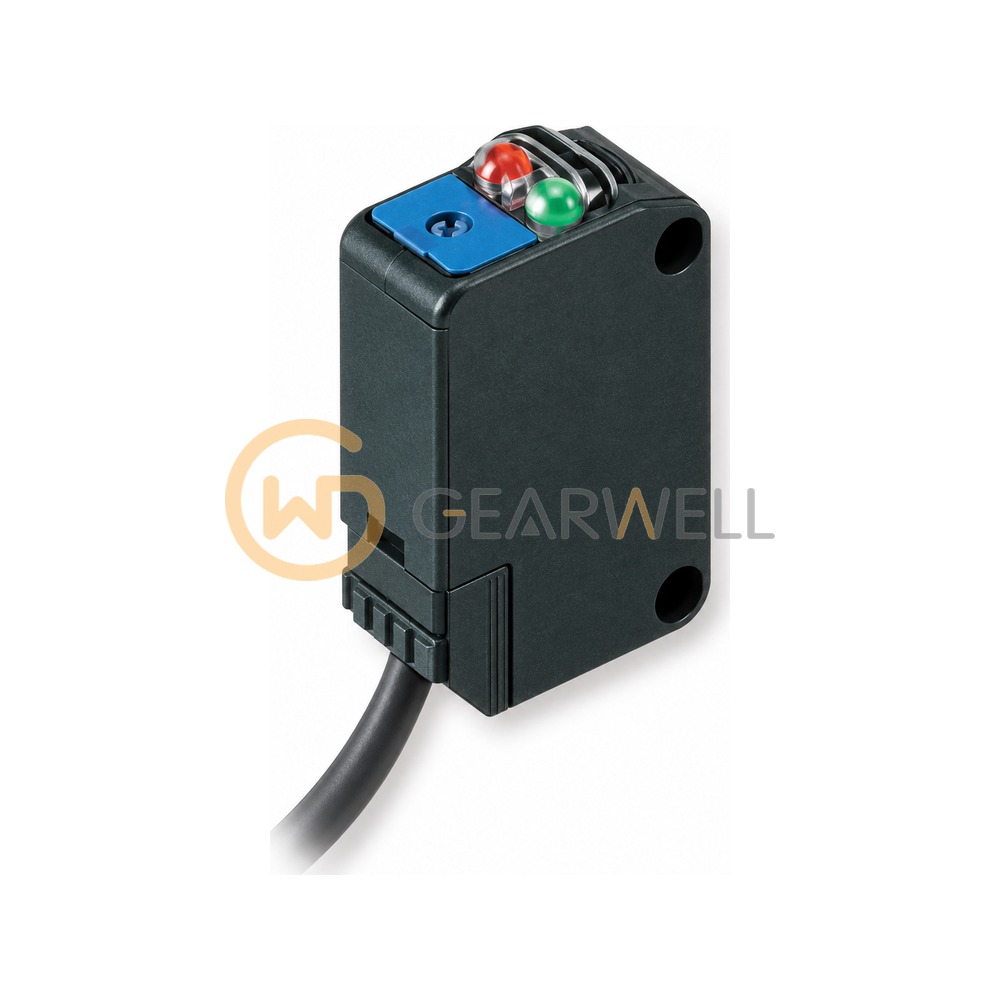

KEYENCE PZ2-42 PZ2 Square Diffuse-Reflective Photoelectric Sensor
- Brand
- KEYENCE
- Model
- PZ2-42
- GEARWELL SKU
- GWP-000015648
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Type
- Diffuse-reflective, short range, cable type, NPN
- Weight
- Approx. 50 (including 2 m cable) g
- Light source
- Red LED
- Power voltage
- 12 to 24 VDC ±10 %
- Response time
- 1 ms max.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE PZ2-42 PZ2 Square Diffuse-Reflective Photoelectric Sensor |
|---|---|
| Brand | KEYENCE |
| Model | PZ2-42 |
| Category | Proximity & Photoelectric Sensors |
| Type | Diffuse-reflective, short range, cable type, NPN |
| Weight | Approx. 50 (including 2 m cable) g |
| Light source | Red LED |
| Power voltage | 12 to 24 VDC ±10 % |
| Response time | 1 ms max. |
| Control output | 100 mA (40 V) max. |
| Enclosure rating | IP67 |
| Detecting distance | 100 mm |
