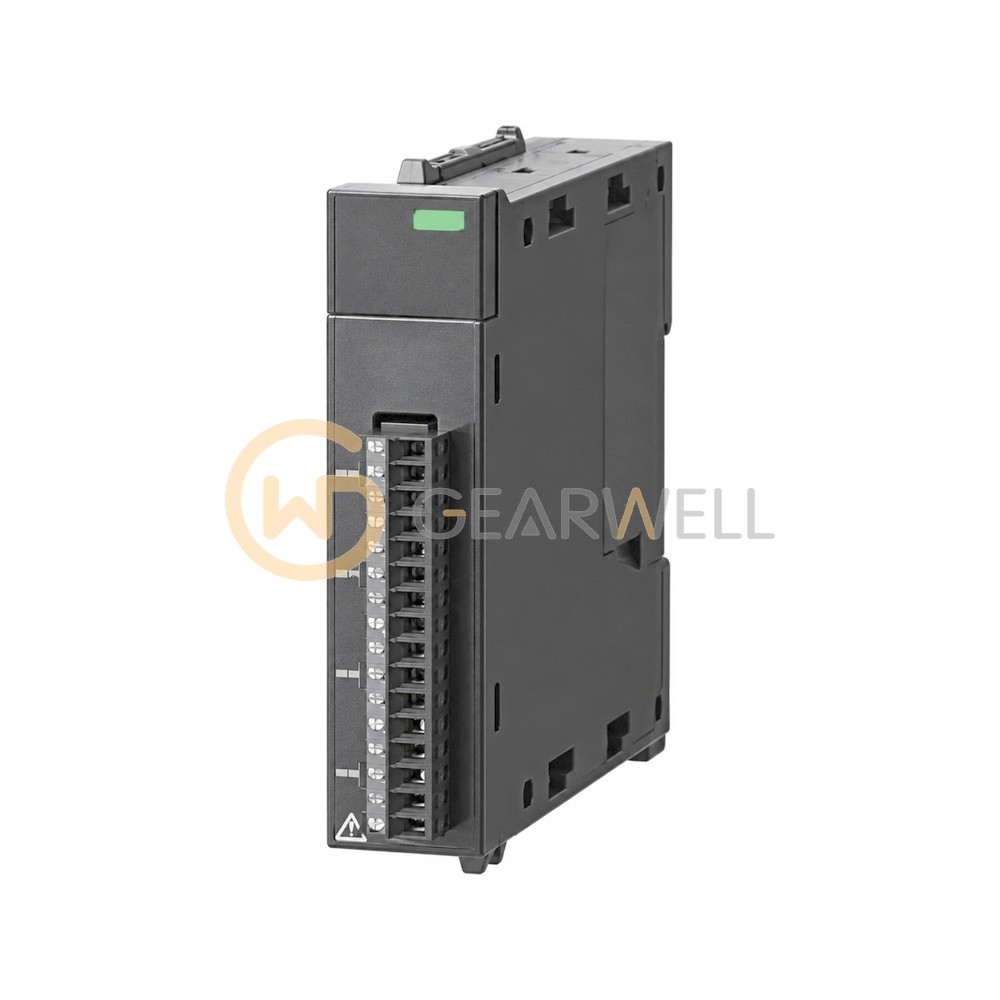

KEYENCE KV-SAD04 KV-X Analog Input Unit
- Brand
- KEYENCE
- Model
- KV-SAD04
- GEARWELL SKU
- GWP-000010679
- Category
- PLCs & I/O
Key specifications
- Type
- High-speed analog input unit
- Input current
- 0 to 20 mA (1 μA 1/20000) 4 to 20 mA (1 μA 1/16000)
- Input impedance
- Voltage: 1 MΩ, Current: 250 Ω
- Insulation mode
- Between unit and CPU: Photocoupler and transformer insulation, Between channels: Non-insulation
- Conversion speed
- 10 μs/ch
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE KV-SAD04 KV-X Analog Input Unit |
|---|---|
| Brand | KEYENCE |
| Model | KV-SAD04 |
| Category | PLCs & I/O |
| Type | High-speed analog input unit |
| Input current | 0 to 20 mA (1 μA 1/20000) 4 to 20 mA (1 μA 1/16000) |
| Input impedance | Voltage: 1 MΩ, Current: 250 Ω |
| Insulation mode | Between unit and CPU: Photocoupler and transformer insulation, Between channels: Non-insulation |
| Conversion speed | 10 μs/ch |
| Analog input points | Input: 4 points (differential input) |
| Conversion precision | 25°C ±5°C: ±0.1% (±20 digit), 0 to 55°C: ±0.2% (±40 digit) |
| Absolute maximum input | Voltage: -15 V/+35 V, Current: 30 mA |
