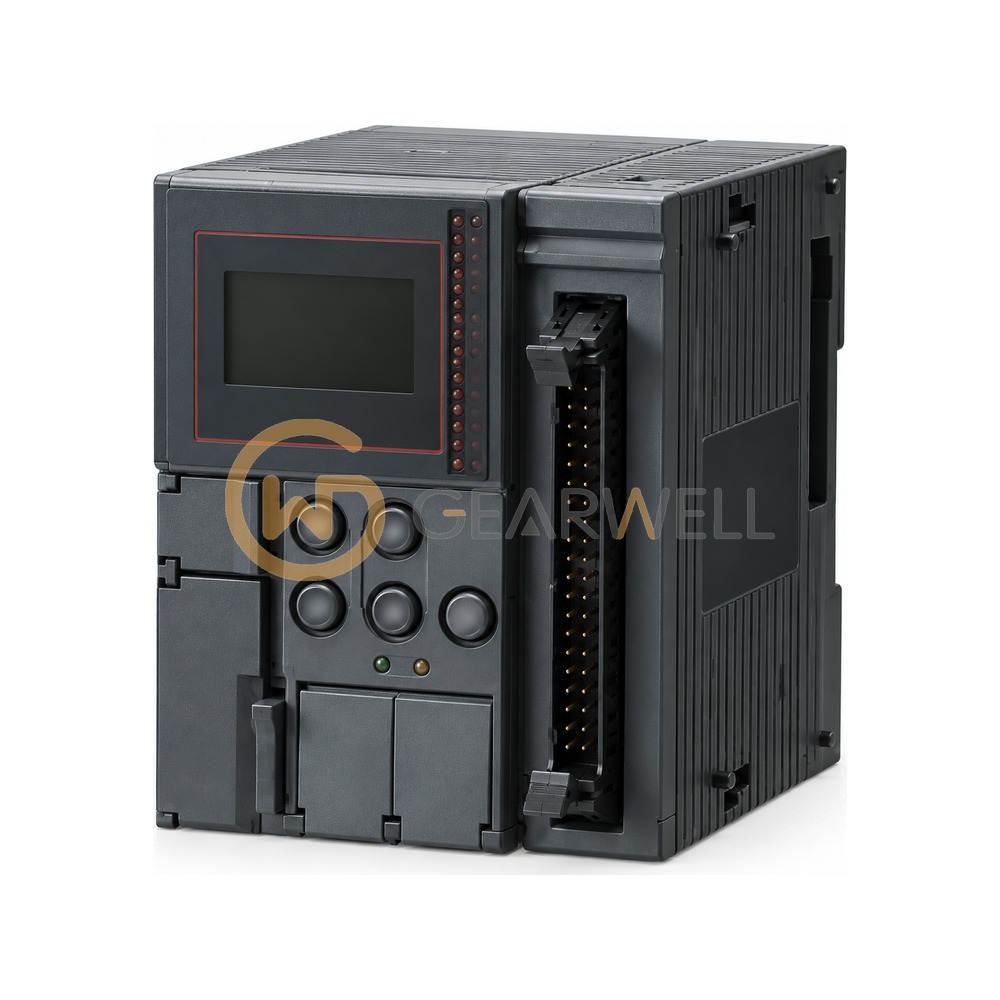

KEYENCE KV-5500 KV-5000/3000 PLC CPU Unit
- Brand
- KEYENCE
- Model
- KV-5500
- GEARWELL SKU
- GWP-000015509
- Category
- PLCs & I/O
Key specifications
- Type
- CPU unit with built-in EtherNet/IP port
- CPU unit I/O
- 16 inputs / 8 outputs
- Power voltage
- 24 VDC ±10 %
- Program capacity
- Approx. 260k steps
- Maximum I/O points
- 3,096 (with expansion)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE KV-5500 KV-5000/3000 PLC CPU Unit |
|---|---|
| Brand | KEYENCE |
| Model | KV-5500 |
| Category | PLCs & I/O |
| Type | CPU unit with built-in EtherNet/IP port |
| CPU unit I/O | 16 inputs / 8 outputs |
| Power voltage | 24 VDC ±10 % |
| Program capacity | Approx. 260k steps |
| Maximum I/O points | 3,096 (with expansion) |
| Programming language | Expanded ladder, KV Script, mnemonic |
| Operating ambient temperature | 0 to +50 °C |
| Basic instruction execution speed | Min. 10 ns |
