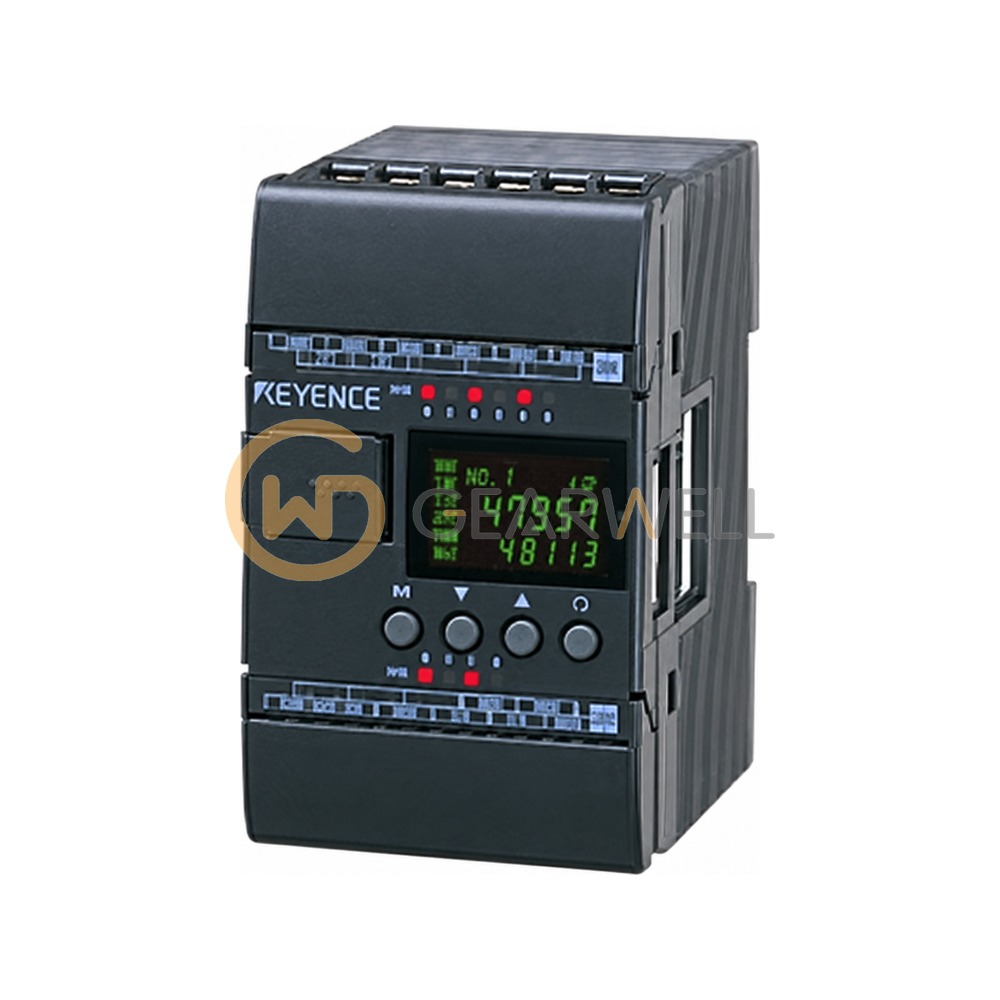

KEYENCE KV-10AT Visual KV PLC Base Unit
- Brand
- KEYENCE
- Model
- KV-10AT
- GEARWELL SKU
- GWP-000010678
- Category
- PLCs & I/O
Key specifications
- Type
- AC power supply type base unit
- Shock resistance
- Conforms to JIS C 0041, 150 m/s 2 (15 G), operating time: 11 ms, 2 times in each of the 3 axial directions
- Weight / Base unit
- Approx 240g
- Operating ambient humidity
- 35 to 85% RH (no condensation)
- Ambient temperature for storage
- -20 to 70°C (no freezing)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | KEYENCE KV-10AT Visual KV PLC Base Unit |
|---|---|
| Brand | KEYENCE |
| Model | KV-10AT |
| Category | PLCs & I/O |
| Type | AC power supply type base unit |
| Shock resistance | Conforms to JIS C 0041, 150 m/s 2 (15 G), operating time: 11 ms, 2 times in each of the 3 axial directions |
| Weight / Base unit | Approx 240g |
| Operating ambient humidity | 35 to 85% RH (no condensation) |
| Ambient temperature for storage | -20 to 70°C (no freezing) |
| Allowable instantaneous outage time | Less than 40 ms |
| Input power supply voltage / Base unit | 100 to 240 VAC (± 10%) |
| Environmental resistance / Operating ambient temperature | 0 to 50°C (no freezing), 0 to 45°C (KZ-P3) |
