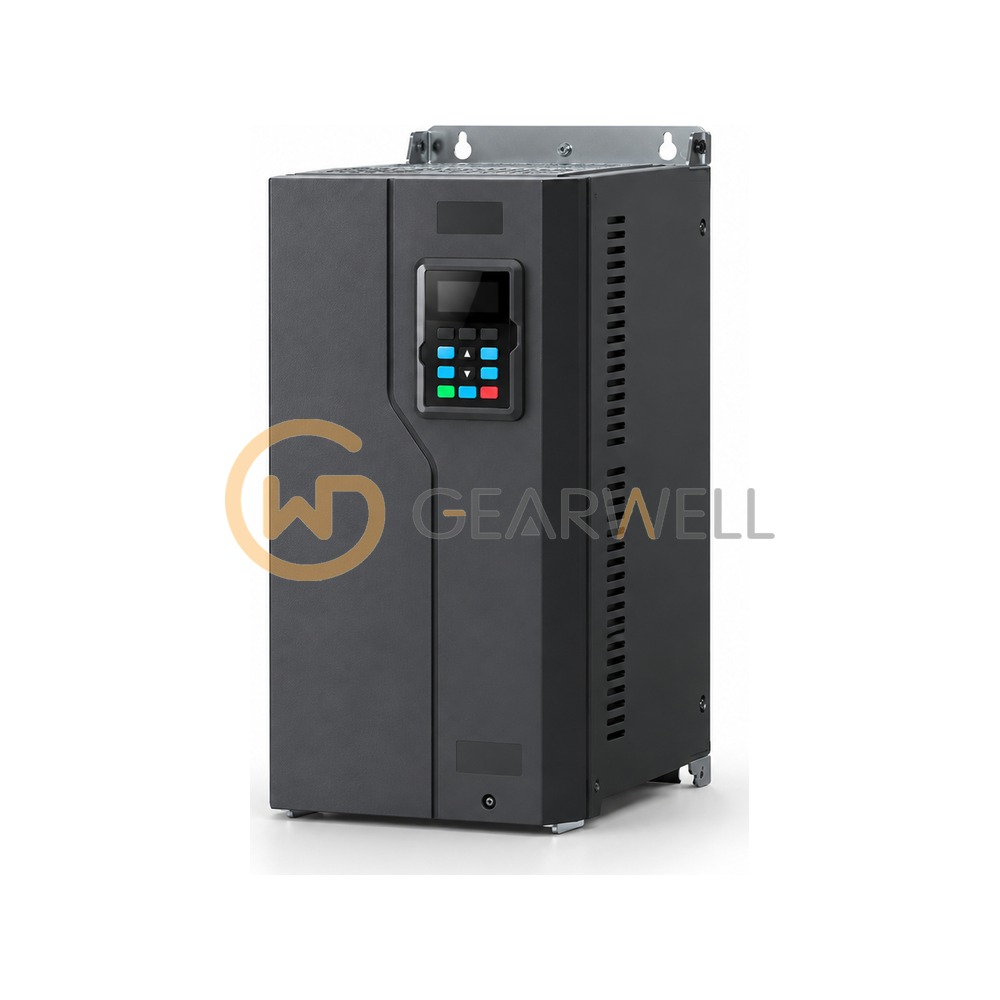

INVT GD270-075-4-L1 Goodrive270 Fan and Pump AC Drive
- Brand
- INVT
- Model
- GD270-075-4-L1
- GEARWELL SKU
- GWP-000016268
- Category
- Variable Frequency Drives
Key specifications
- Frame
- Wall-mount frame 55–90 kW
- Keypad
- Remote-mountable LED keypad standard (30 kW and higher)
- Mounting
- Wall mounting
- IP rating
- IP20
- Relay outputs
- 2 programmable (3 A/AC 250 V, 1 A/DC 30 V)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | INVT GD270-075-4-L1 Goodrive270 Fan and Pump AC Drive |
|---|---|
| Brand | INVT |
| Model | GD270-075-4-L1 |
| Category | Variable Frequency Drives |
| Frame | Wall-mount frame 55–90 kW |
| Keypad | Remote-mountable LED keypad standard (30 kW and higher) |
| Mounting | Wall mounting |
| IP rating | IP20 |
| Relay outputs | 2 programmable (3 A/AC 250 V, 1 A/DC 30 V) |
| Voltage class | 4: AC 3PH 380–480 V (rated 380 V) |
| Rated output power | 75 kW |
| Reactor configuration | L1: built-in DC reactor |
| Outline dimensions W × H × D | 282 × 560 × 264 mm |
| Rated output current (at 380 V output) | 150 A |
| Rated input current (380 V, with DC reactor) | 149 A |
| Rated input current (380 V, without DC reactor) | 177 A |
| Full-load power dissipation (this configuration) | 1753 W |
