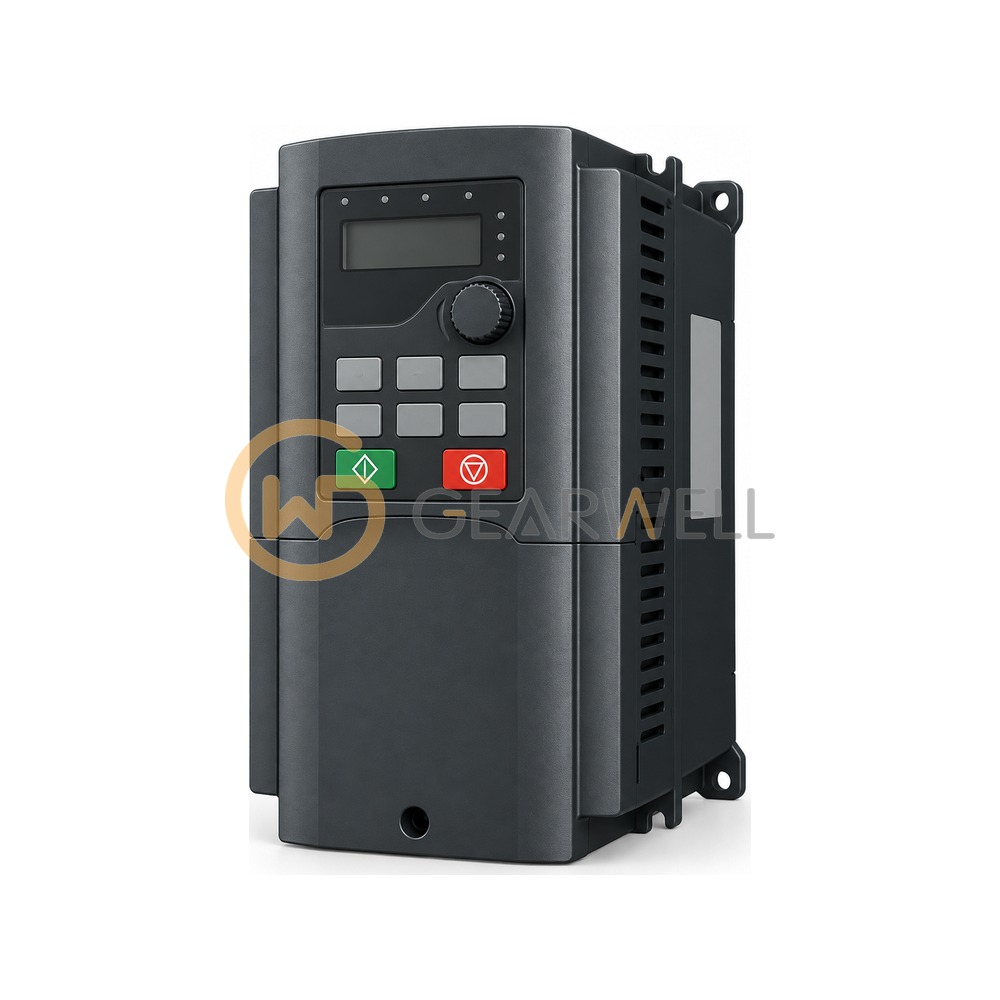

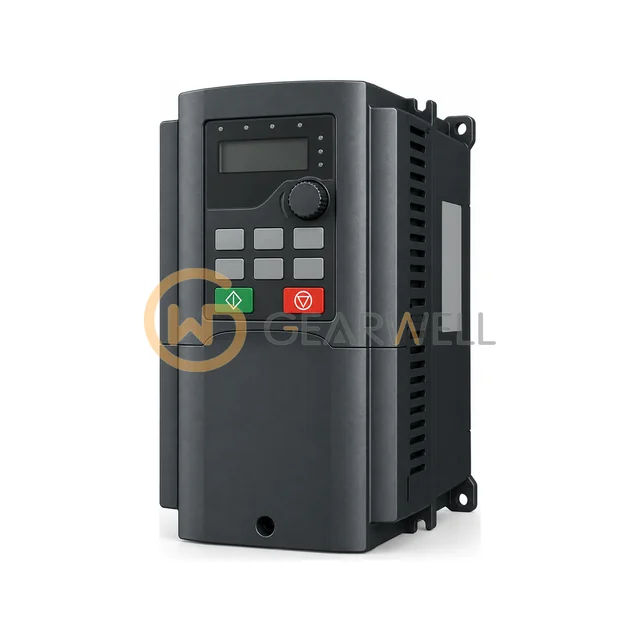

INVT GD200A-5R5G/7R5P-4 GD200A General Purpose AC Drive
- Brand
- INVT
- Model
- GD200A-5R5G/7R5P-4
- GEARWELL SKU
- GWP-000015836
- Category
- Variable Frequency Drives
Key specifications
- Input voltage
- AC 3PH 380V (-15%)...440V (+10%)
- Output frequency
- 0...400 Hz
- Overload capacity
- G: 150% 1 min, 180% 10 s; P: 120% 1 min
- Ingress protection
- IP20
- Constant torque (G) output power
- 5.5 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | INVT GD200A-5R5G/7R5P-4 GD200A General Purpose AC Drive |
|---|---|
| Brand | INVT |
| Model | GD200A-5R5G/7R5P-4 |
| Category | Variable Frequency Drives |
| Input voltage | AC 3PH 380V (-15%)...440V (+10%) |
| Output frequency | 0...400 Hz |
| Overload capacity | G: 150% 1 min, 180% 10 s; P: 120% 1 min |
| Ingress protection | IP20 |
| Constant torque (G) output power | 5.5 kW |
| Variable torque (P) output power | 7.5 kW |
| Constant torque (G) input / output current | 19.5 / 14 A |
| Variable torque (P) input / output current | 25 / 18.5 A |
