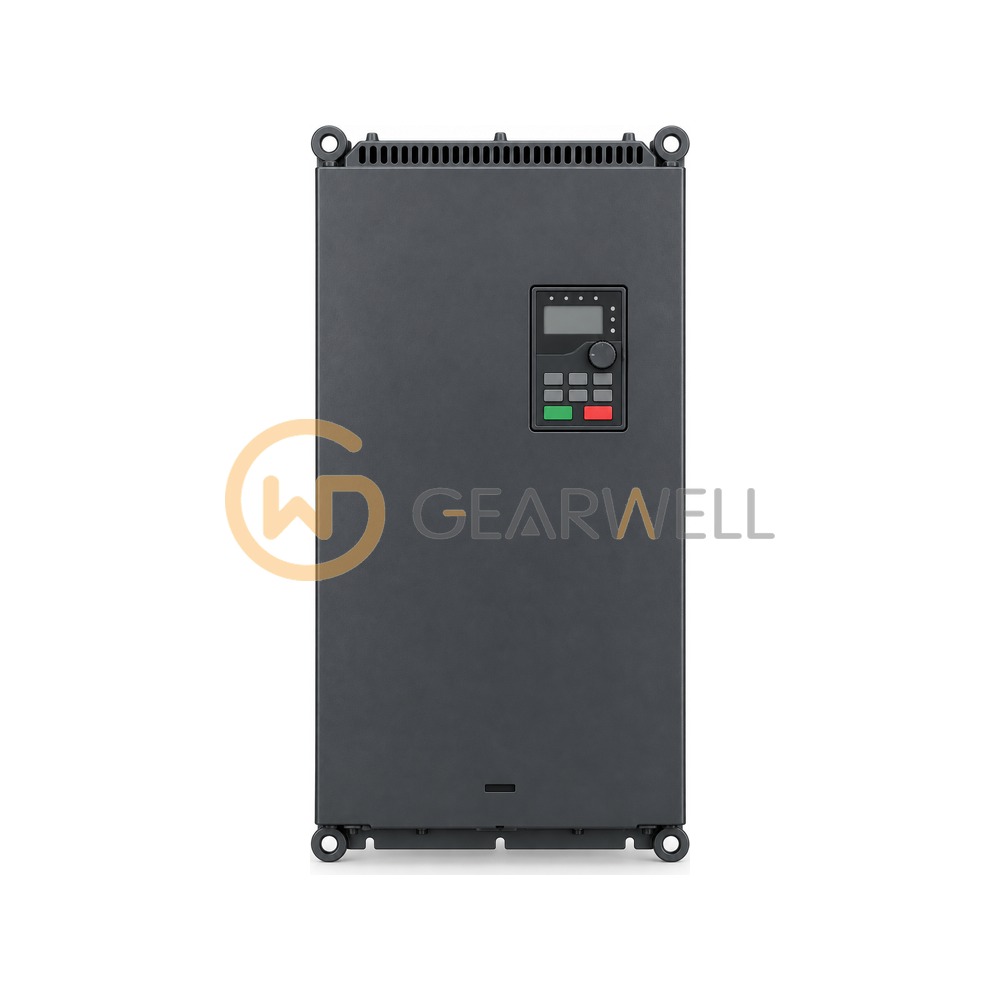

INVT GD200A-200G/220P-4 Goodrive200A General Purpose AC Drive
- Brand
- INVT
- Model
- GD200A-200G/220P-4
- GEARWELL SKU
- GWP-000016266
- Category
- Variable Frequency Drives
Key specifications
- Braking
- External braking unit optional (380 V 037G/045P and higher)
- Mounting
- Wall, flange or floor (with pedestal) mounting
- Net weight
- 85 kg
- Frame / housing
- Wall-mount housing 132G/160P–200G/220P (manual Fig. B-6)
- Input voltage
- AC 3PH 380 V (-15 %) to 440 V (+10 %), 47–63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | INVT GD200A-200G/220P-4 Goodrive200A General Purpose AC Drive |
|---|---|
| Brand | INVT |
| Model | GD200A-200G/220P-4 |
| Category | Variable Frequency Drives |
| Braking | External braking unit optional (380 V 037G/045P and higher) |
| Mounting | Wall, flange or floor (with pedestal) mounting |
| Net weight | 85 kg |
| Frame / housing | Wall-mount housing 132G/160P–200G/220P (manual Fig. B-6) |
| Input voltage | AC 3PH 380 V (-15 %) to 440 V (+10 %), 47–63 Hz |
| Output frequency | 0 to 400 Hz |
| Ingress protection | IP20 |
| Rated input current (G) | 385 A |
| Rated input current (P) | 430 A |
| Rated output current (G) | 380 A |
| Rated output current (P) | 425 A |
| Outline dimensions W × H × D | 500 × 872 × 368.4 mm |
| Full-load power dissipation | 3400 W |
| Rated output power (G, constant torque) | 200 kW |
| Rated output power (P, variable torque) | 220 kW |
