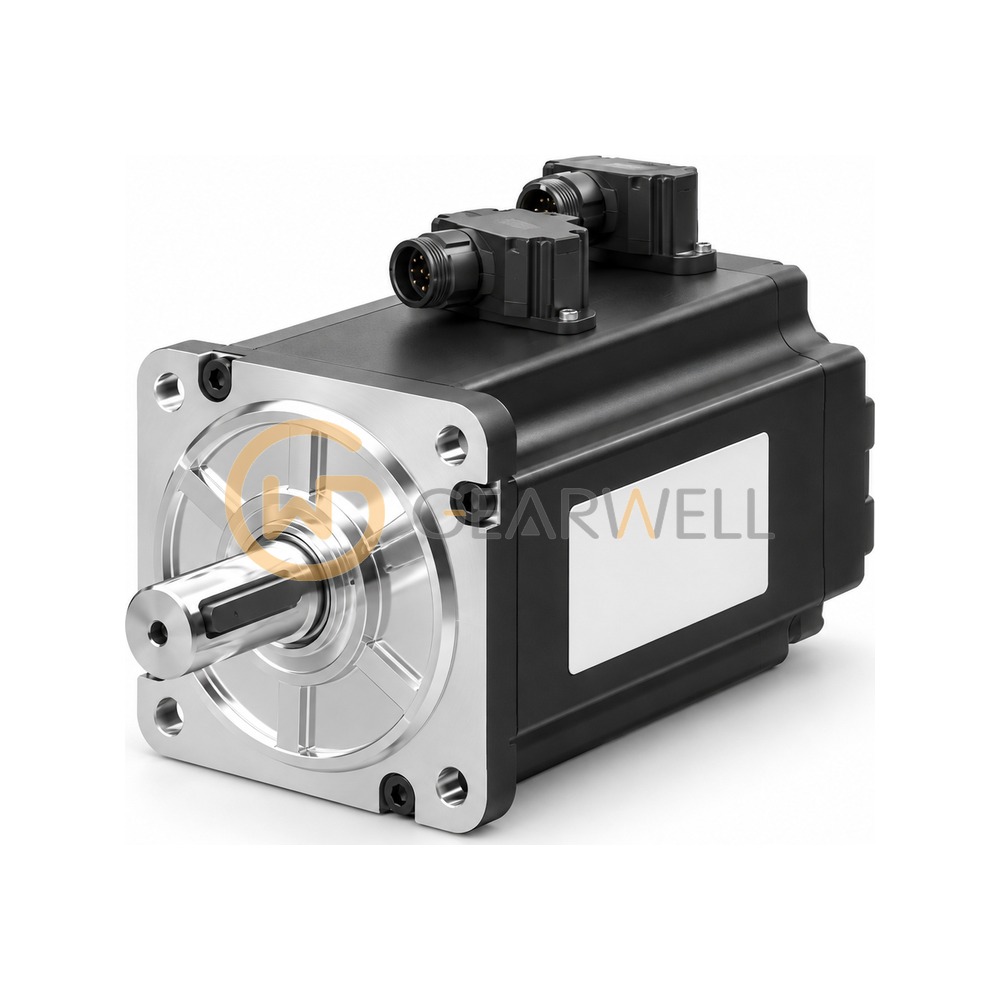

INOVANCE MS1H4-75B30CB-A331ZS MS1H4 Servo Motor 750W
- Brand
- INOVANCE
- Model
- MS1H4-75B30CB-A331ZS
- GEARWELL SKU
- GWP-000013370
- Category
- Servo Systems
Key specifications
- Encoder (A3)
- 23-bit single & multi-turn absolute
- Rated output
- 0.75 kW
- Code suffix "S"
- as collected; not a position in the MS1 brochure ordering key
- Rated / max. speed
- 3000 / 6000 r/min
- Shaft / brake (3, 1)
- Keyed + tapped hole; oil seal, no brake
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | INOVANCE MS1H4-75B30CB-A331ZS MS1H4 Servo Motor 750W |
|---|---|
| Brand | INOVANCE |
| Model | MS1H4-75B30CB-A331ZS |
| Category | Servo Systems |
| Encoder (A3) | 23-bit single & multi-turn absolute |
| Rated output | 0.75 kW |
| Code suffix "S" | as collected; not a position in the MS1 brochure ordering key |
| Rated / max. speed | 3000 / 6000 r/min |
| Shaft / brake (3, 1) | Keyed + tapped hole; oil seal, no brake |
| Voltage class (B) | 220 V |
| Rated / max. current | 4.8 / 16.9 A |
| Rated torque / peak torque | 2.39 / 8.36 Nm |
