IFM IIC224 Inductive full-metal sensor
- Brand
- IFM
- Model
- IIC224
- GEARWELL SKU
- GWP-000012415
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Connection
- Connector: 1 x M12; Contacts: gold-plated
- Dimensions
- M30 x 1.5 / L = 65 mm
- Protection
- IP 67; IP 68; ("Coolant")
- Sensing range
- 10 mm
- Output function
- normally open
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

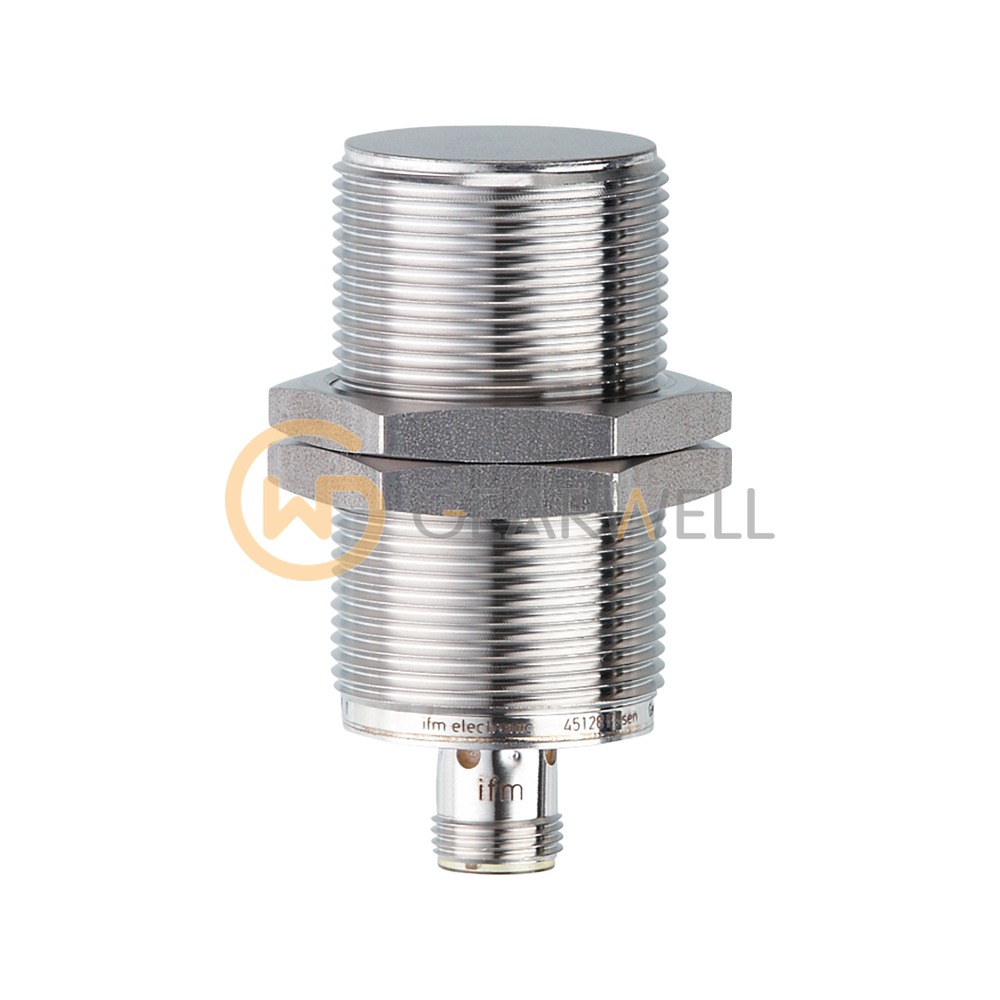

The ifm IIC224 (IIK3010-BPKG/AM/US-104) is an inductive full-metal proximity sensor in an M30 x 1.5 threaded housing 65 mm long, for flush mounting. Its rated sensing range is 10 mm. The operating distance on steel is 0…8.1 mm. The PNP switching output is normally open, rated at 100 mA and up to 50 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.6 for stainless steel, 0.8 for brass, 0.6 for aluminum and 0.2 for copper. The sensor has a stainless steel (1.4404 / 316L) housing with a stainless steel (1.4404 / 316L) sensing face, connects through an M12 connector (A-coded, 3 gold-plated contacts) and is rated IP67 and IP68 for -25…70 °C ambient. The sensing face withstands 100 bar, ifm lists it for use with oils and coolants and it has UL approval under file E174191. Two lock nuts are included.
Technical reference
| Product name | IFM IIC224 Inductive full-metal sensor |
|---|---|
| Brand | IFM |
| Model | IIC224 |
| Category | Proximity & Photoelectric Sensors |
| Connection | Connector: 1 x M12; Contacts: gold-plated |
| Dimensions | M30 x 1.5 / L = 65 mm |
| Protection | IP 67; IP 68; ("Coolant") |
| Sensing range | 10 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...30 V DC |
| Switching frequency DC | 50 Hz |
