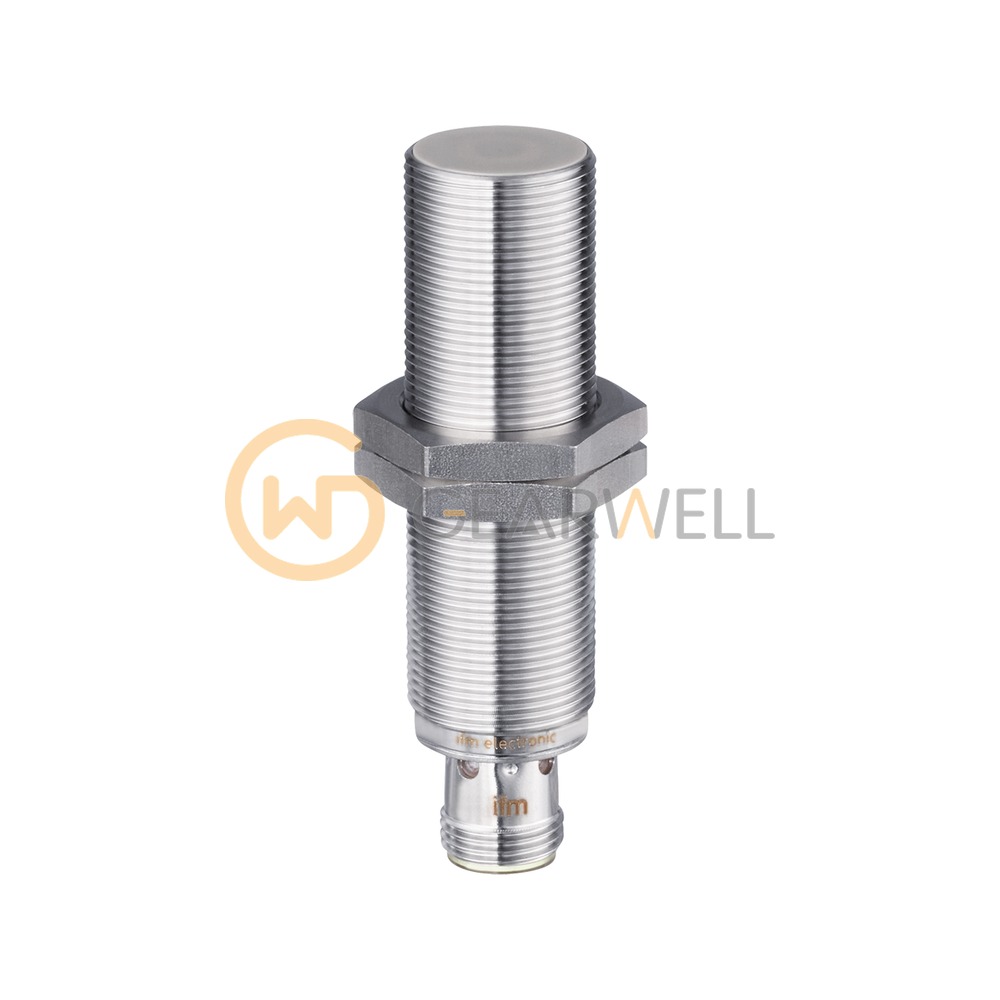

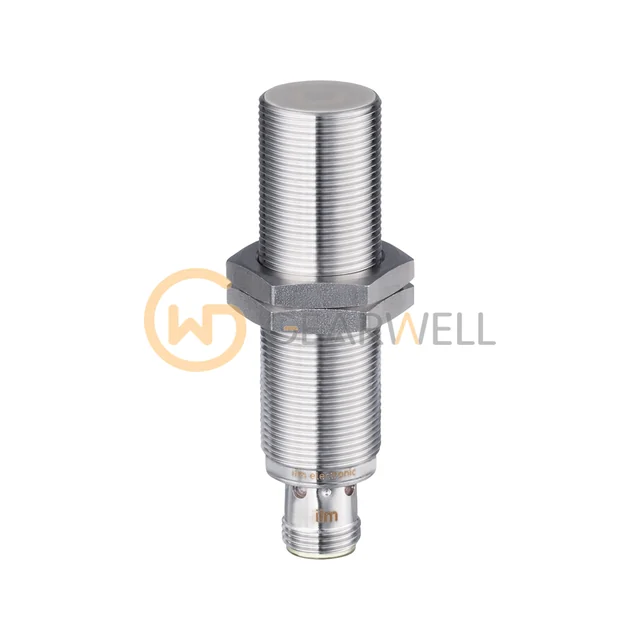

IFM IGT219 IGK3008BBPKG/V4A/US-104 Inductive Sensor

Product overview

The ifm IGT219 (IGK3008BBPKG/V4A/US-104) is an inductive proximity sensor in an M18 x 1 threaded housing 70 mm long, for flush mounting. Its rated sensing range is 8 mm. The real sensing range is 8 mm ± 10% and the operating distance on steel is 0…6.48 mm. The PNP switching output is normally open, rated at 100 mA and up to 400 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a stainless steel (1.4404 / 316L) housing with a natural PEEK sensing face, connects through an M12 connector (A-coded, 3 gold-plated contacts) and is rated IP68 and IP69K for 0…100 °C ambient. ifm lists it for hygienic areas with regular cleaning and it has UL approval under file E174191. Two lock nuts are included.
