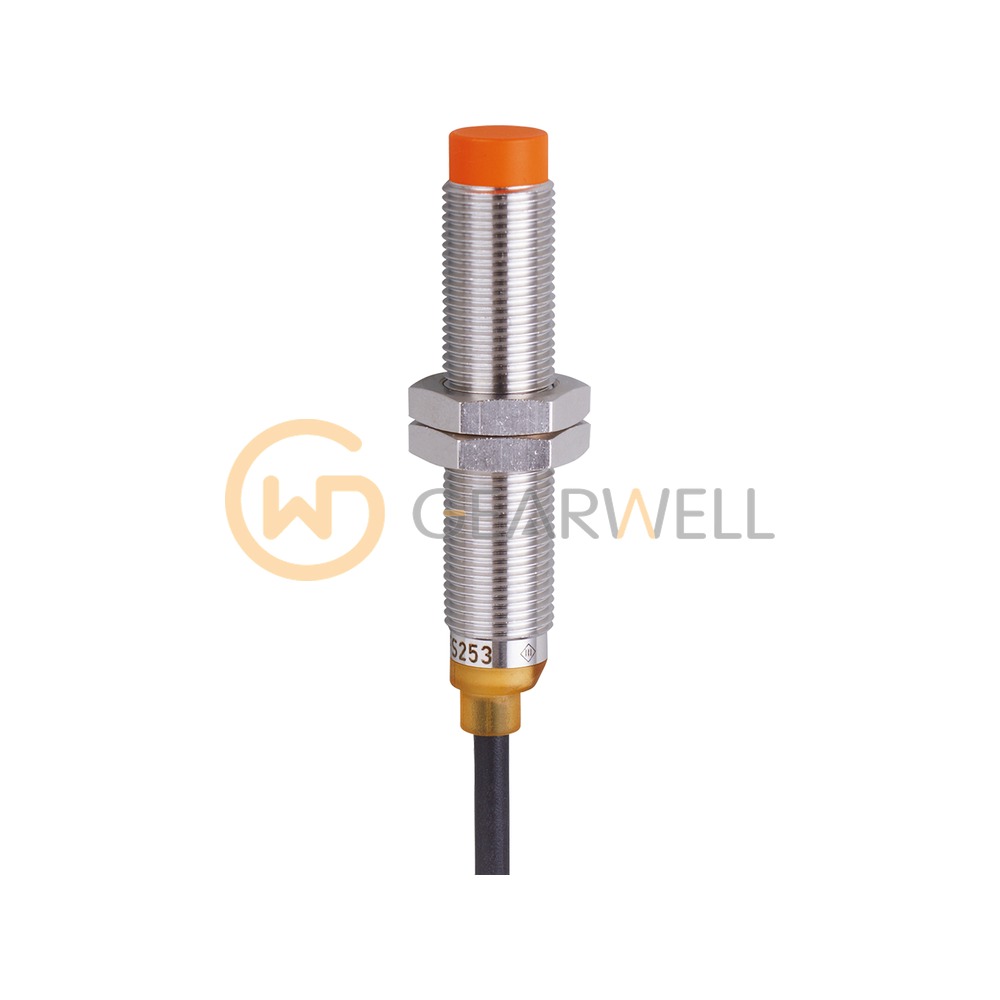

IFM IF7107 IFK3004-ANKG/2M/PUR Inductive Sensor

Product overview

The ifm IF7107 (IFK3004-ANKG/2M/PUR) is an inductive proximity sensor in an M12 x 1 threaded housing 60 mm long, for non-flush mounting. Its rated sensing range is 4 mm. The real sensing range is 4 mm ± 10% and the operating distance on steel is 0…3.24 mm. The NPN switching output is normally open, rated at 100 mA and up to 800 Hz on 10…30 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.5 for brass, 0.4 for aluminum and 0.3 for copper. The sensor has a white-bronze-coated brass housing with an orange PBT sensing face, connects through a 2 m PUR, Ø 4.0 mm cable with 3 x 0.34 mm² conductors and is rated IP67 for -25…75 °C ambient. It has UL approval under file E174191. Two lock nuts are included.
