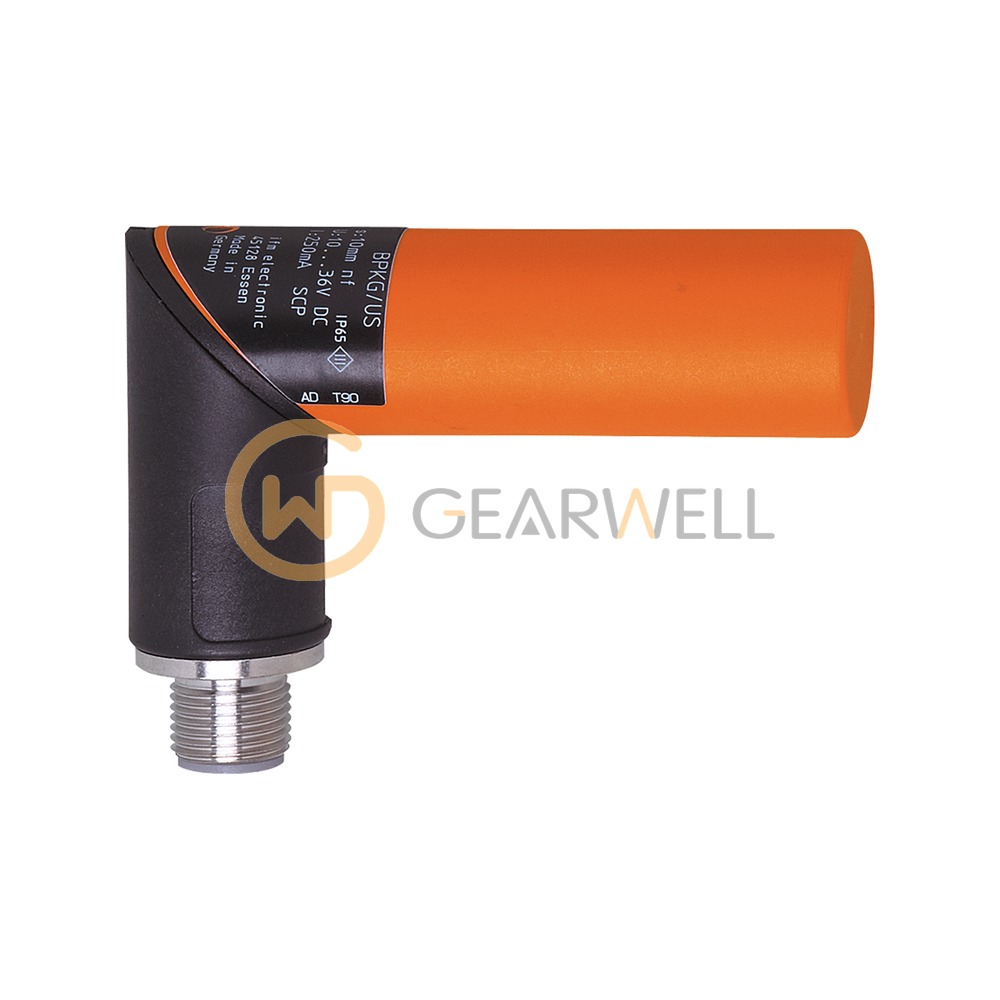

IFM IA5130 IAE3010-BPKG/US-100/ANGLED Inductive Sensor
- Brand
- IFM
- Model
- IA5130
- GEARWELL SKU
- GWP-000008653
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- Ø 20 / L = 72 mm
- Protection
- IP 65
- Sensing range
- 10 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm IA5130 (IAE3010-BPKG/US-100/ANGLED) is an inductive proximity sensor in a smooth tubular Ø 20 mm housing 72 mm long, for non-flush mounting. Its rated sensing range is 10 mm. The real sensing range is 10 mm ± 10% and the operating distance on steel is 0…8.1 mm. The PNP switching output is normally open, rated at 250 mA and up to 300 Hz on 10…36 V DC, with reverse polarity and short-circuit protection. On other metals the distance is reduced by ifm's correction factors: 0.7 for stainless steel, 0.4 for brass, 0.3 for aluminum and 0.2 for copper. The sensor has a PBT housing, connects through an M12 connector (A-coded, 4 contacts) and is rated IP65 for -25…80 °C ambient. Supplied with one mounting clamp.
Technical reference
| Product name | IFM IA5130 IAE3010-BPKG/US-100/ANGLED Inductive Sensor |
|---|---|
| Brand | IFM |
| Model | IA5130 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | Ø 20 / L = 72 mm |
| Protection | IP 65 |
| Sensing range | 10 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...36 DC V |
| Current consumption | 15 (24 V) mA |
| Switching frequency DC | 300 Hz |
