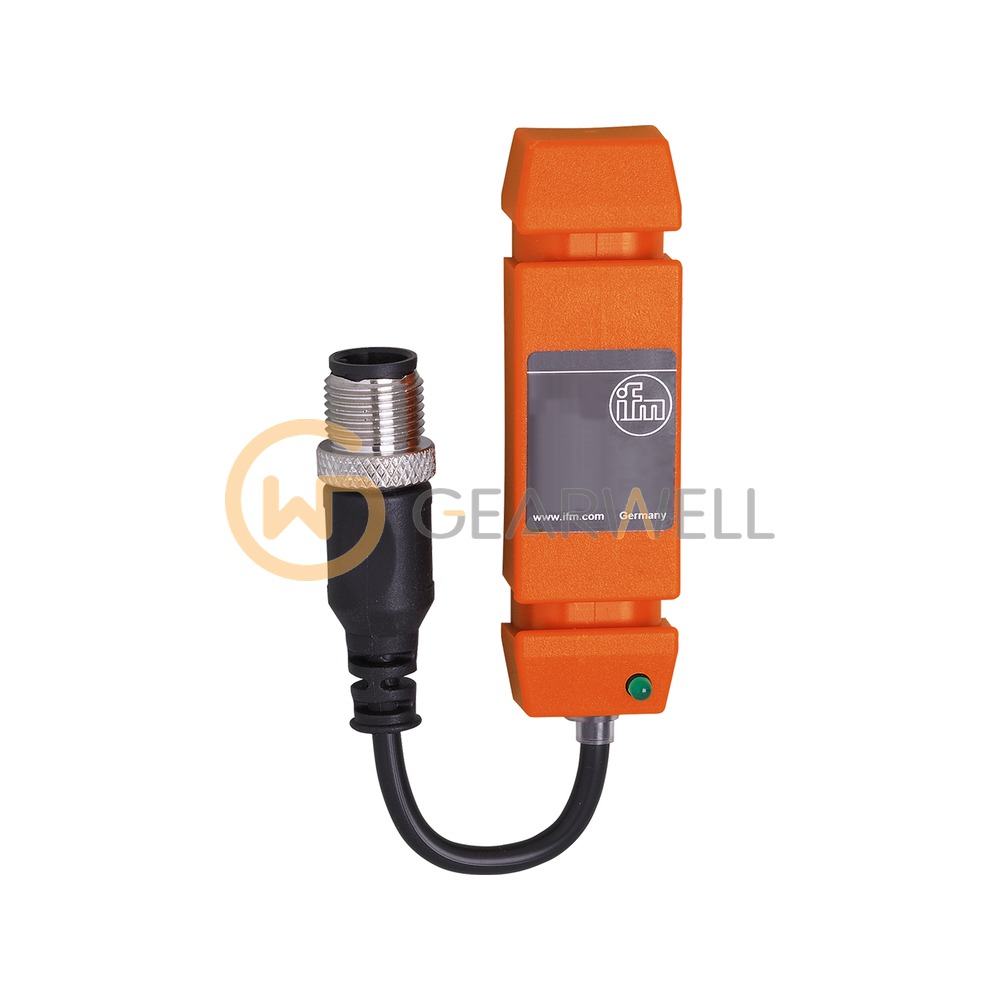

IFM I85009 I8-3020-BPKG/DY/0,09M/US100DPS Inductive Tube Sensor
- Brand
- IFM
- Model
- I85009
- GEARWELL SKU
- GWP-000008652
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Dimensions
- 70 x 20 x 12 mm
- Protection
- IP 67
- Sensing range
- < 14 mm
- Output function
- normally open
- Electrical design
- PNP
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ifm I85009 (I8-3020-BPKG/DY/0,09M/US100DPS) is an inductive tube sensor in a rectangular housing measuring 70 x 20 x 12 mm. Parts passing through its opening are detected over a sensing range of up to 14 mm; ifm gives a resolution of a 3 mm steel ball, a maximum part speed of 25 m/s, a response time of under 0.2 ms and pulse stretching of 100 ms. The PNP switching output is normally open, rated at 200 mA on 10…35 V DC, with reverse polarity and short-circuit protection. The sensor has a PC housing, connects through an M12 connector (A-coded, 4 contacts) and is rated IP67 for -25…70 °C ambient. It has UL approval under file E174191. Supplied with two fixing straps.
Technical reference
| Product name | IFM I85009 I8-3020-BPKG/DY/0,09M/US100DPS Inductive Tube Sensor |
|---|---|
| Brand | IFM |
| Model | I85009 |
| Category | Proximity & Photoelectric Sensors |
| Dimensions | 70 x 20 x 12 mm |
| Protection | IP 67 |
| Sensing range | < 14 mm |
| Output function | normally open |
| Electrical design | PNP |
| Operating voltage | 10...35 DC V |
| Ambient temperature | -25...70 °C |
| Current consumption | < 25 mA |
