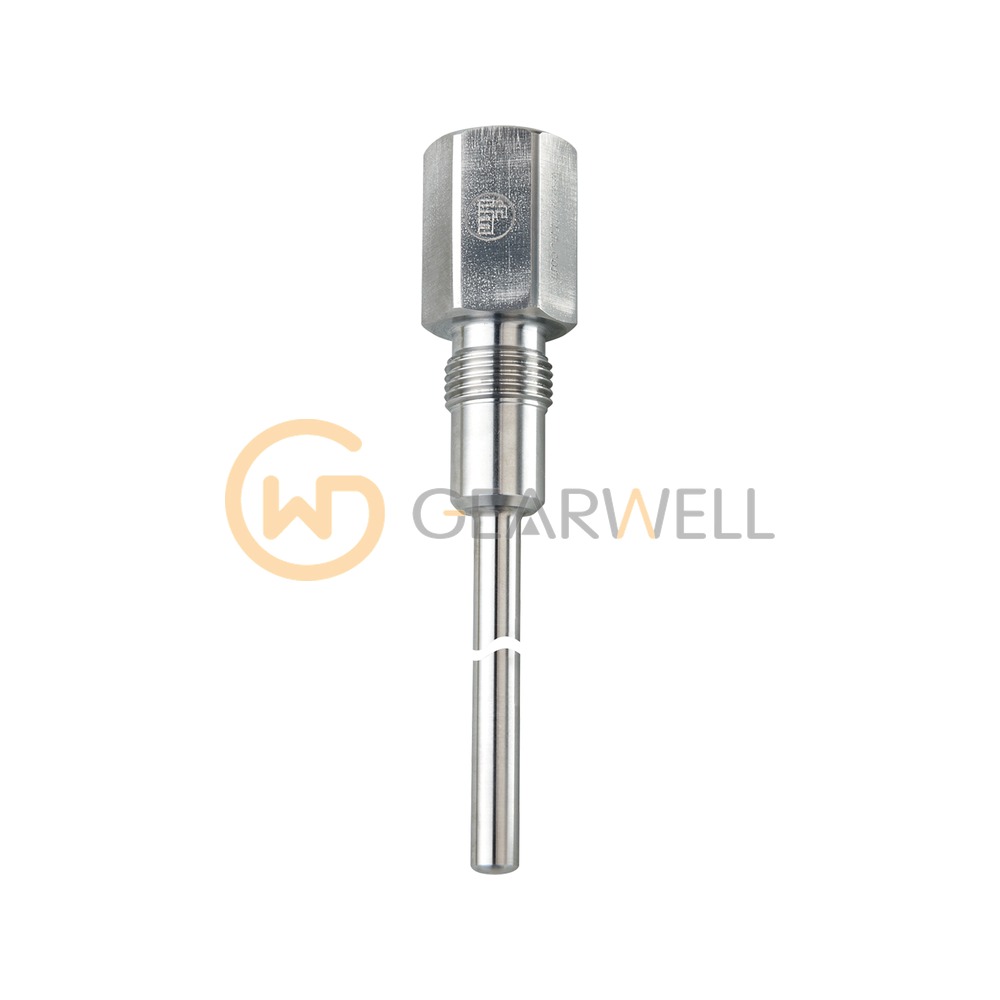

IFM E37521 Thermowell for temperature sensors
- Brand
- IFM
- Model
- E37521
- GEARWELL SKU
- GWP-000016689
- Category
- Pressure, Flow & Temperature
Key specifications
- Design
- for temperature sensors EL = 150 mm
- Weight
- 197.5 g
- Material
- stainless steel (1.4404 / 316L)
- Pressure rating
- 16 bar / 1.6 MPa
- Sensor connection
- G 1/2 sealing cone Ø 6 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | IFM E37521 Thermowell for temperature sensors |
|---|---|
| Brand | IFM |
| Model | E37521 |
| Category | Pressure, Flow & Temperature |
| Design | for temperature sensors EL = 150 mm |
| Weight | 197.5 g |
| Material | stainless steel (1.4404 / 316L) |
| Pressure rating | 16 bar / 1.6 MPa |
| Sensor connection | G 1/2 sealing cone Ø 6 mm |
| Process connection | G 1/2 external thread sealing cone |
| Installation length EL | 118 mm |
| Surface characteristics Ra/Rz of the wetted parts | Ra < 0.6 µm |
