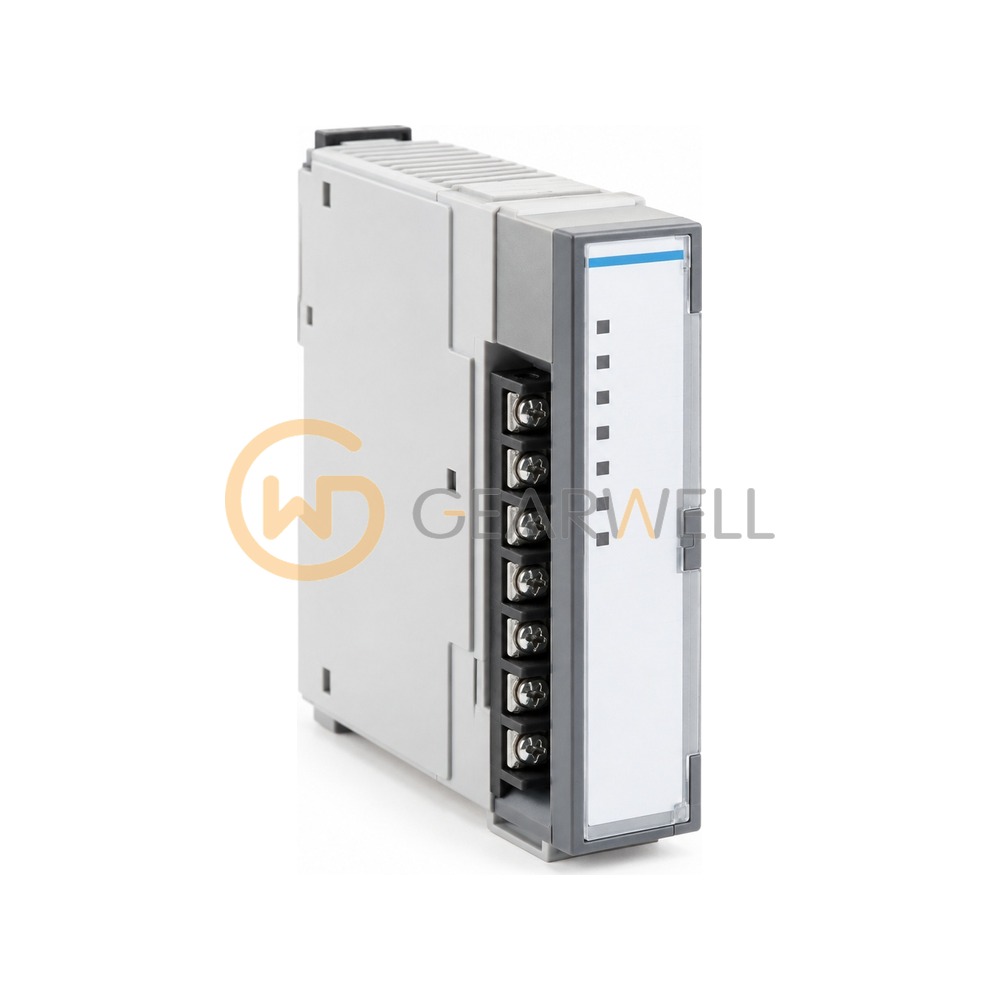

HONEYWELL TK-OAV061 Series A 6-Ch Voltage Analog Output Module, Coated
- Brand
- HONEYWELL
- Model
- TK-OAV061
- GEARWELL SKU
- GWP-000026330
- Category
- PLCs & I/O
Key specifications
- Evidence
- Honeywell EP03-110-400 V2 Jan 2012, Experion LS I/O Specifications (hosted at nordwel.com)
- Terminal block
- TC-TBNH, 20-position
- Number of points
- 6 galvanically isolated channels
- Uncoated version
- TC-OAV061
- Power dissipation
- 4.9 W max
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HONEYWELL TK-OAV061 Series A 6-Ch Voltage Analog Output Module, Coated |
|---|---|
| Brand | HONEYWELL |
| Model | TK-OAV061 |
| Category | PLCs & I/O |
| Evidence | Honeywell EP03-110-400 V2 Jan 2012, Experion LS I/O Specifications (hosted at nordwel.com) |
| Terminal block | TC-TBNH, 20-position |
| Number of points | 6 galvanically isolated channels |
| Uncoated version | TC-OAV061 |
| Power dissipation | 4.9 W max |
| Module update rate | 25 ms |
| Voltage resolution | 14 bits across 21 V (1.4 mV) |
| Output settling time | less than 2 ms to 95% (resistive loads) |
| Output voltage range | ±10.50 VDC into loads of 1 kΩ or larger |
| Calibrated accuracy @ 25 °C | better than 0.1% of range |
