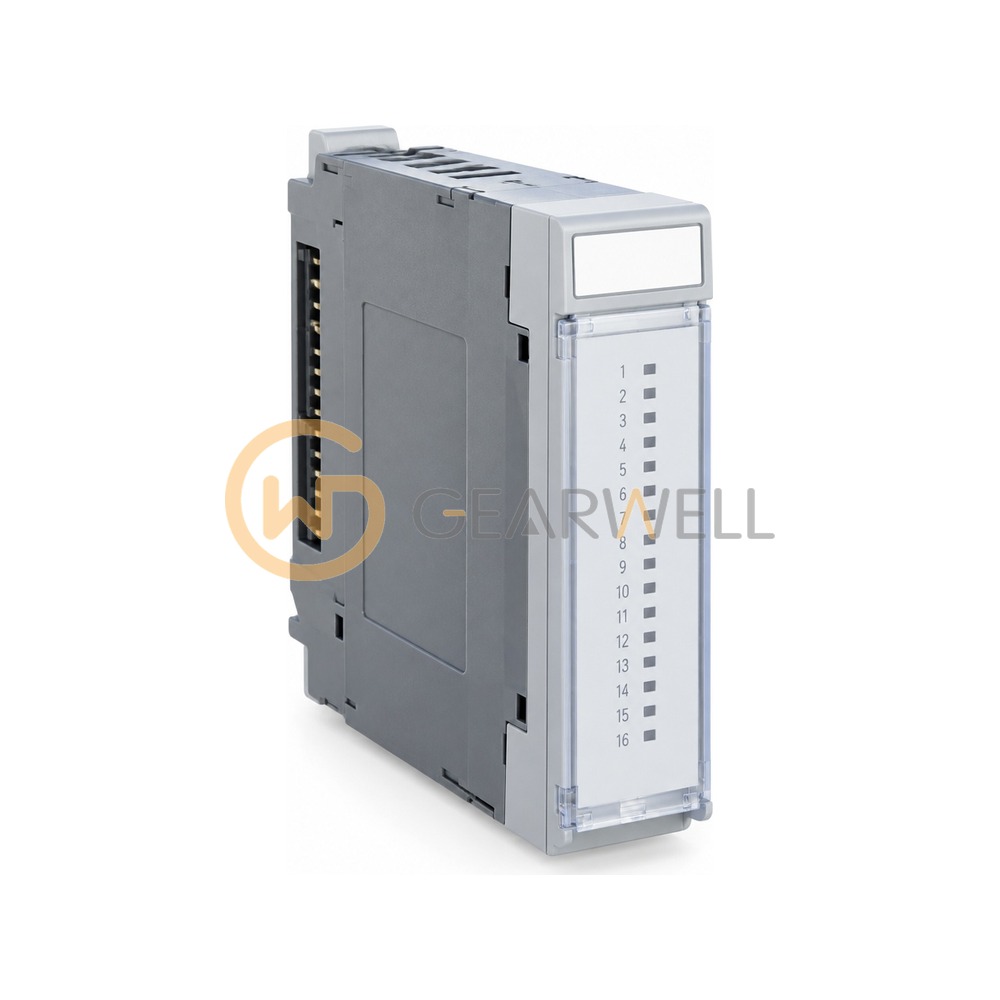

HONEYWELL TC-IAH161 Chassis Series A 16-Ch Analog Input Module
- Brand
- HONEYWELL
- Model
- TC-IAH161
- GEARWELL SKU
- GWP-000026325
- Category
- PLCs & I/O
Key specifications
- Evidence
- Honeywell EP03-110-400 V2 Jan 2012, Experion LS I/O Specifications (hosted at nordwel.com)
- Resolution
- 16 bits across each range
- Coated version
- TK-IAH161
- Number of points
- 16 channels
- Current input range
- 0 to 20.5 mA (internal 250 Ω resistor)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HONEYWELL TC-IAH161 Chassis Series A 16-Ch Analog Input Module |
|---|---|
| Brand | HONEYWELL |
| Model | TC-IAH161 |
| Category | PLCs & I/O |
| Evidence | Honeywell EP03-110-400 V2 Jan 2012, Experion LS I/O Specifications (hosted at nordwel.com) |
| Resolution | 16 bits across each range |
| Coated version | TK-IAH161 |
| Number of points | 16 channels |
| Current input range | 0 to 20.5 mA (internal 250 Ω resistor) |
| Module publish rate | 250 ms |
| Terminal block pins | 36 |
| Voltage input ranges | ±10.25 V, 0 to 10.25 V, 0 to 5.125 V |
| Calibrated accuracy @ 25 °C | better than 0.05% of range (voltage); better than 0.15% incl. sense resistor (current) |
