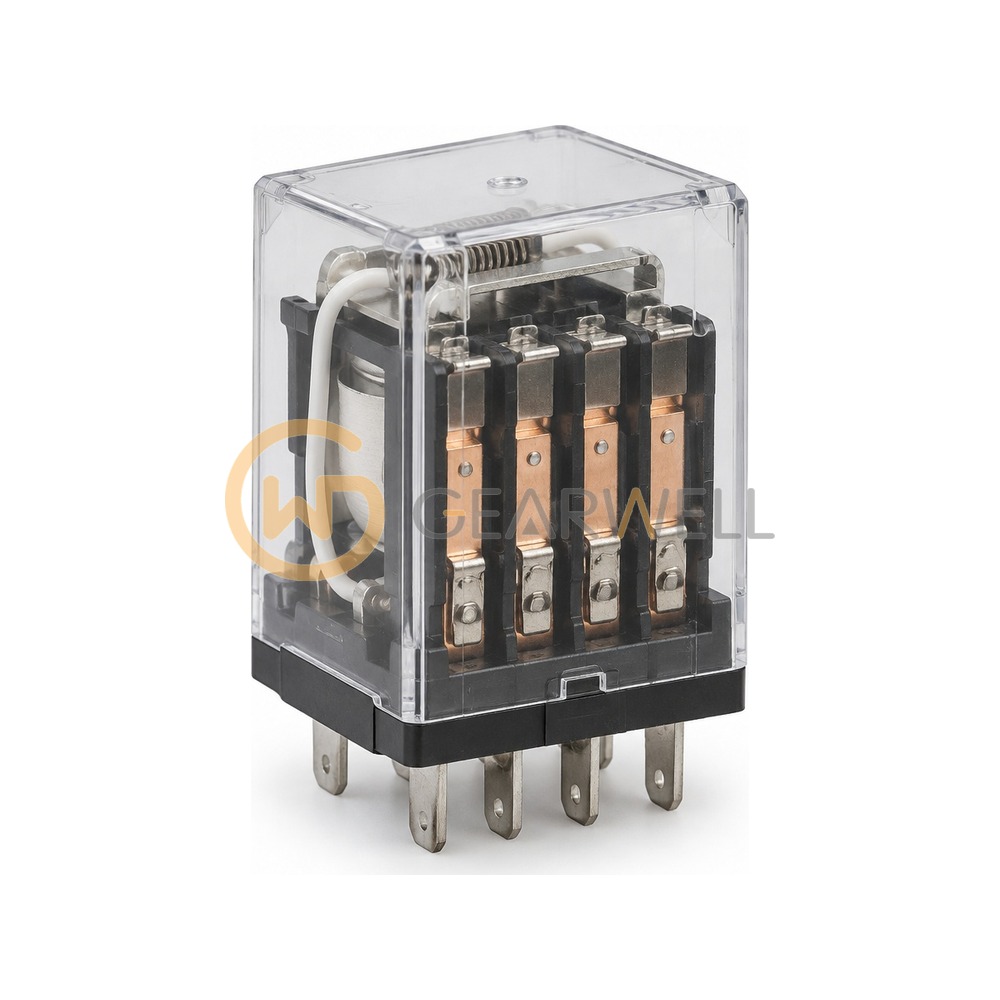

HONEYWELL GR-4C-AC230V General Purpose Relay 4PDT 230 V AC
- Brand
- HONEYWELL
- Model
- GR-4C-AC230V
- GEARWELL SKU
- GWP-000034626
- Category
- Contactors & Starters
Key specifications
- Pins
- 16
- Evidence
- Distributor only: LCSC part C477084 (Honeywell GR-4C-AC230V)
- Footprint
- 28 x 21.5 mm
- Coil voltage
- 230 V AC
- Contact form
- 4 Form C (4PDT)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HONEYWELL GR-4C-AC230V General Purpose Relay 4PDT 230 V AC |
|---|---|
| Brand | HONEYWELL |
| Model | GR-4C-AC230V |
| Category | Contactors & Starters |
| Pins | 16 |
| Evidence | Distributor only: LCSC part C477084 (Honeywell GR-4C-AC230V) |
| Footprint | 28 x 21.5 mm |
| Coil voltage | 230 V AC |
| Contact form | 4 Form C (4PDT) |
| Contact rating | 5 A @ 250 VAC; 5 A @ 30 VDC |
| Coil resistance | 15 kΩ |
| Contact material | Silver alloy |
| Operate / release time | 20 / 20 ms |
| Operating temperature | -55 to +70 °C |
