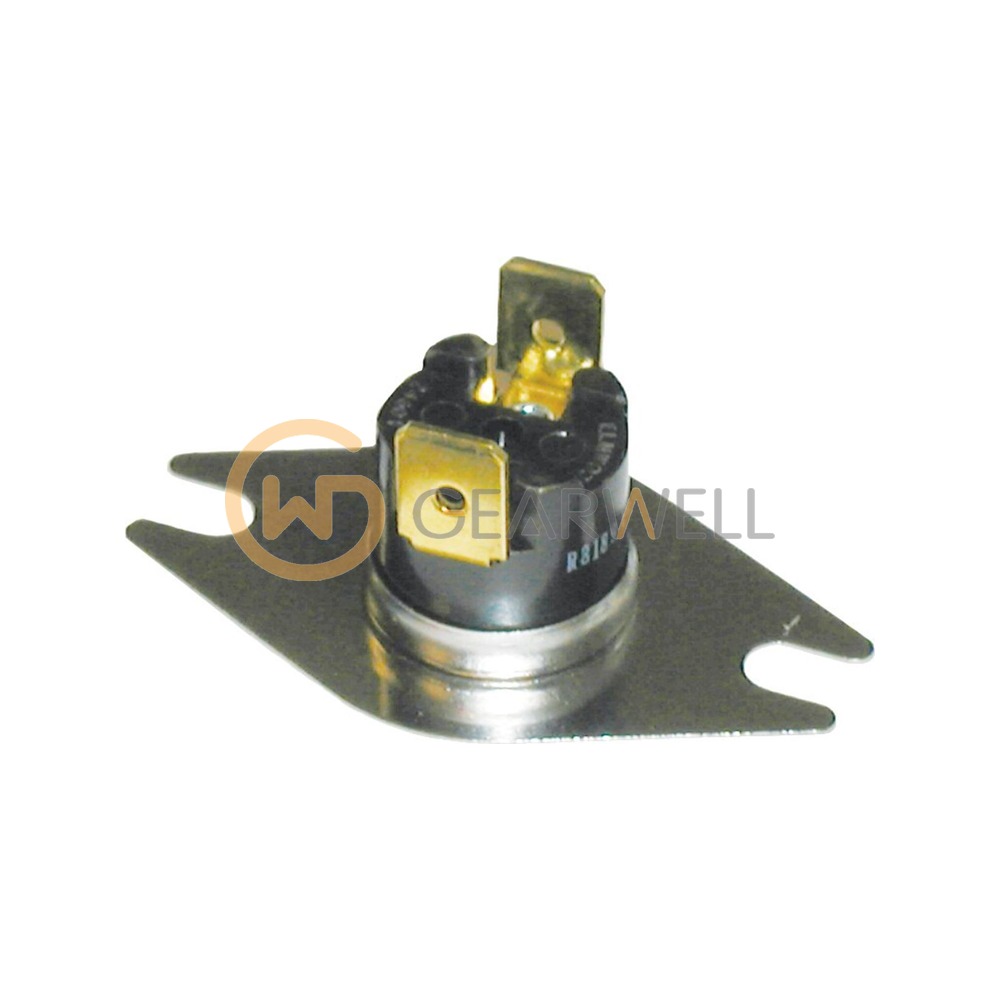

HONEYWELL 2455R-100-74 2455R Bimetal Disc Thermostat
- Brand
- HONEYWELL
- Model
- 2455R-100-74
- GEARWELL SKU
- GWP-000016934
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- 2455R (phenolic, automatic reset)
- Voltage
- 120 to 250 Vac
- Approvals
- UL File MH8267, E36103; CSA File LR21048
- Reset type
- Automatic
- Switch type
- SPST, normally closed, snap-acting bimetal disc
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HONEYWELL 2455R-100-74 2455R Bimetal Disc Thermostat |
|---|---|
| Brand | HONEYWELL |
| Model | 2455R-100-74 |
| Category | Pressure, Flow & Temperature |
| Series | 2455R (phenolic, automatic reset) |
| Voltage | 120 to 250 Vac |
| Approvals | UL File MH8267, E36103; CSA File LR21048 |
| Reset type | Automatic |
| Switch type | SPST, normally closed, snap-acting bimetal disc |
| Contact rating | 15 A resistive at 120 Vac; 10 A resistive at 240 Vac |
| Code suffix "100-74" | as collected; terminal/bracket and customer-specific setpoint positions are not decoded in the official nomenclature |
| Operating temperature range (series) | 0 to 150 °C |
