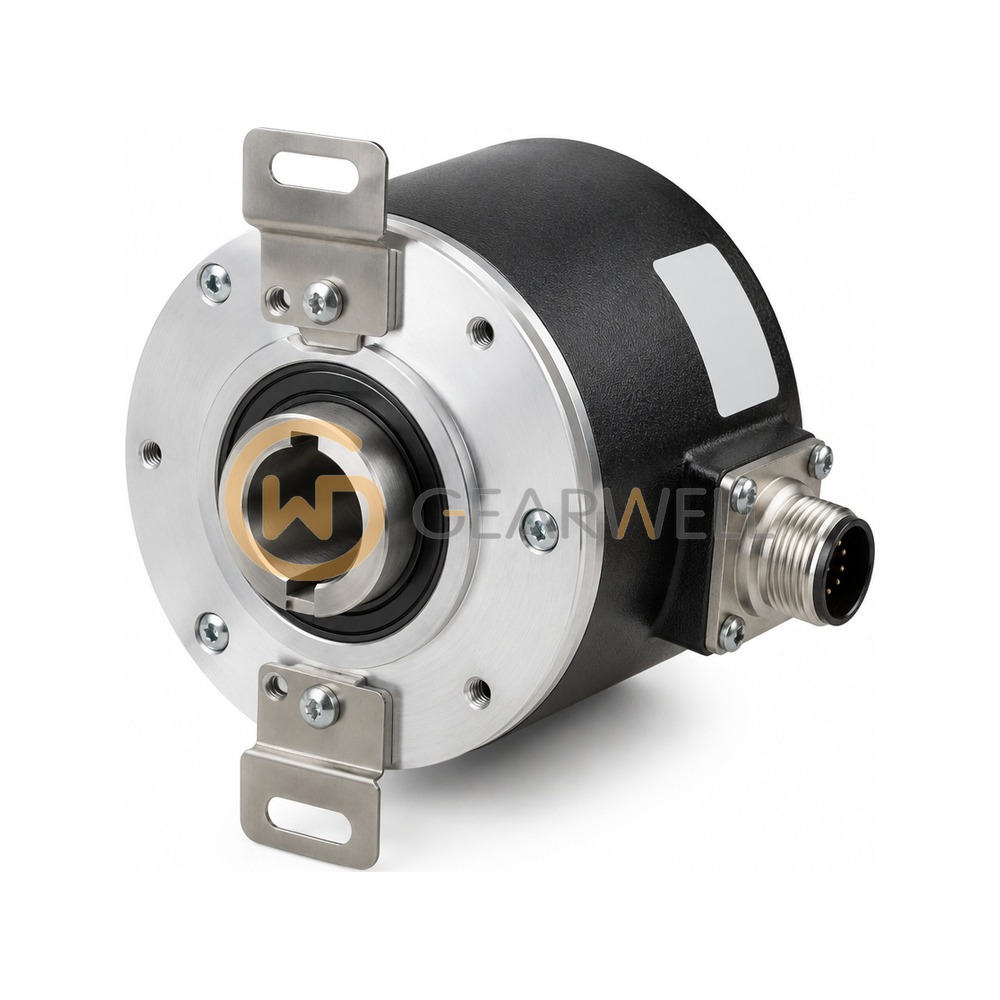

HENGSTLER RI58TD/250ED.37KX-C0-S RI 58TD Incremental Encoder
- Brand
- HENGSTLER
- Model
- RI58TD/250ED.37KX-C0-S
- GEARWELL SKU
- GWP-000034443
- Category
- Encoders & Position
Key specifications
- Output (code K)
- Push-pull (A, B, N, Alarm)
- Shaft (code D.37)
- Through hollow shaft 12 mm, clamping ring front, IP64
- Code suffix "-C0-S"
- as collected (digit zero, consistent with cable-length code style -D0/-F0); not listed in the official model-number table
- Housing diameter
- 58 mm
- Number of pulses
- 250 ppr
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | HENGSTLER RI58TD/250ED.37KX-C0-S RI 58TD Incremental Encoder |
|---|---|
| Brand | HENGSTLER |
| Model | RI58TD/250ED.37KX-C0-S |
| Category | Encoders & Position |
| Output (code K) | Push-pull (A, B, N, Alarm) |
| Shaft (code D.37) | Through hollow shaft 12 mm, clamping ring front, IP64 |
| Code suffix "-C0-S" | as collected (digit zero, consistent with cable-length code style -D0/-F0); not listed in the official model-number table |
| Housing diameter | 58 mm |
| Number of pulses | 250 ppr |
| Connection code "X" | as collected; not listed in the official ordering table (B/F cable, D/H M23 connector) |
| Operating temperature | -25 to +100 °C |
| Supply voltage (code E) | DC 10-30 V |
| Max. pulse frequency (push-pull) | 200 kHz |
| Max. speed (through hollow shaft) | 4000 rpm |
