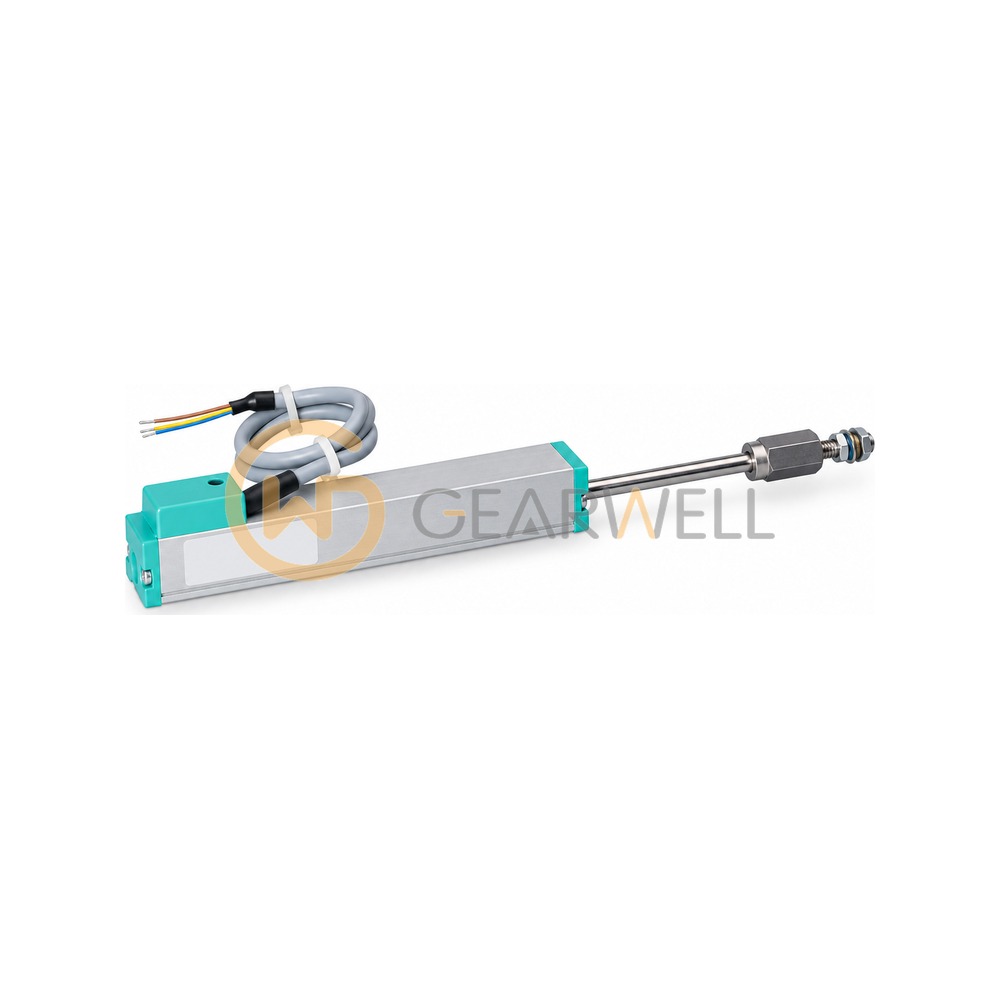

GEFRAN PA1-050-S2M PA1 Rectilinear Displacement Transducer 50 mm
- Brand
- GEFRAN
- Model
- PA1-050-S2M
- GEARWELL SKU
- GWP-000013387
- Category
- Encoders & Position
Key specifications
- Output
- not stated in the collected code: F = cable output / C = 5-pole DIN 43322 connector (specify on order)
- Series
- PA1 rectilinear displacement transducer
- Cable length
- S2M as collected (datasheet code S..M = cable length in metres)
- Total length (B)
- 163.2 mm
- Protection level
- IP40
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GEFRAN PA1-050-S2M PA1 Rectilinear Displacement Transducer 50 mm |
|---|---|
| Brand | GEFRAN |
| Model | PA1-050-S2M |
| Category | Encoders & Position |
| Output | not stated in the collected code: F = cable output / C = 5-pole DIN 43322 connector (specify on order) |
| Series | PA1 rectilinear displacement transducer |
| Cable length | S2M as collected (datasheet code S..M = cable length in metres) |
| Total length (B) | 163.2 mm |
| Protection level | IP40 |
| Mechanical stroke | 50 + 5 mm |
| Displacement speed | ≤ 5 m/s |
| Dissipation at 40 °C | 1.2 W |
| Working temperature | -30 to +100 °C |
| Mounting brackets options | standard PKIT005 / optional PKIT006 (specify on order) |
| Useful electrical stroke (C.E.U.) | 50 mm |
