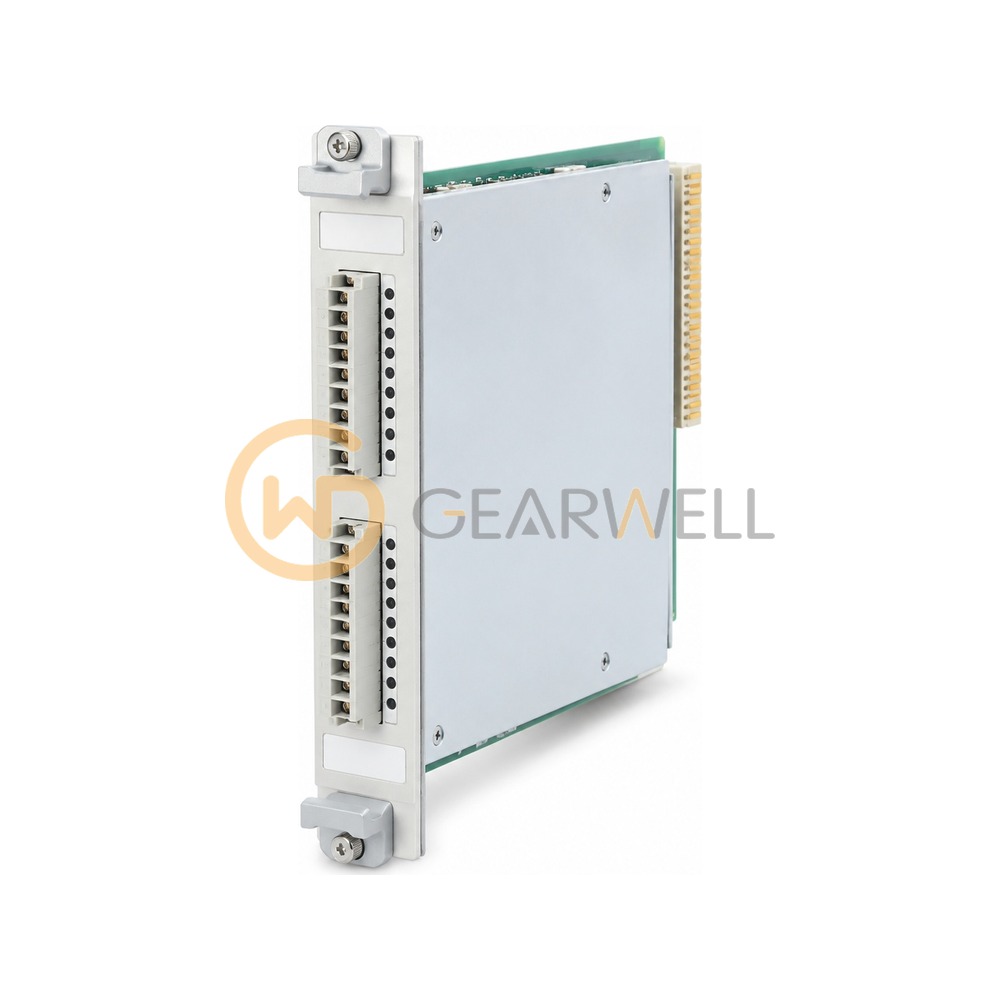

GE UR6TH Multilin UR 6T Digital I/O Module, 4 Form-A Out / 8 In

Key specifications

Evidence: GE Vernova C30 instruction manual 1601-0088-AL2, Table 2-7 replacement modules (module 6T); full code UR-6TH: AX Control
Order code: UR-6TH (module option 6T)
Module option 6T: 4 Form-A (no monitoring) outputs, 8 contact inputs
Form-A operate time: < 4 ms
Unit mounting letter: H (horizontal-mount UR chassis; GE UR order codes use H/V for horizontal/vertical mounting)

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	GE UR6TH Multilin UR 6T Digital I/O Module, 4 Form-A Out / 8 In
Brand	GE
Model	UR6TH
Category	PLCs & I/O
Evidence	GE Vernova C30 instruction manual 1601-0088-AL2, Table 2-7 replacement modules (module 6T); full code UR-6TH: AX Control
Order code	UR-6TH (module option 6T)
Module option 6T	4 Form-A (no monitoring) outputs, 8 contact inputs
Form-A operate time	< 4 ms
Unit mounting letter	H (horizontal-mount UR chassis; GE UR order codes use H/V for horizontal/vertical mounting)
Form-A carry continuous	6 A
Contact input thresholds	17 V, 33 V, 84 V, 166 V (selectable)
Contact input wet contacts	300 V DC maximum
Form-A make and carry (0.2 s)	30 A as per ANSI C37.90
Contact input recognition time	< 1 ms
