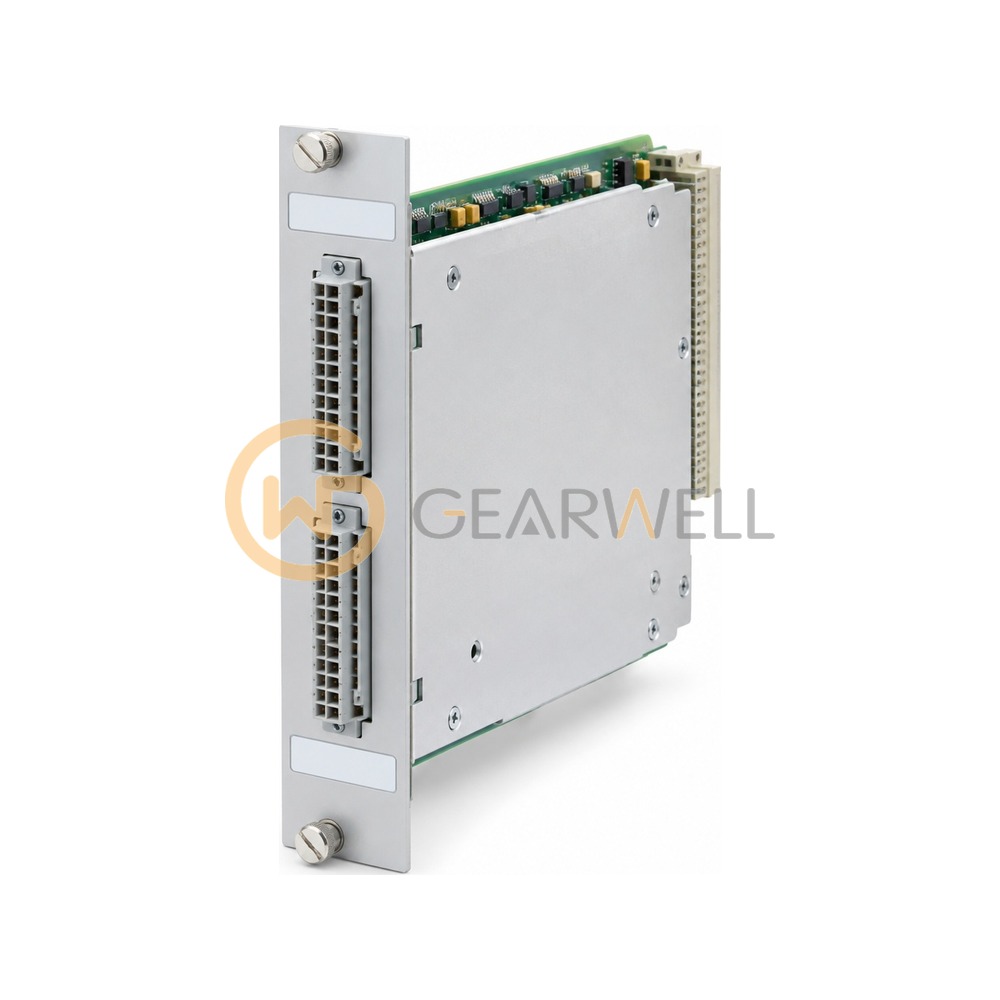

GE UR6EV Multilin UR 6E Digital I/O Module, Vertical

Key specifications

Evidence: GE Vernova C30 instruction manual 1601-0088-AL2, Table 2-8 UR order codes for replacement modules, vertical units
Unit type: vertical units
Module option 6E: 4 Form-C outputs, 8 contact inputs
Form-C operate time: < 8 ms
Form-C carry continuous: 8 A

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	GE UR6EV Multilin UR 6E Digital I/O Module, Vertical
Brand	GE
Model	UR6EV
Category	PLCs & I/O
Evidence	GE Vernova C30 instruction manual 1601-0088-AL2, Table 2-8 UR order codes for replacement modules, vertical units
Unit type	vertical units
Module option 6E	4 Form-C outputs, 8 contact inputs
Form-C operate time	< 8 ms
Form-C carry continuous	8 A
Contact input wet contacts	300 V DC maximum
Form-C make and carry (0.2 s)	30 A as per ANSI C37.90
Replacement module order code	UR-6E-V (format UR-*-)
Contact input recognition time	< 1 ms
Contact input selectable thresholds	17 V, 33 V, 84 V, 166 V
