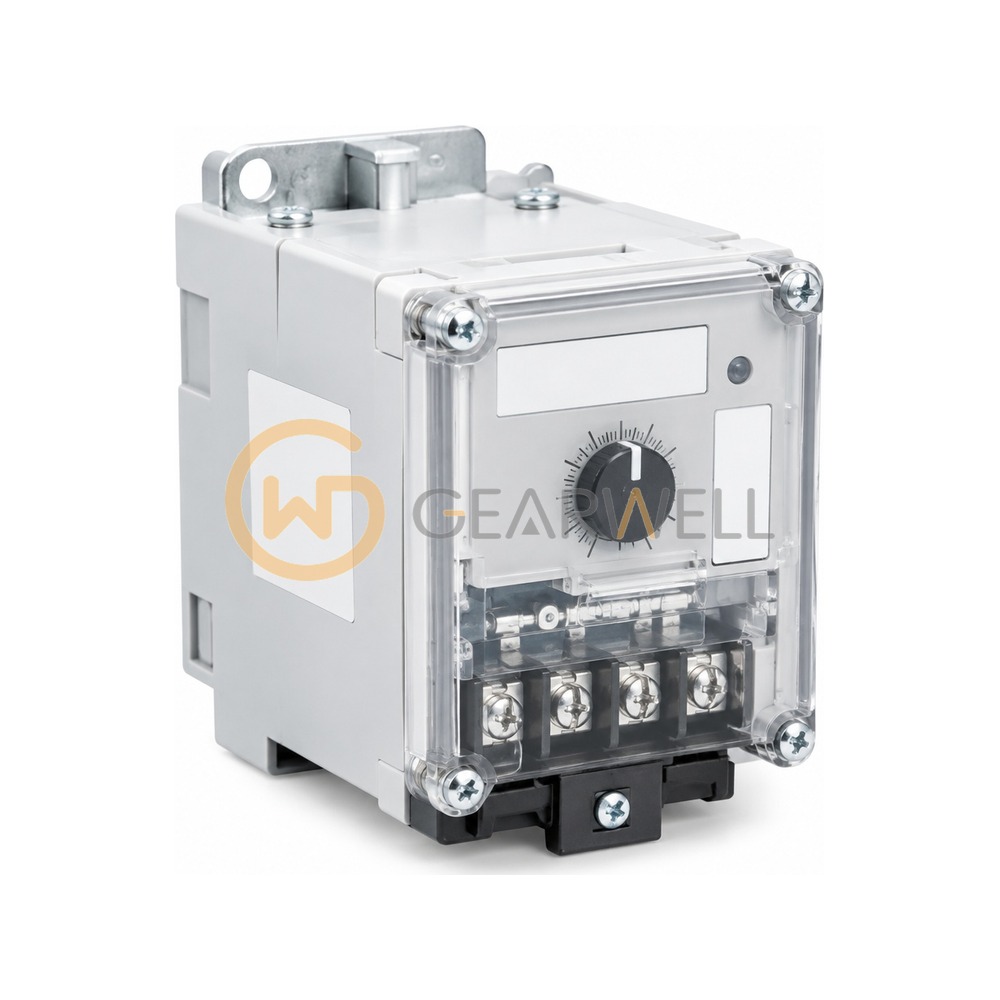

GE MVAJ23B1AB0757B MVAJ 23 Tripping Relay

Key specifications

Case: Size 2 or size 4 case (per type)
Status: Manufacturing of the MVAJ 11 to 34 range discontinued
Supply: High burden relays are for DC operation only
Brand note: MiDOS-range relay originally made by GEC Alstom / ALSTOM / AREVA T&D; now GE Vernova Grid Solutions
Relay type: MVAJ 23

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	GE MVAJ23B1AB0757B MVAJ 23 Tripping Relay
Brand	GE
Model	MVAJ23B1AB0757B
Category	Circuit Protection
Case	Size 2 or size 4 case (per type)
Status	Manufacturing of the MVAJ 11 to 34 range discontinued
Supply	High burden relays are for DC operation only
Brand note	MiDOS-range relay originally made by GEC Alstom / ALSTOM / AREVA T&D; now GE Vernova Grid Solutions
Relay type	MVAJ 23
Burden class	High burden, ESI 48-4 Class EB2
Operating time	Not greater than 10 ms at rated voltage
Order information	Relay type, voltage rating, number and combination of contacts are specified when ordering
Burden at operation	Instantaneous cut-off after mechanical latching
Code suffix "B1AB0757B"	as collected; not listed in an official model-number table (GE brochures give no order-code table; specs depend on the exact model)
Contact rating, break DC	100 W resistive / 50 W inductive, max. 5 A and 660 V
Contact rating, make and carry for 3 s	7500 W DC / 7500 VA AC, max. 30 A and 660 V
