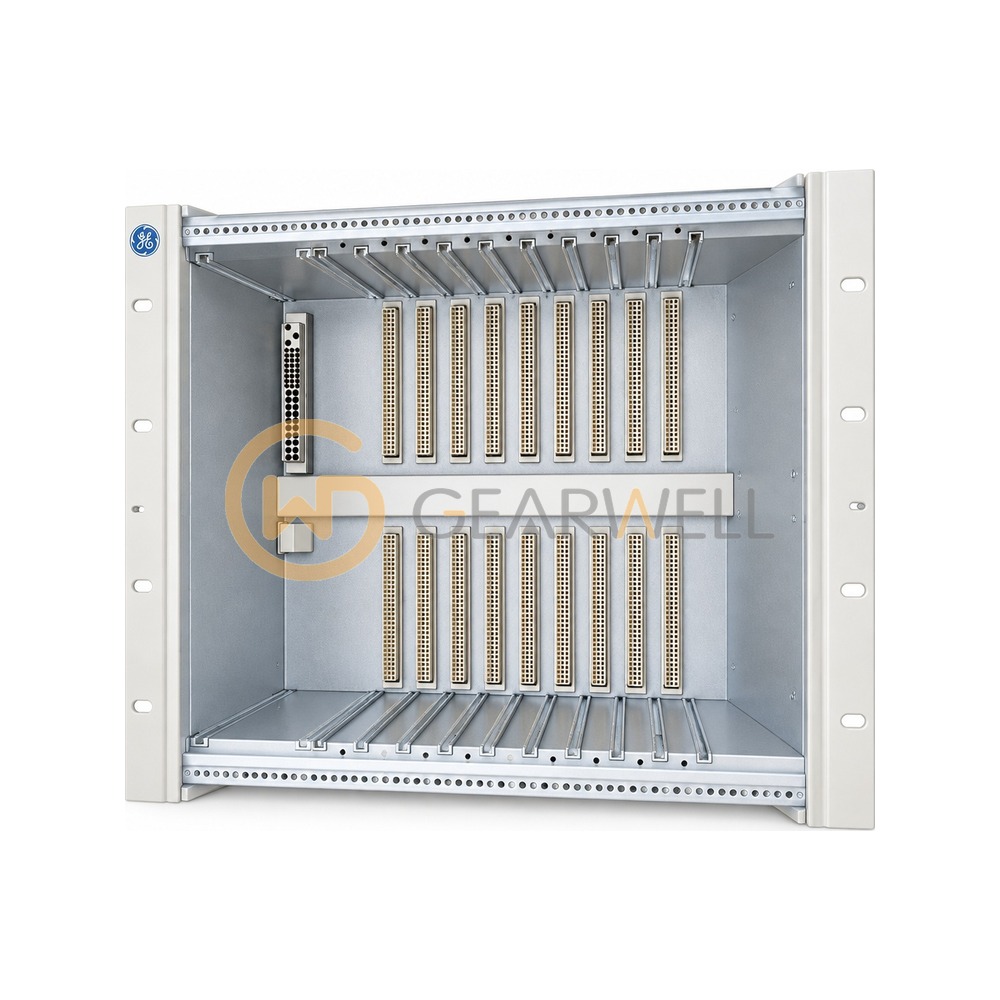

GE IC698CHS009A PACSystems RX7i 9-Slot Rear-Mount Rack
- Brand
- GE
- Model
- IC698CHS009A
- GEARWELL SKU
- GWP-000025877
- Category
- PLCs & I/O
Key specifications
- Slots
- 9 (slots 1-8 0.8 in wide, slot 9 1.6 in wide) plus power supply slot 0
- Evidence
- GE Fanuc GFK-2362 (hosted at qualitrol.com)
- Mounting
- rear mount
- Backplane
- VME64 with J2 connectors
- Code suffix "A"
- as collected; GE catalog-number version/revision suffix on base IC698CHS009 (GE documents use letter suffixes for hardware/firmware versions); not listed separately in the official model table
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC698CHS009A PACSystems RX7i 9-Slot Rear-Mount Rack |
|---|---|
| Brand | GE |
| Model | IC698CHS009A |
| Category | PLCs & I/O |
| Slots | 9 (slots 1-8 0.8 in wide, slot 9 1.6 in wide) plus power supply slot 0 |
| Evidence | GE Fanuc GFK-2362 (hosted at qualitrol.com) |
| Mounting | rear mount |
| Backplane | VME64 with J2 connectors |
| Code suffix "A" | as collected; GE catalog-number version/revision suffix on base IC698CHS009 (GE documents use letter suffixes for hardware/firmware versions); not listed separately in the official model table |
| Dimensions (H x W x D) | 283 x 320 x 190 mm |
| Max current (100 W supply) | +5 V 20 A; +12 V 2 A; -12 V 1 A |
| Max current (350 W supply) | +5 V 60 A; +12 V 12 A; -12 V 4 A |
