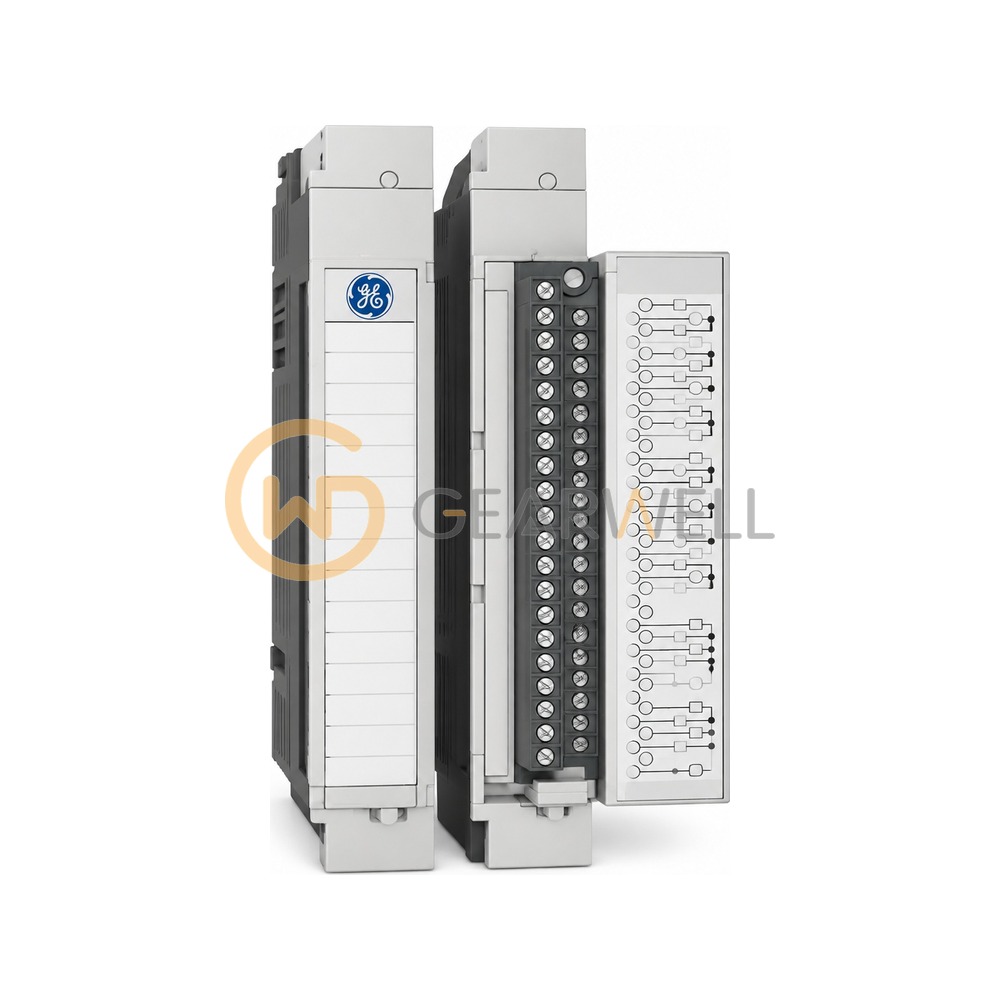

GE IC697MDL940 Series 90-70 16-Point Relay Output Module
- Brand
- GE
- Model
- IC697MDL940
- GEARWELL SKU
- GWP-000026610
- Category
- PLCs & I/O
Key specifications
- Outputs
- 16 (8 isolated Form C; 8 Form A in 2 groups of 4)
- Evidence
- GE Fanuc GFK-0384E (hosted at qualitrol.com)
- Isolation
- 1500 V output to backplane; 500 V between circuits/groups
- Protection
- 3 A fuse and RC snubber per output
- Response time
- 10 ms max on / 10 ms max off
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC697MDL940 Series 90-70 16-Point Relay Output Module |
|---|---|
| Brand | GE |
| Model | IC697MDL940 |
| Category | PLCs & I/O |
| Outputs | 16 (8 isolated Form C; 8 Form A in 2 groups of 4) |
| Evidence | GE Fanuc GFK-0384E (hosted at qualitrol.com) |
| Isolation | 1500 V output to backplane; 500 V between circuits/groups |
| Protection | 3 A fuse and RC snubber per output |
| Response time | 10 ms max on / 10 ms max off |
| Current from 5 V bus | 750 mA |
| Maximum load current | 16 A per module; 4 A per Form A group |
| Load current (resistive) | 2.0 A at 5-265 VAC or 5-30 VDC; 0.2 A at 31-125 VDC |
| Nominal voltage rating | 120/240 VAC or 5/24/125 VDC |
