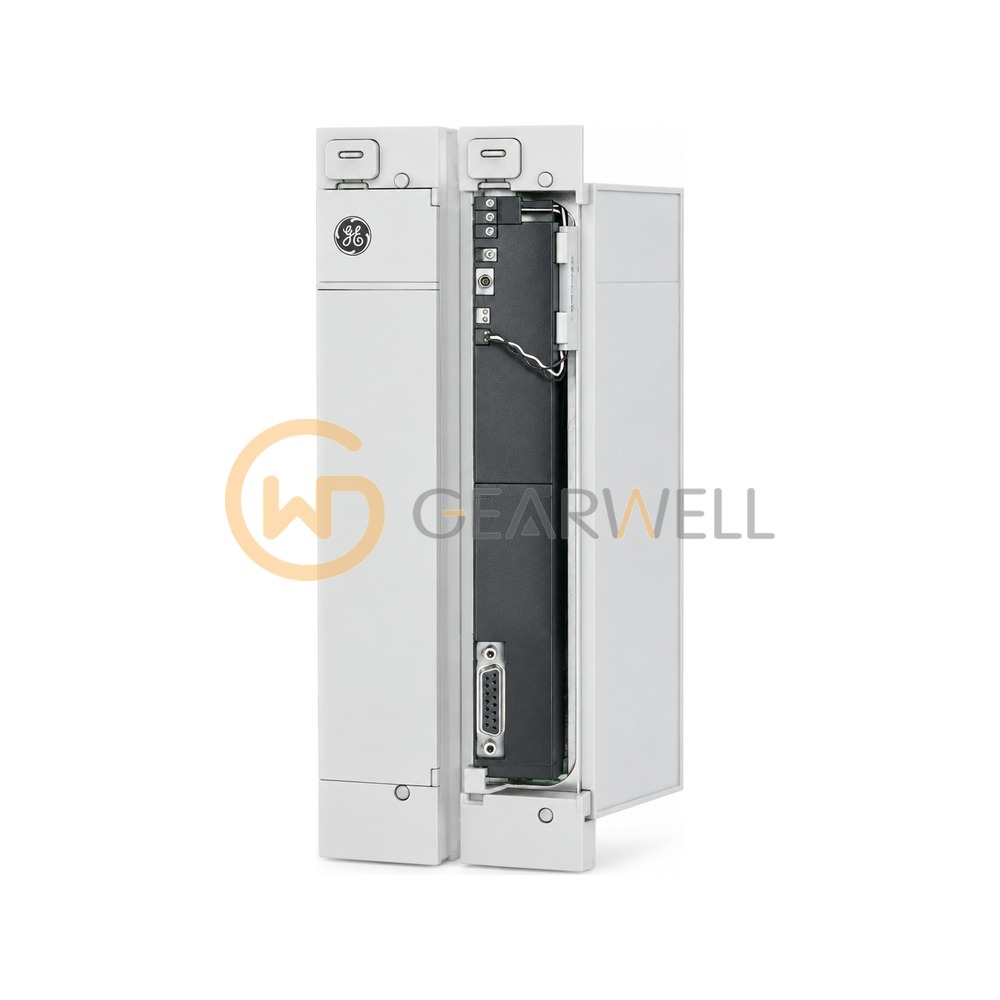

GE IC697CPM925 Series 90-70 64 MHz Floating Point CPU, 1 MB
- Brand
- GE
- Model
- IC697CPM925
- GEARWELL SKU
- GWP-000034331
- Category
- PLCs & I/O
Key specifications
- Evidence
- GE Fanuc GFK-1120D, Series 90-70 Data Sheet Manual GFK-0600F (hosted at qualitrol.com)
- Processor
- 64 MHz 80486DX2, 32-bit floating point
- Serial port
- RS-422/485 compatible programmer attachment
- I/O capacity
- 12K inputs and outputs (any mix), up to 8K analog
- Catalog number
- IC697CPM925
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC697CPM925 Series 90-70 64 MHz Floating Point CPU, 1 MB |
|---|---|
| Brand | GE |
| Model | IC697CPM925 |
| Category | PLCs & I/O |
| Evidence | GE Fanuc GFK-1120D, Series 90-70 Data Sheet Manual GFK-0600F (hosted at qualitrol.com) |
| Processor | 64 MHz 80486DX2, 32-bit floating point |
| Serial port | RS-422/485 compatible programmer attachment |
| I/O capacity | 12K inputs and outputs (any mix), up to 8K analog |
| Catalog number | IC697CPM925 |
| Boolean execution | 0.4 microseconds per boolean function |
| Current from 5 V bus | 3.3 A nominal |
| Battery-backed memory | 1 Mbyte |
| Operating temperature | 0 to 60 C with 70 CFM forced air; 0 to 40 C without |
