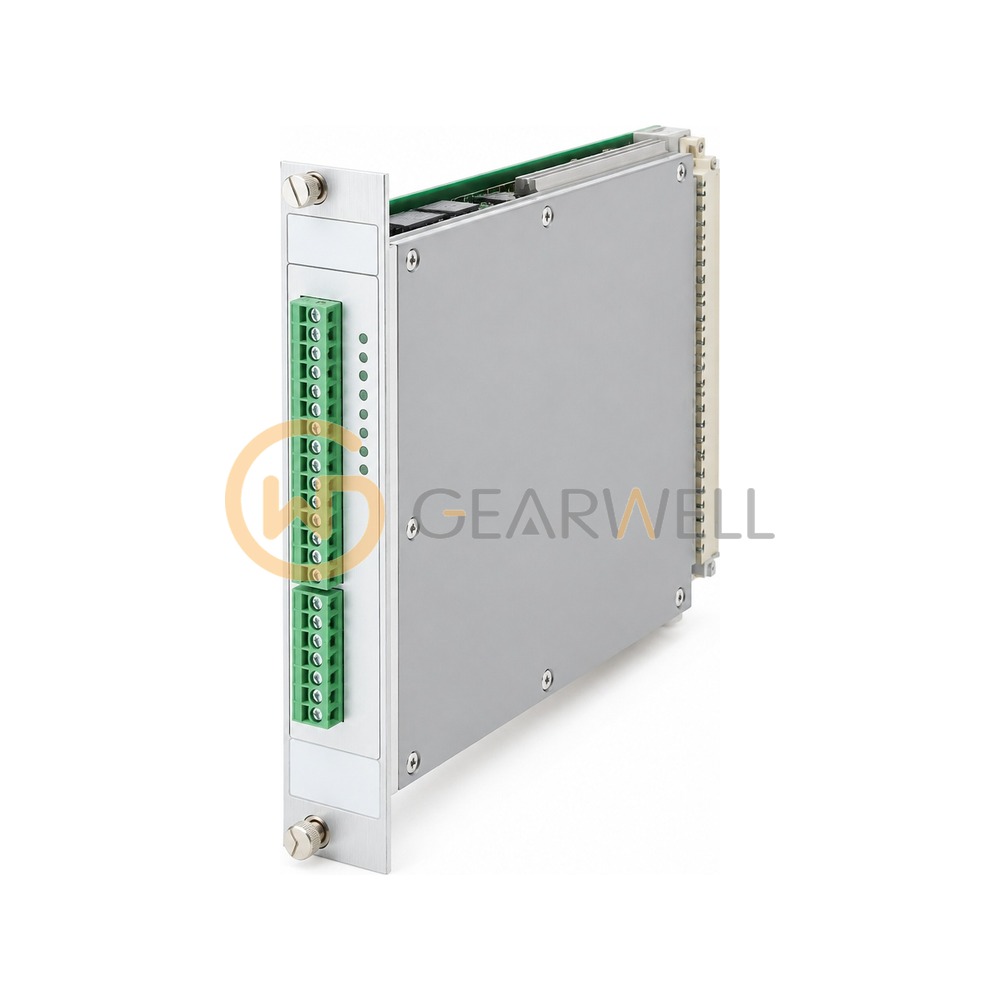

GE IC697ALG230 Series 90-70 8-Ch Analog Input Base Converter Module
- Brand
- GE
- Model
- IC697ALG230
- GEARWELL SKU
- GWP-000034324
- Category
- PLCs & I/O
Key specifications
- Inputs
- 8 differential, individually configurable for voltage or current
- Evidence
- GE Fanuc GFK-0385F, Series 90-70 Data Sheet Manual GFK-0600F (hosted at qualitrol.com)
- Expansion
- IC697ALG440 current / IC697ALG441 voltage expanders, up to 120 inputs total
- Current range
- 4 to 20 mA
- Voltage range
- -10 to +10 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC697ALG230 Series 90-70 8-Ch Analog Input Base Converter Module |
|---|---|
| Brand | GE |
| Model | IC697ALG230 |
| Category | PLCs & I/O |
| Inputs | 8 differential, individually configurable for voltage or current |
| Evidence | GE Fanuc GFK-0385F, Series 90-70 Data Sheet Manual GFK-0600F (hosted at qualitrol.com) |
| Expansion | IC697ALG440 current / IC697ALG441 voltage expanders, up to 120 inputs total |
| Current range | 4 to 20 mA |
| Voltage range | -10 to +10 V |
| Catalog number | IC697ALG230 |
| Backplane power | +5 V at 0.8 A (4 W) maximum |
| Current input impedance | 250 ohm, 0.1% precision shunt |
| Resolution (default scaling) | 312.5 uV per LSB (voltage); 0.5 uA per LSB (current) |
