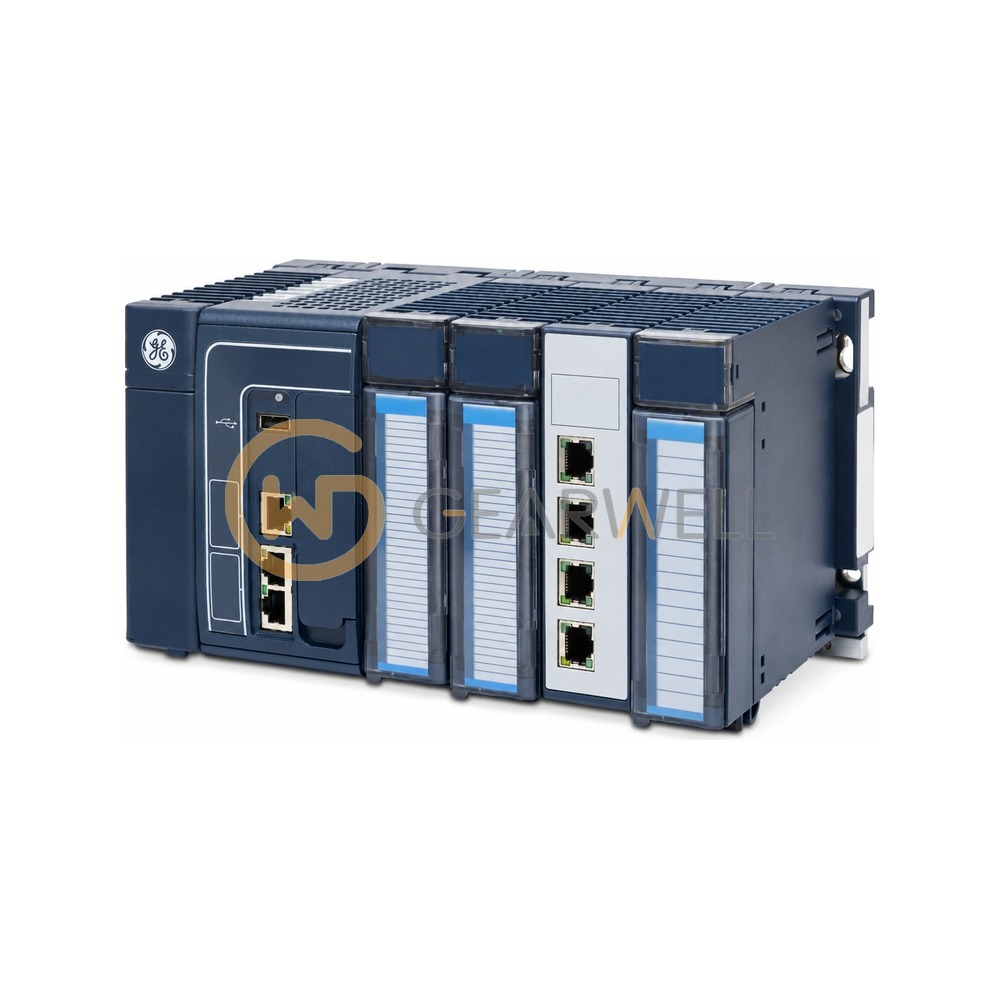

GE IC694MDL930 PACSystems RX3i Isolated Relay Output Module
- Brand
- GE
- Model
- IC694MDL930
- GEARWELL SKU
- GWP-000025803
- Category
- PLCs & I/O
Key specifications
- Outputs
- 8 isolated normally-open relay outputs
- Evidence
- GE/Emerson GFK-2314V PACSystems RX3i System Manual (hosted at download.astor.com.pl), section 7.18
- Maximum load
- 4 A resistive per output, 2 A pilot duty; 20 A per module (UL)
- Minimum load
- 10 mA
- Response time
- 15 ms maximum on/off
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC694MDL930 PACSystems RX3i Isolated Relay Output Module |
|---|---|
| Brand | GE |
| Model | IC694MDL930 |
| Category | PLCs & I/O |
| Outputs | 8 isolated normally-open relay outputs |
| Evidence | GE/Emerson GFK-2314V PACSystems RX3i System Manual (hosted at download.astor.com.pl), section 7.18 |
| Maximum load | 4 A resistive per output, 2 A pilot duty; 20 A per module (UL) |
| Minimum load | 10 mA |
| Response time | 15 ms maximum on/off |
| Catalog number | IC694MDL930 |
| Operating voltage | 5 to 30 Vdc; 5 to 250 Vac 50/60 Hz |
| Power consumption | 6 mA from 5 Vdc bus, 70 mA from relay 24 Vdc bus (all outputs on) |
