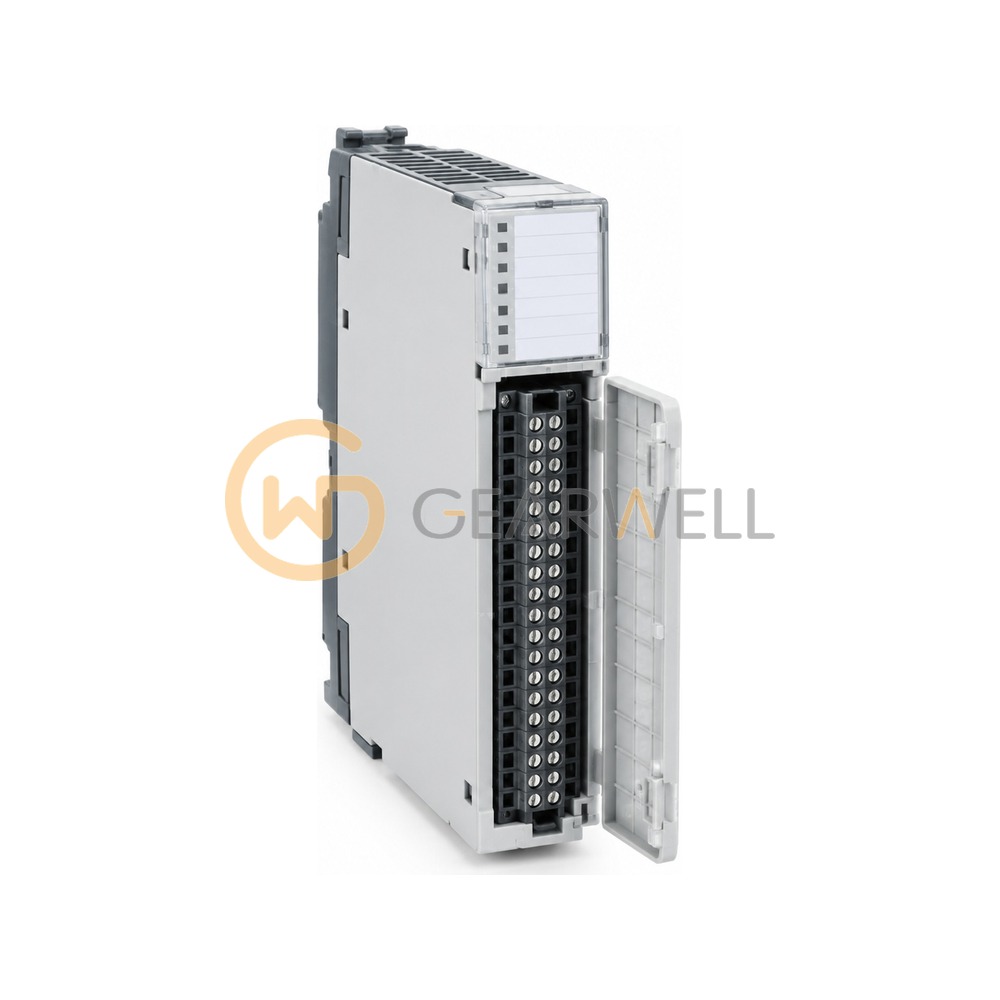

GE IC693MDR390 Series 90-30 24 VDC Input / Relay Output Module
- Brand
- GE
- Model
- IC693MDR390
- GEARWELL SKU
- GWP-000034315
- Category
- PLCs & I/O
Key specifications
- Inputs
- 8, 24 VDC positive/negative logic (one group)
- Outputs
- 8 normally open relay (two groups of 4)
- Evidence
- GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications page (maker document hosted at qualitrol.com)
- Isolation
- 1500 V RMS field to logic
- Output rating
- 2 A per output
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC693MDR390 Series 90-30 24 VDC Input / Relay Output Module |
|---|---|
| Brand | GE |
| Model | IC693MDR390 |
| Category | PLCs & I/O |
| Inputs | 8, 24 VDC positive/negative logic (one group) |
| Outputs | 8 normally open relay (two groups of 4) |
| Evidence | GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications page (maker document hosted at qualitrol.com) |
| Isolation | 1500 V RMS field to logic |
| Output rating | 2 A per output |
| Catalog number | IC693MDR390 |
| Input voltage range | -30 to +32 VDC |
| Output operating voltage | 5-30 VDC; 5-250 VAC 50/60 Hz |
