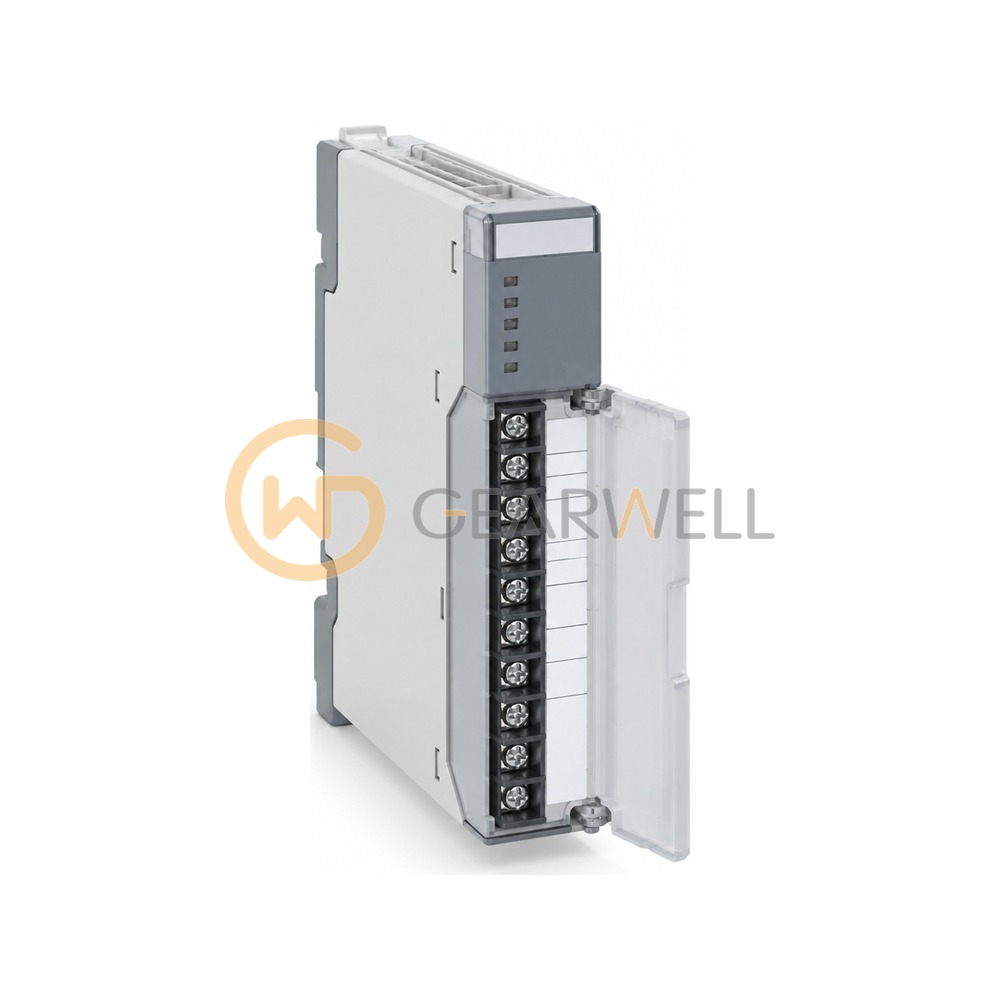

GE IC693MDL930 Series 90-30 4 A Isolated Relay Output Module
- Brand
- GE
- Model
- IC693MDL930
- GEARWELL SKU
- GWP-000034314
- Category
- PLCs & I/O
Key specifications
- Outputs
- 8 isolated, normally open relay
- Evidence
- GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications page (maker document hosted at qualitrol.com)
- Isolation
- 1500 V field to logic; 500 V between groups
- Maximum load
- 4 A resistive per output; 2 A pilot duty
- Minimum load
- 10 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC693MDL930 Series 90-30 4 A Isolated Relay Output Module |
|---|---|
| Brand | GE |
| Model | IC693MDL930 |
| Category | PLCs & I/O |
| Outputs | 8 isolated, normally open relay |
| Evidence | GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications page (maker document hosted at qualitrol.com) |
| Isolation | 1500 V field to logic; 500 V between groups |
| Maximum load | 4 A resistive per output; 2 A pilot duty |
| Minimum load | 10 mA |
| Response time | 15 ms max on/off |
| Catalog number | IC693MDL930 |
| Backplane power | 6 mA from 5 V bus; 70 mA from relay 24 V bus |
| Operating voltage | 5 to 30 VDC; 5 to 250 VAC 50/60 Hz |
