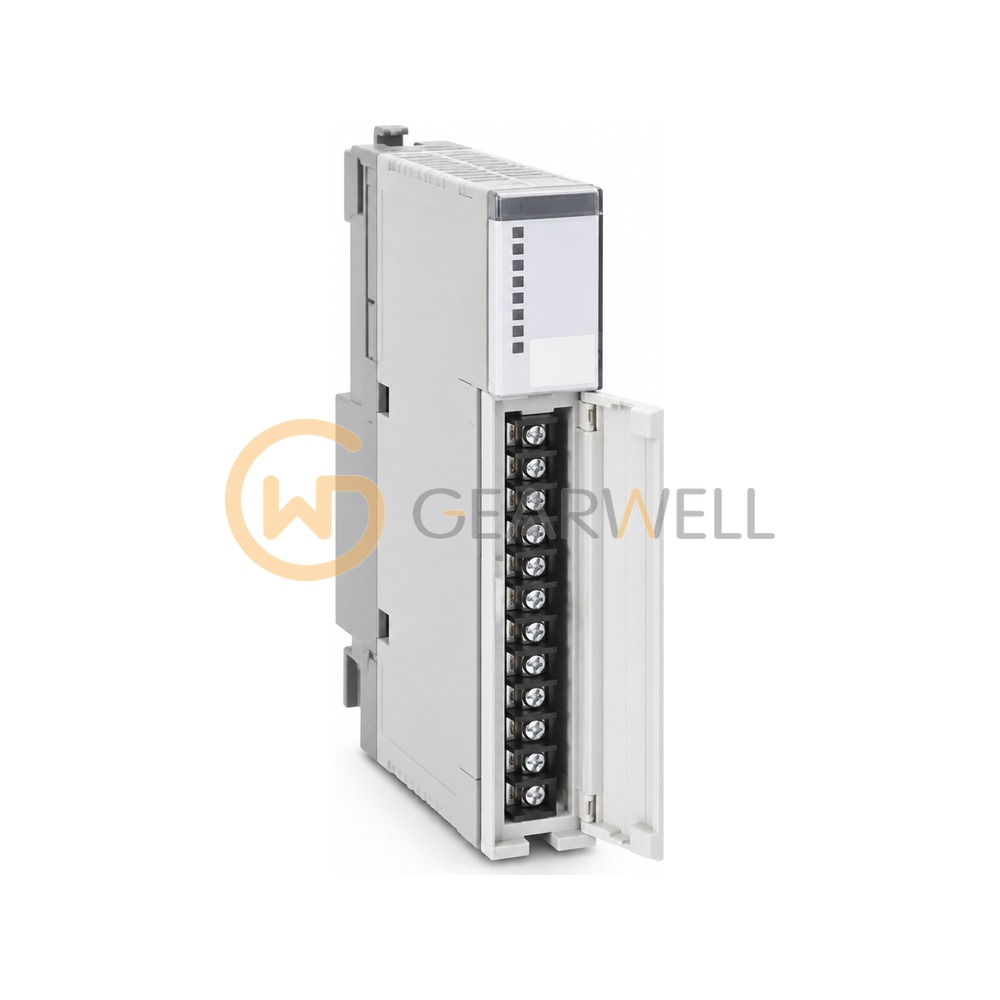

GE IC693MDL646 Series 90-30 24 VDC 16-Point Input Module
- Brand
- GE
- Model
- IC693MDL646
- GEARWELL SKU
- GWP-000034310
- Category
- PLCs & I/O
Key specifications
- Inputs
- 16 (one group, single common)
- Evidence
- GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications page (maker document hosted at qualitrol.com)
- Isolation
- 1500 V field to logic
- Input current
- 7 mA typical at rated voltage
- Rated voltage
- 24 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC693MDL646 Series 90-30 24 VDC 16-Point Input Module |
|---|---|
| Brand | GE |
| Model | IC693MDL646 |
| Category | PLCs & I/O |
| Inputs | 16 (one group, single common) |
| Evidence | GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications page (maker document hosted at qualitrol.com) |
| Isolation | 1500 V field to logic |
| Input current | 7 mA typical at rated voltage |
| Rated voltage | 24 VDC |
| Catalog number | IC693MDL646 |
| Backplane power | 80 mA from 5 V bus; 125 mA from isolated 24 V |
| On/off response | 1 ms typical |
| Input voltage range | 0 to +30 VDC |
