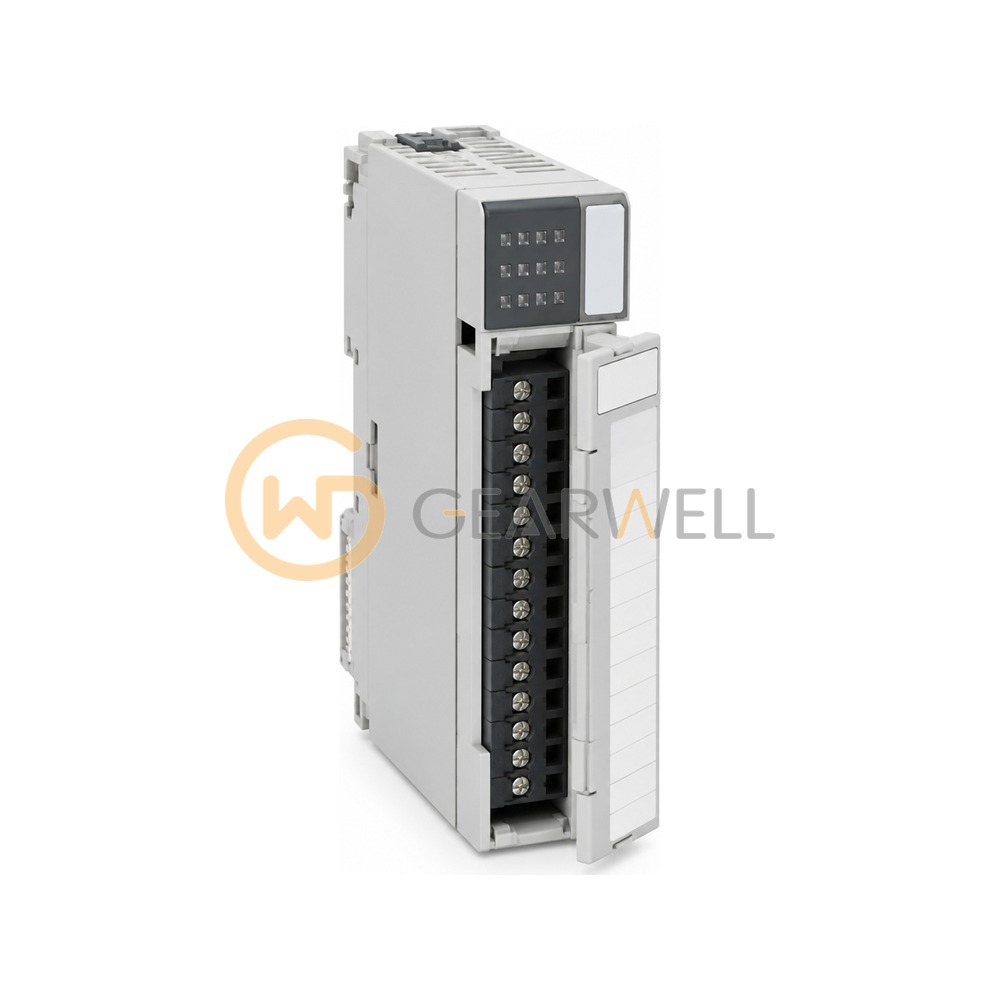

GE IC693MDL231 Series 90-30 240 VAC Isolated Input Module 8 Point
- Brand
- GE
- Model
- IC693MDL231
- GEARWELL SKU
- GWP-000026555
- Category
- PLCs & I/O
Key specifications
- Evidence
- GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications, IC693MDL231 pages (hosted at qualitrol.com)
- Isolation
- 1500 V RMS field to logic; 500 V RMS between inputs
- Input current
- 15 mA typical at rated voltage
- Rated voltage
- 240 VAC, 50/60 Hz
- Response time
- 30 ms on / 45 ms off maximum
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | GE IC693MDL231 Series 90-30 240 VAC Isolated Input Module 8 Point |
|---|---|
| Brand | GE |
| Model | IC693MDL231 |
| Category | PLCs & I/O |
| Evidence | GE Fanuc GFK-0898F Series 90-30 PLC I/O Module Specifications, IC693MDL231 pages (hosted at qualitrol.com) |
| Isolation | 1500 V RMS field to logic; 500 V RMS between inputs |
| Input current | 15 mA typical at rated voltage |
| Rated voltage | 240 VAC, 50/60 Hz |
| Response time | 30 ms on / 45 ms off maximum |
| Catalog number | IC693MDL231 |
| On-state voltage | 148 to 264 VAC |
| Inputs per module | 8 (each with a separate common) |
| Power consumption | 60 mA from 5 V backplane bus (all inputs on) |
| Input voltage range | 0 to 264 VAC, 50/60 Hz |
